Brake Pad: Testing and Inspection

DISC BRAKE PADS (Inspect for wear)
Check for fluid contamination and wear. Replace complete set of pads if defective.

CAUTION: The pads for the right and left wheels should always be replaced at the same time. Never "split" or intermix brake pad sets.
All four pads must be replaced as a complete set.

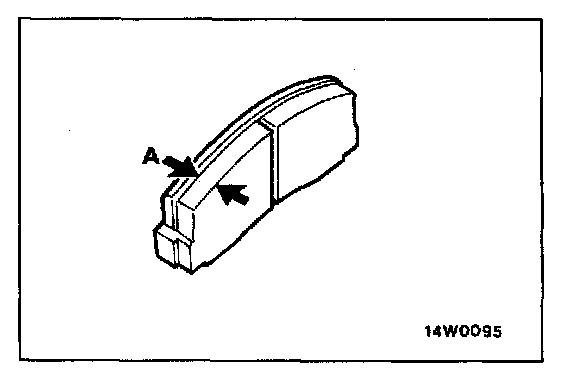

Thickness of lining (A)
Minimum limit: 2.0 mm (.08 in.)
