Front Seat

FRONT SEAT

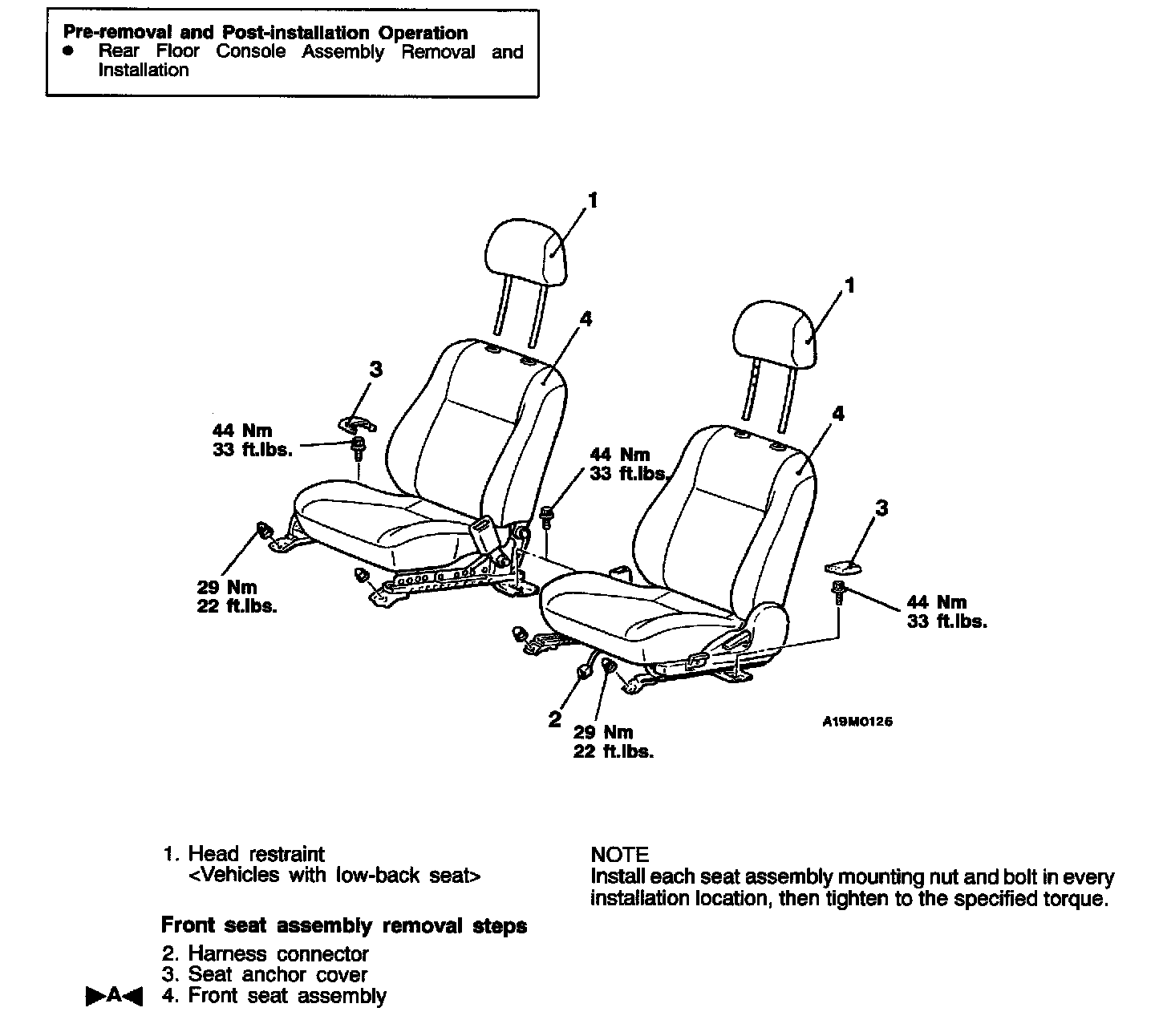

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT




>A< FRONT SEAT ASSEMBLY INSTALLATION

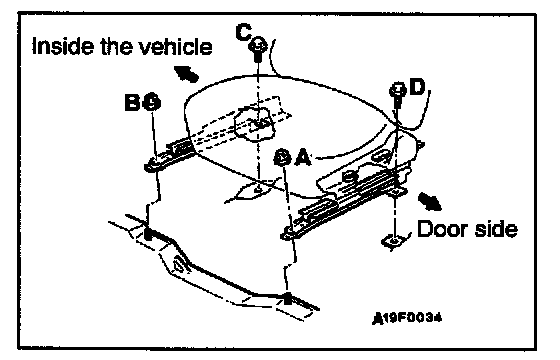

Tighten the front seat mounting bolts in the order A, B, C, and D.




DISASSEMBLY AND REASSEMBLY
