System Specifications

MANUAL TRANSAXLE

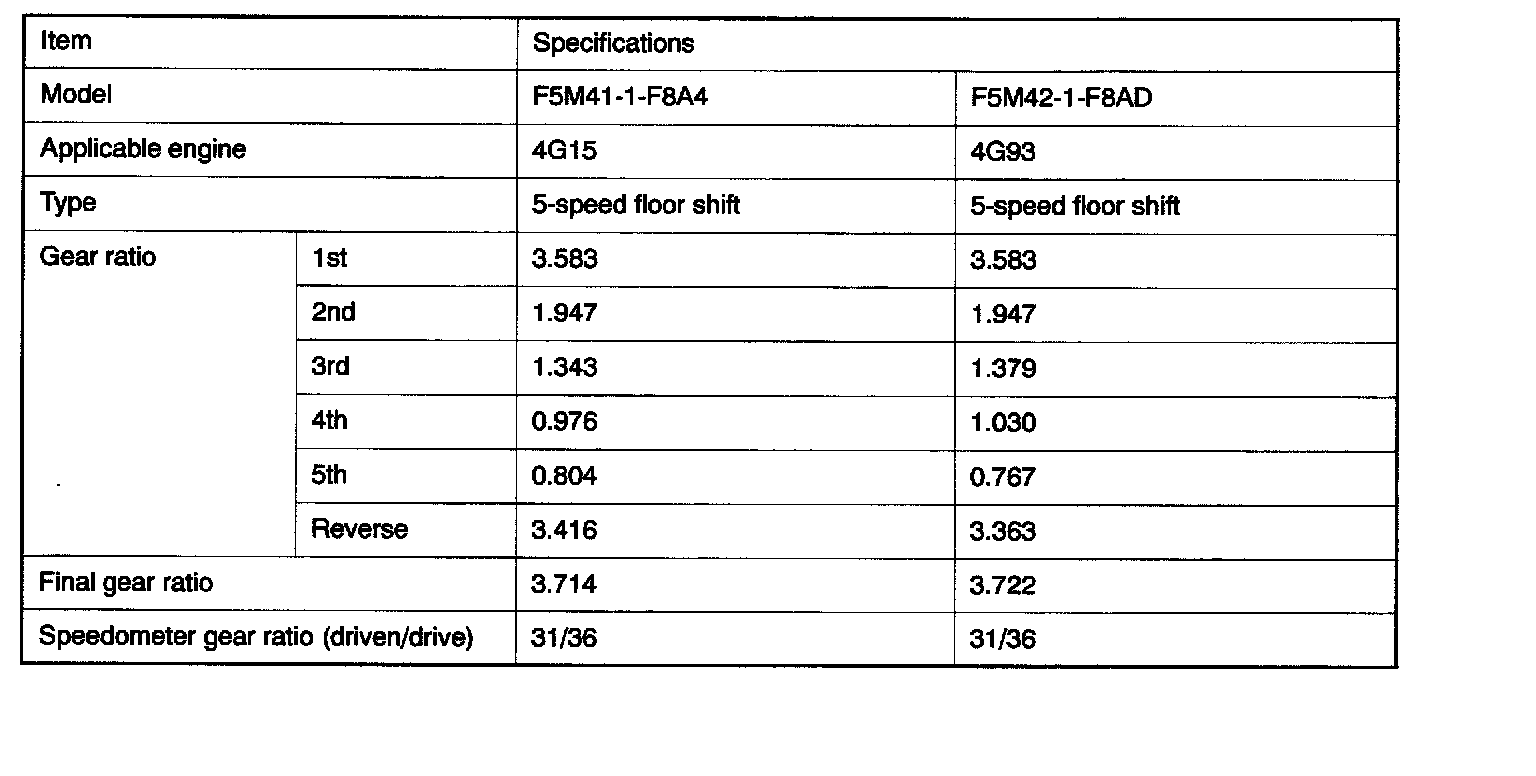

GENERAL SPECIFICATIONS

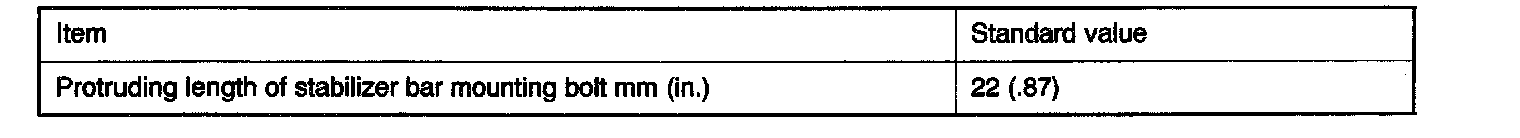

SERVICE SPECIFICATIONS

MANUAL TRANSAXLE OVERHAUL

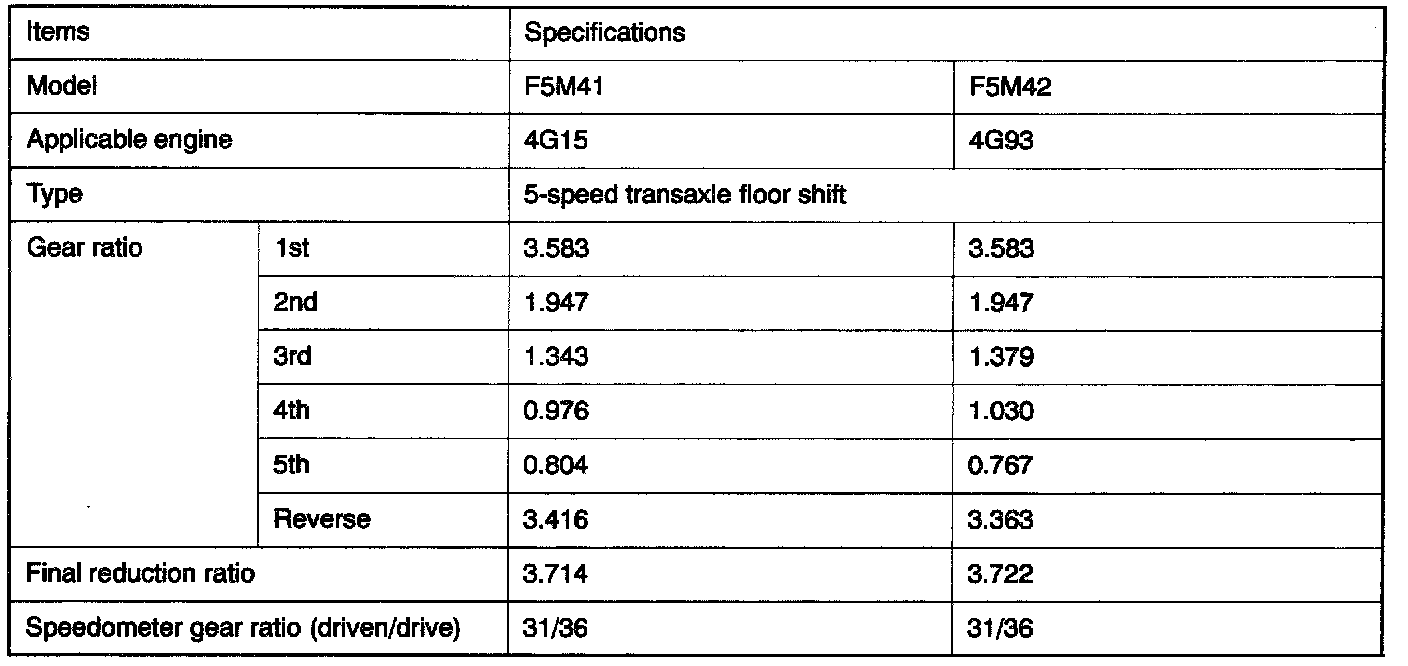

GENERAL SPECIFICATIONS

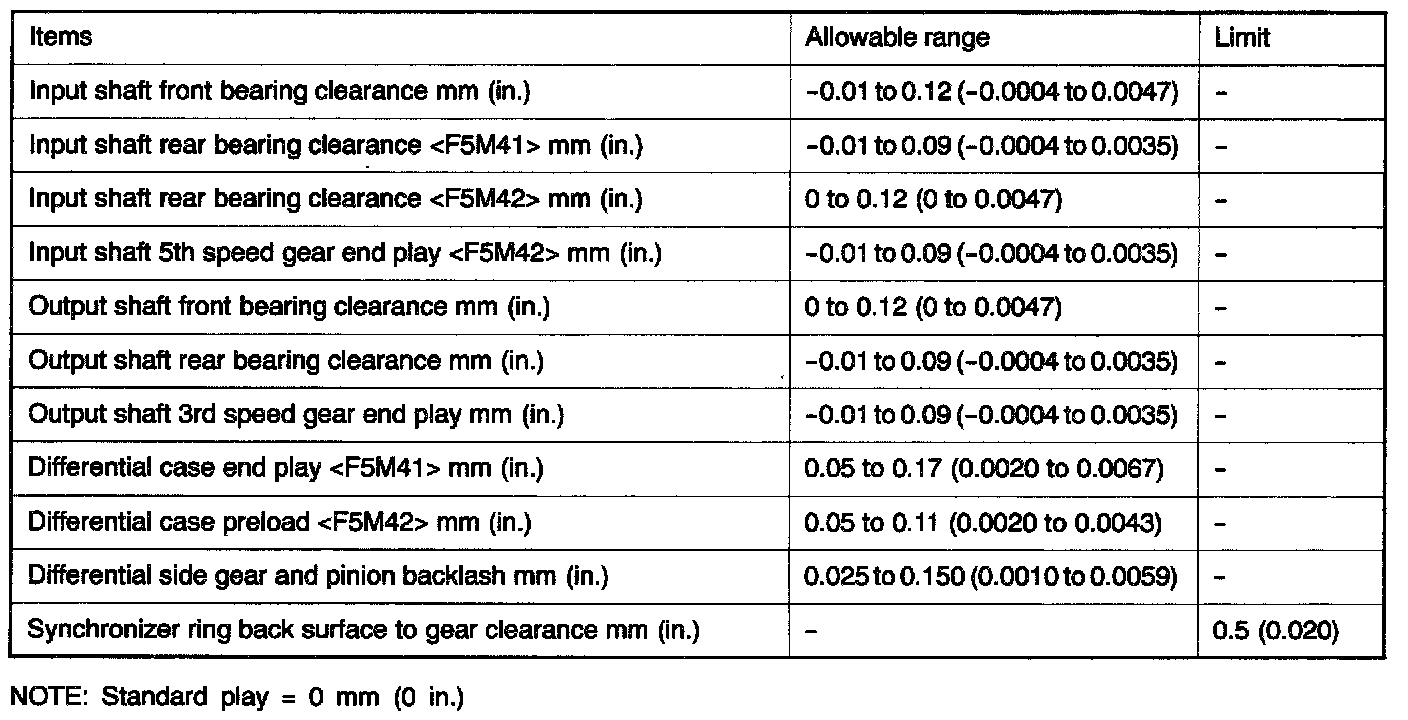

SERVICE SPECIFICATIONS

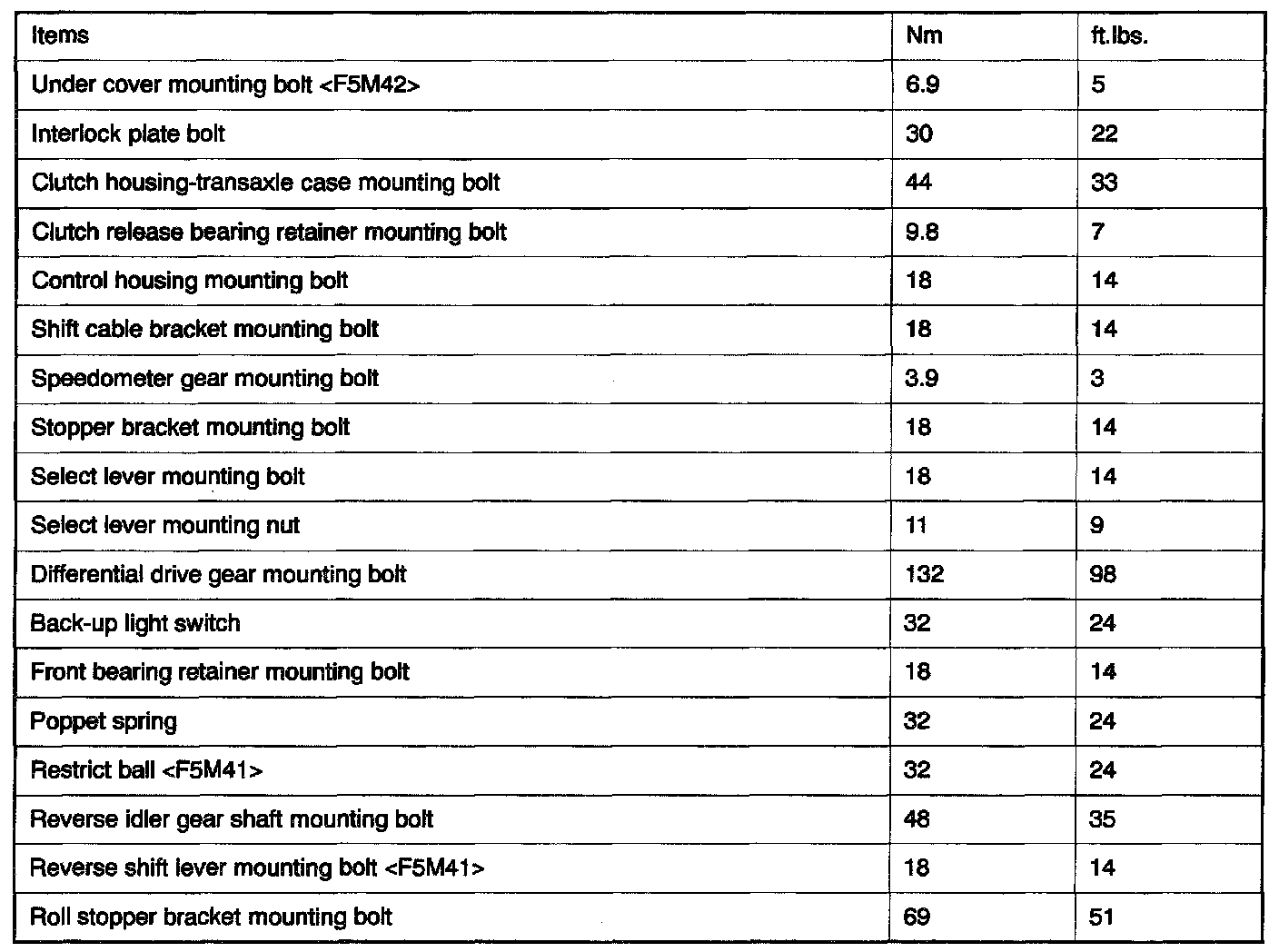

TORQUE SPECIFICATIONS

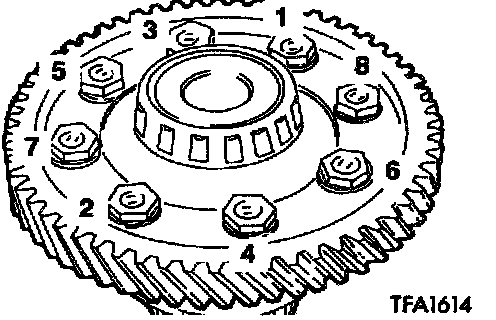

BOLT SEQUENCE

DIFFERENTIAL DRIVE GEAR
