System Specifications

AUTOMATIC TRANSAXLE

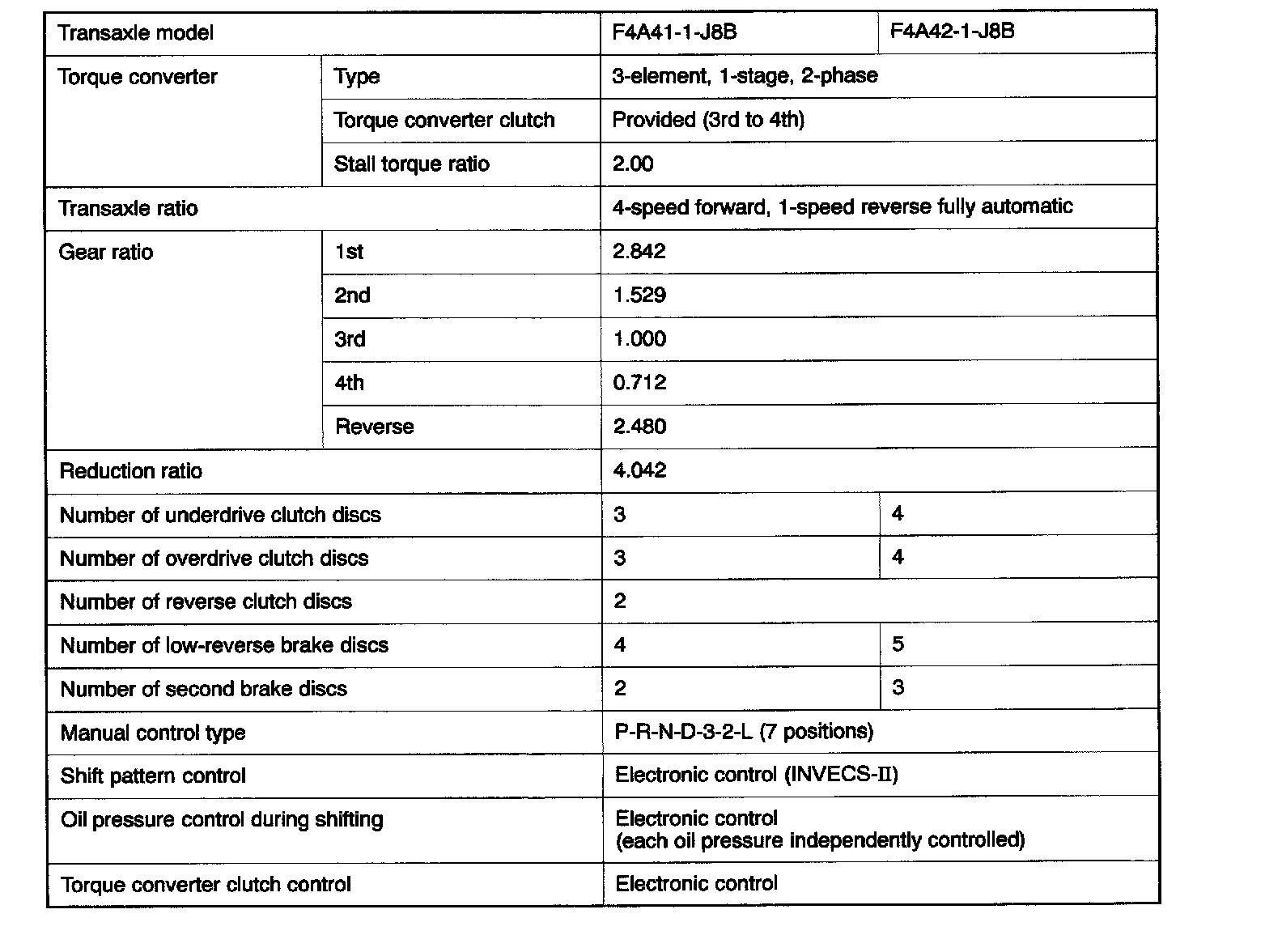

GENERAL SPECIFICATIONS

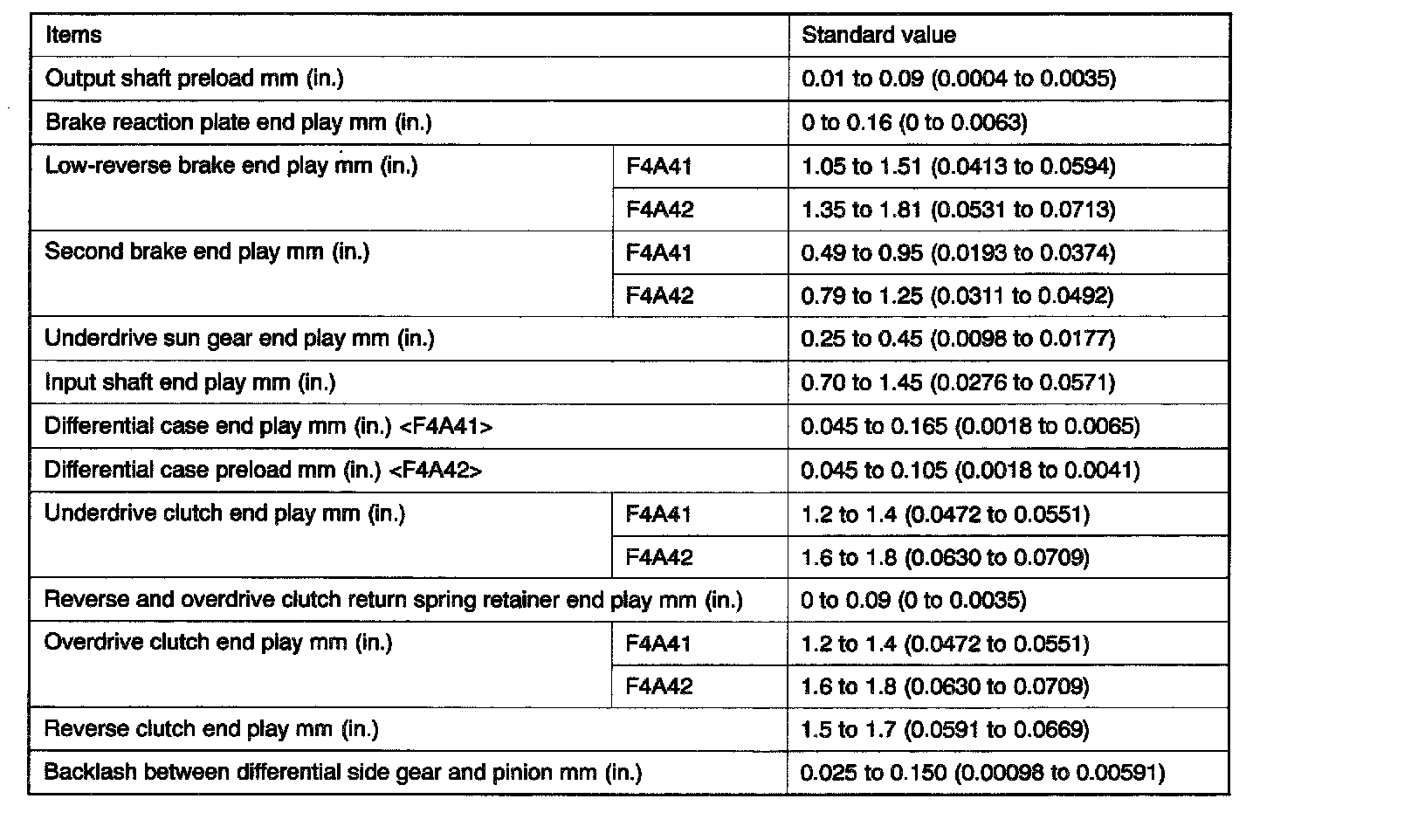

SERVICE SPECIFICATIONS

AUTOMATIC TRANSAXLE OVERHAUL

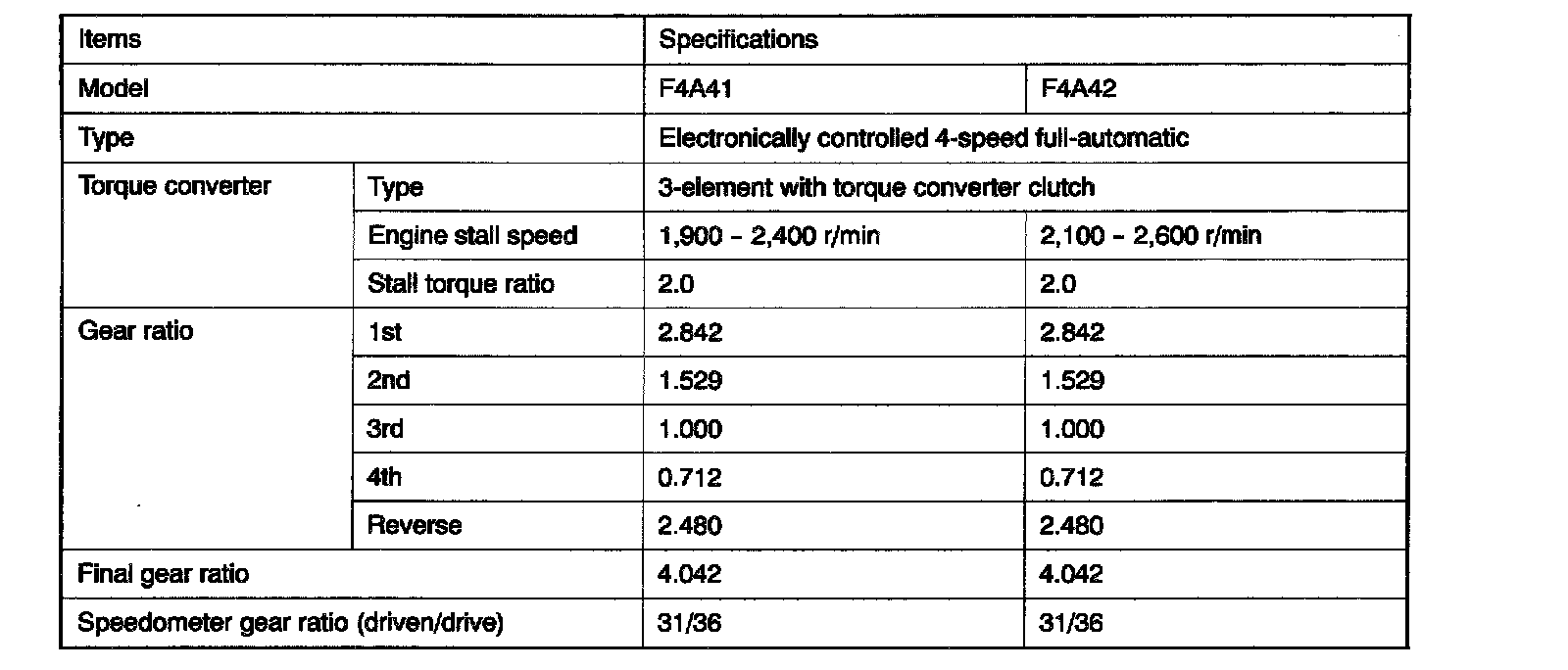

GENERAL SPECIFICATIONS

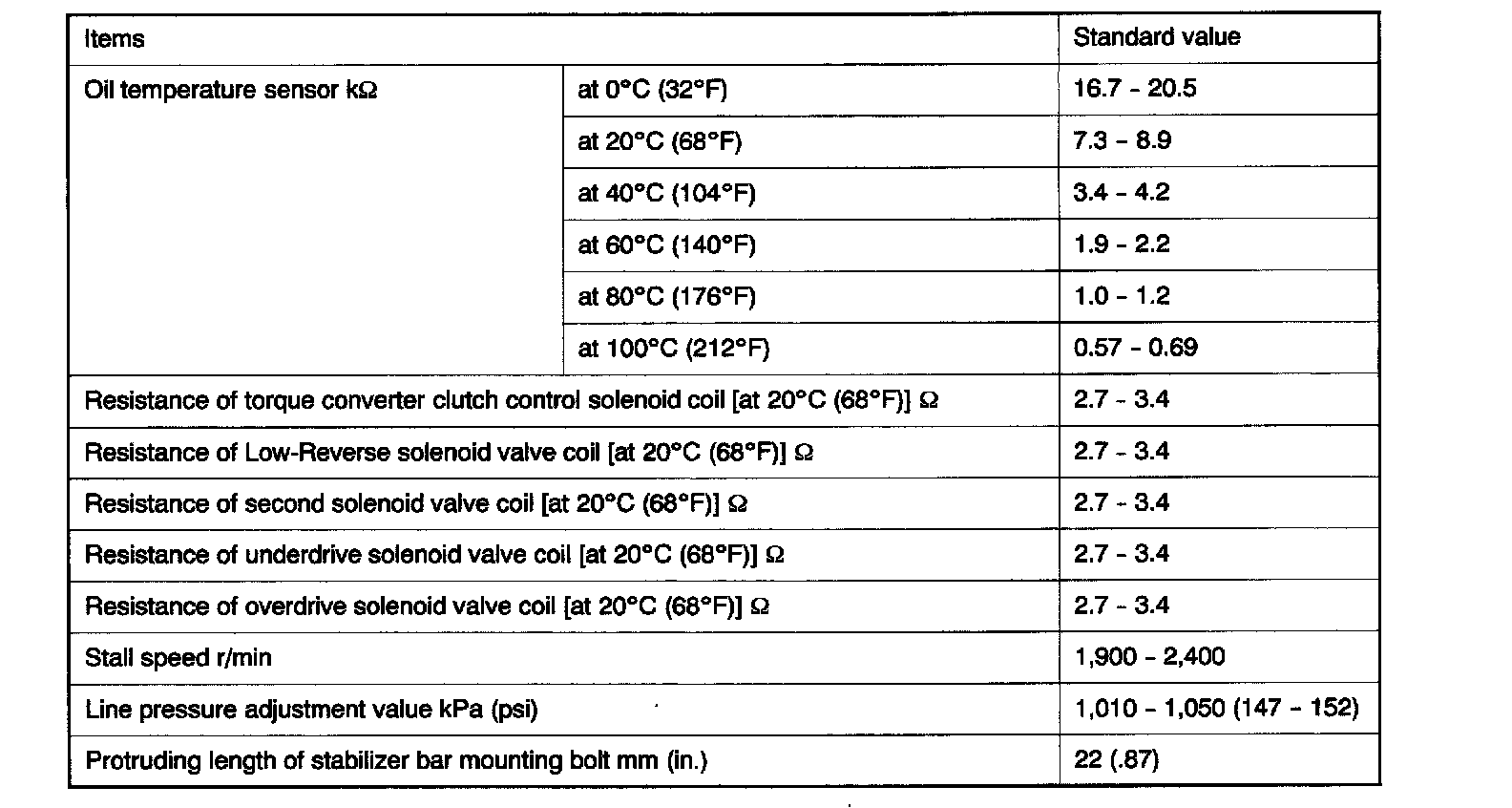

SERVICE SPECIFICATIONS

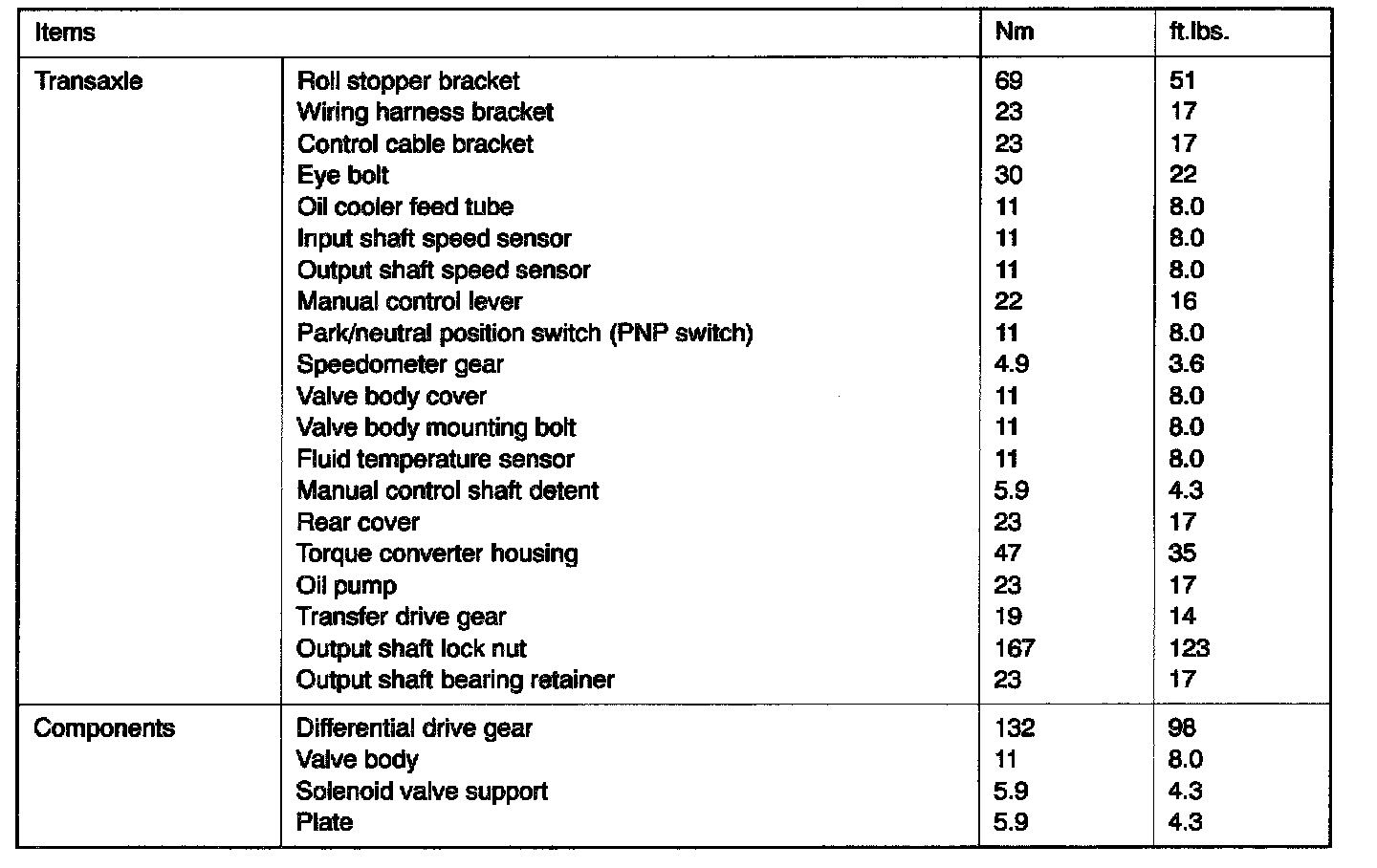

TORQUE SPECIFICATIONS

BOLT SEQUENCE

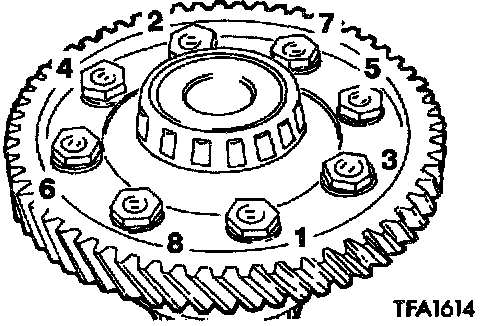

DIFFERENTIAL DRIVE GEAR

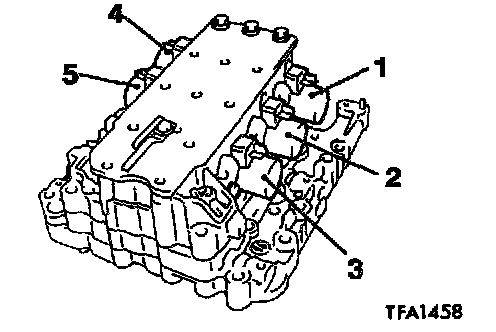

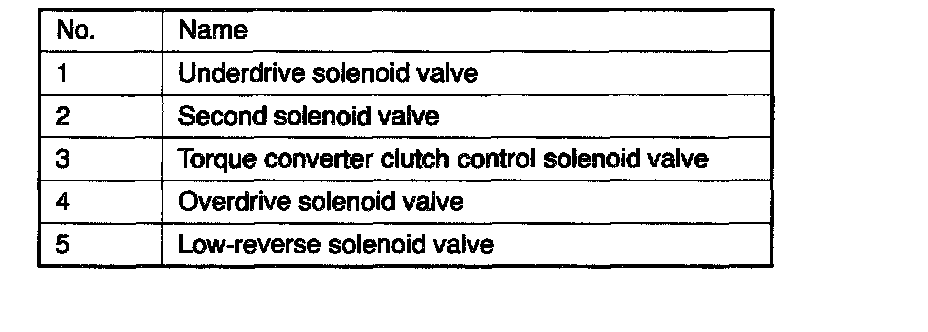

SOLENOID VALVES
