Mirage Coupe DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>

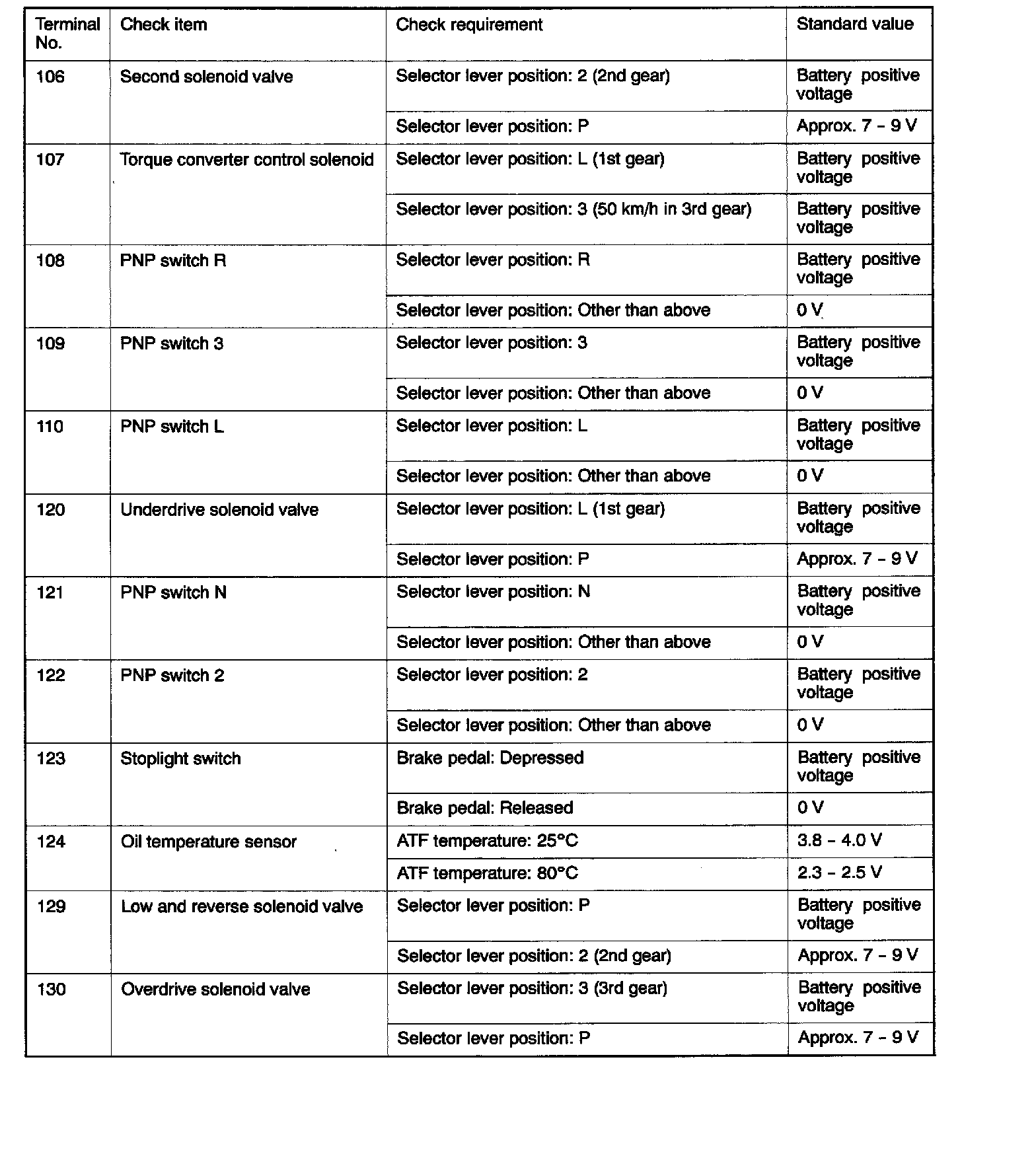

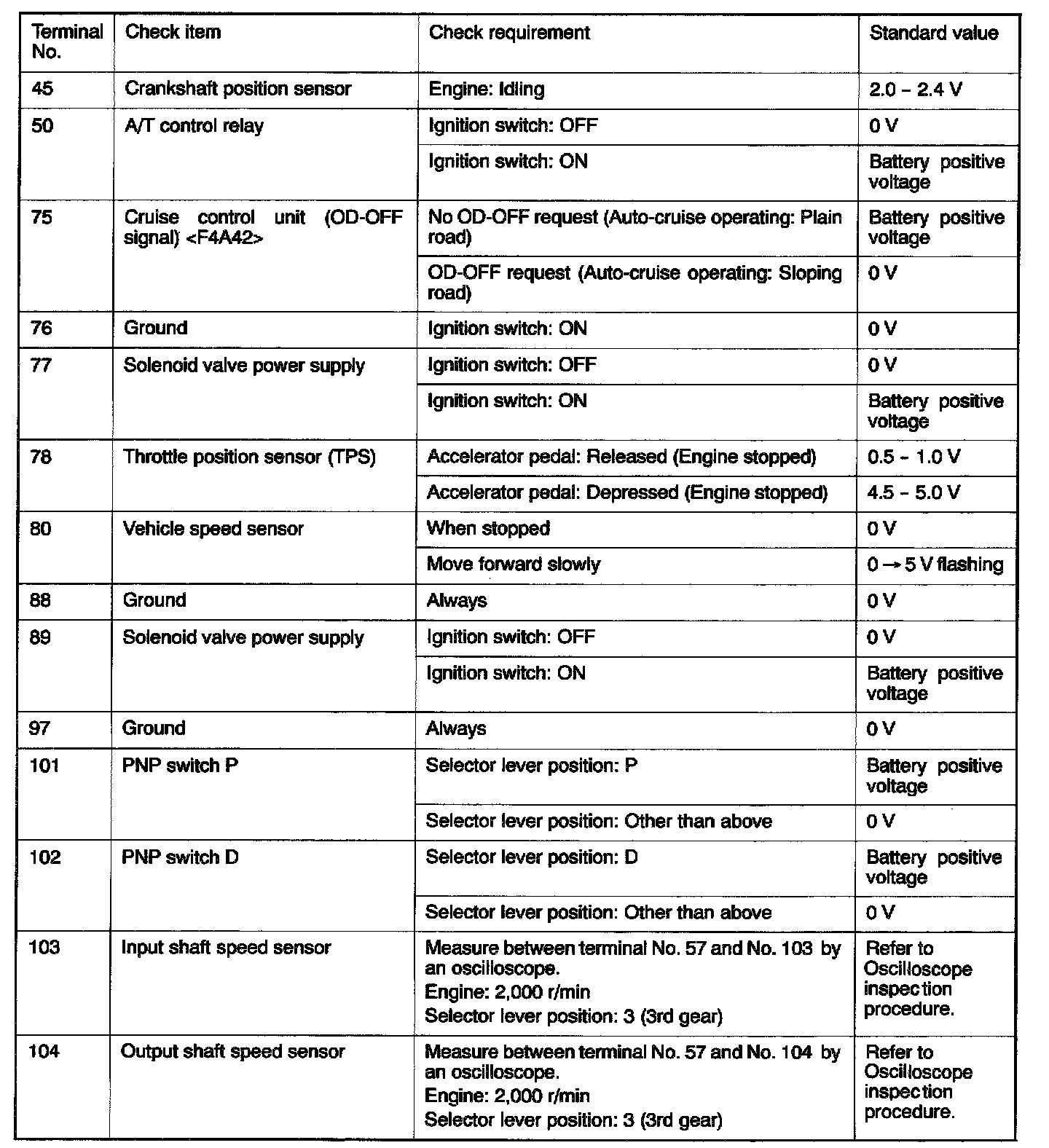

Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

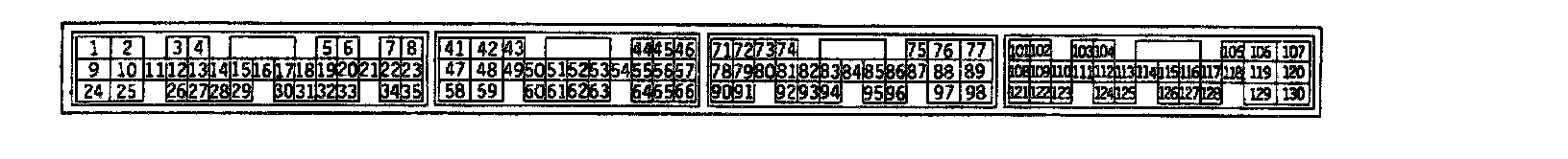

CHECK AT
TCM
TERMINALS
