Engine Control Module: Testing and Inspection

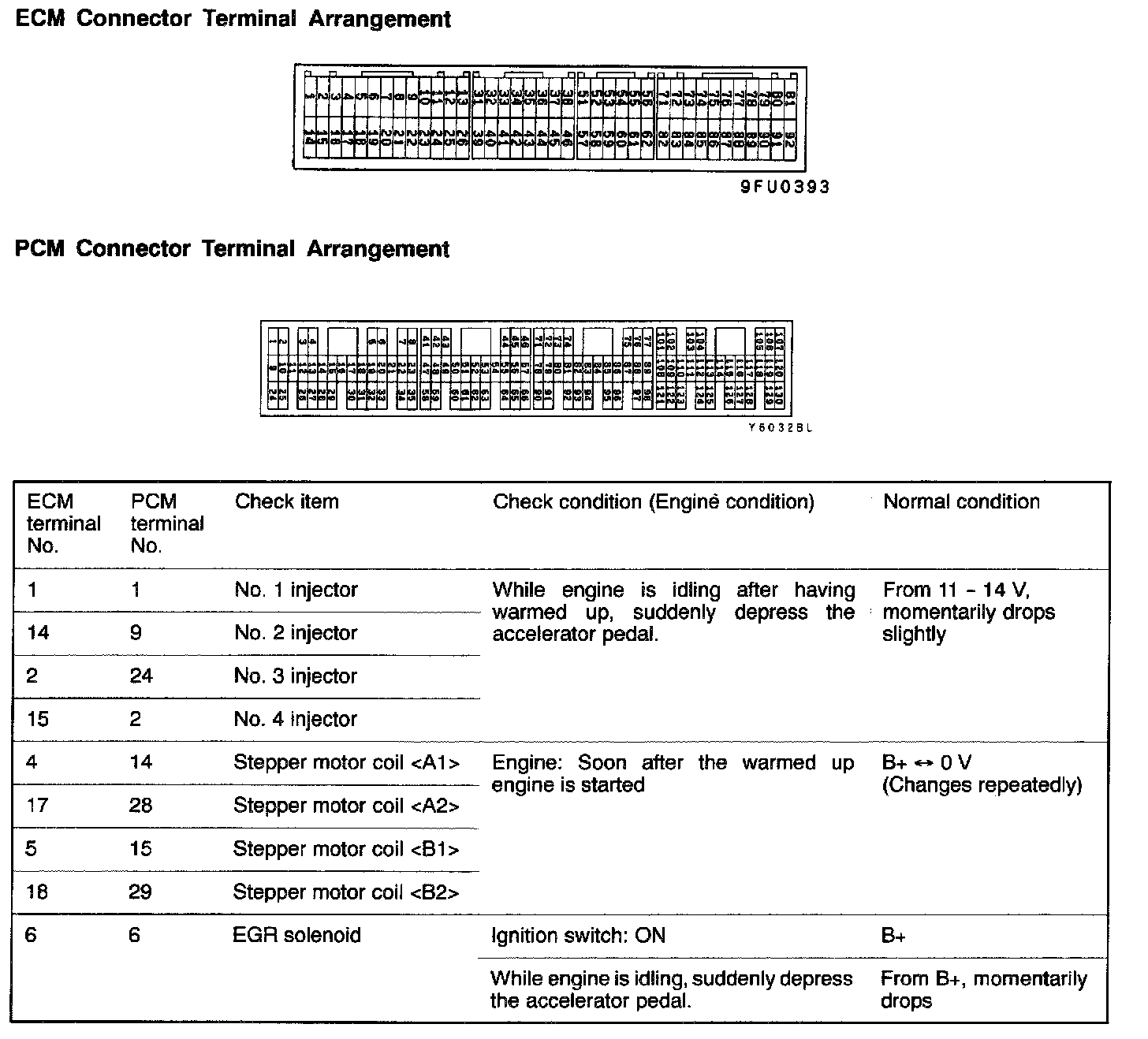

ECM / PCM Connector Terminal Arrangement And Terminals Part 1:

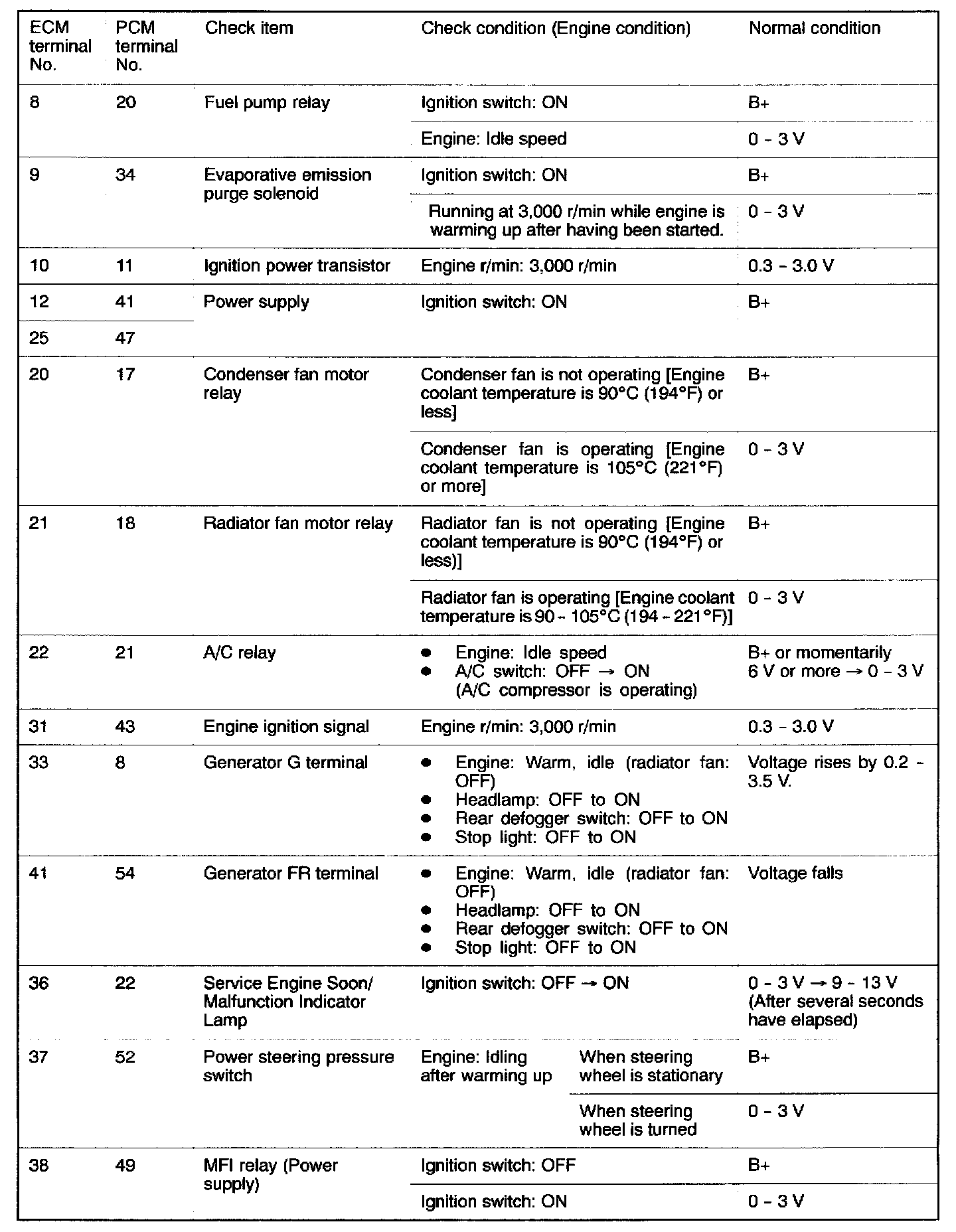

Terminals Part 2:

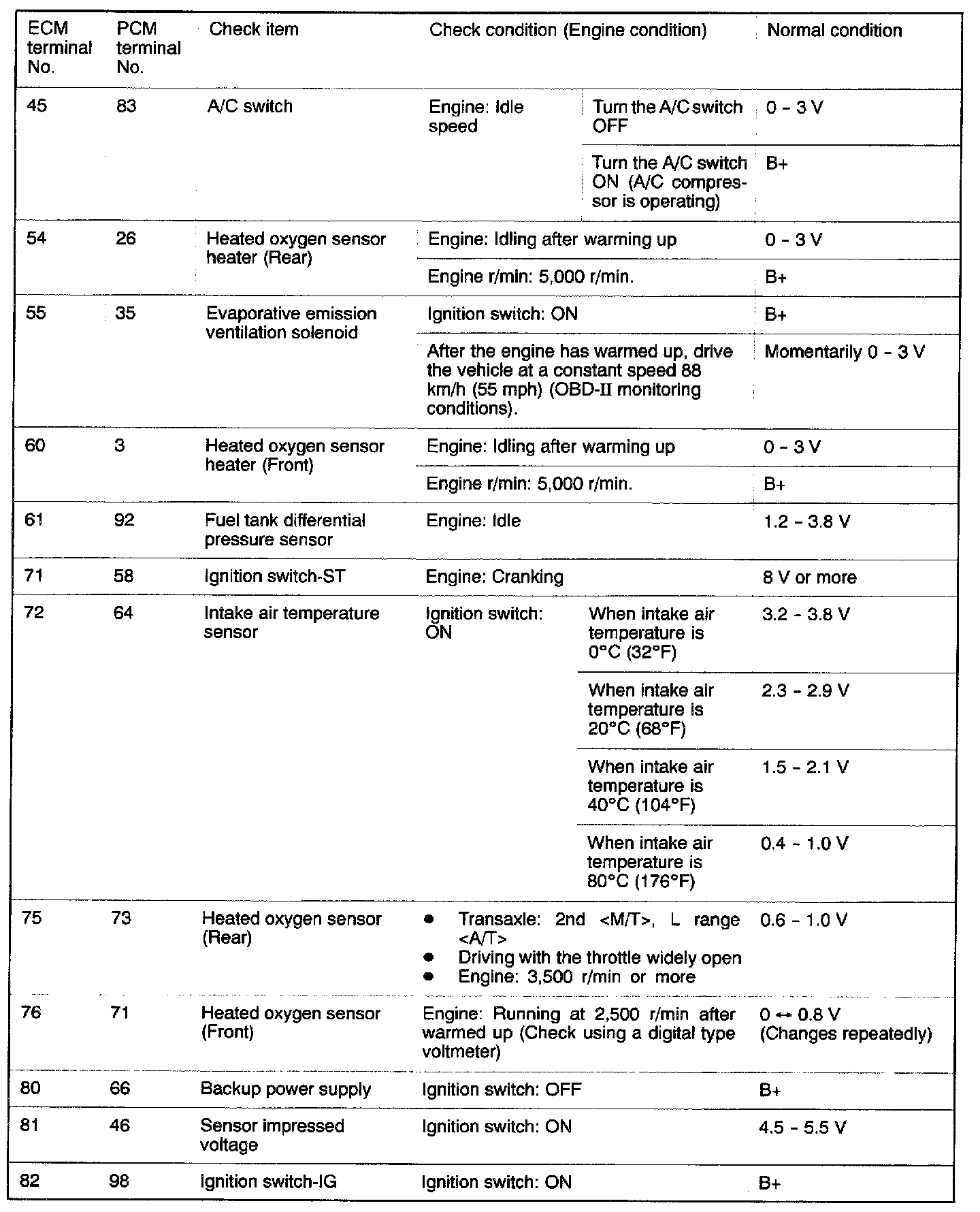

Terminals Part 3:
Terminals Part 4:
