Home
>>
Mitsubishi
>>
2002
>>
Mirage Coupe DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Timer/Control Unit
>>
Locations
Timer/Control Unit: Locations
Control Unit Locations Overall View:
View A:

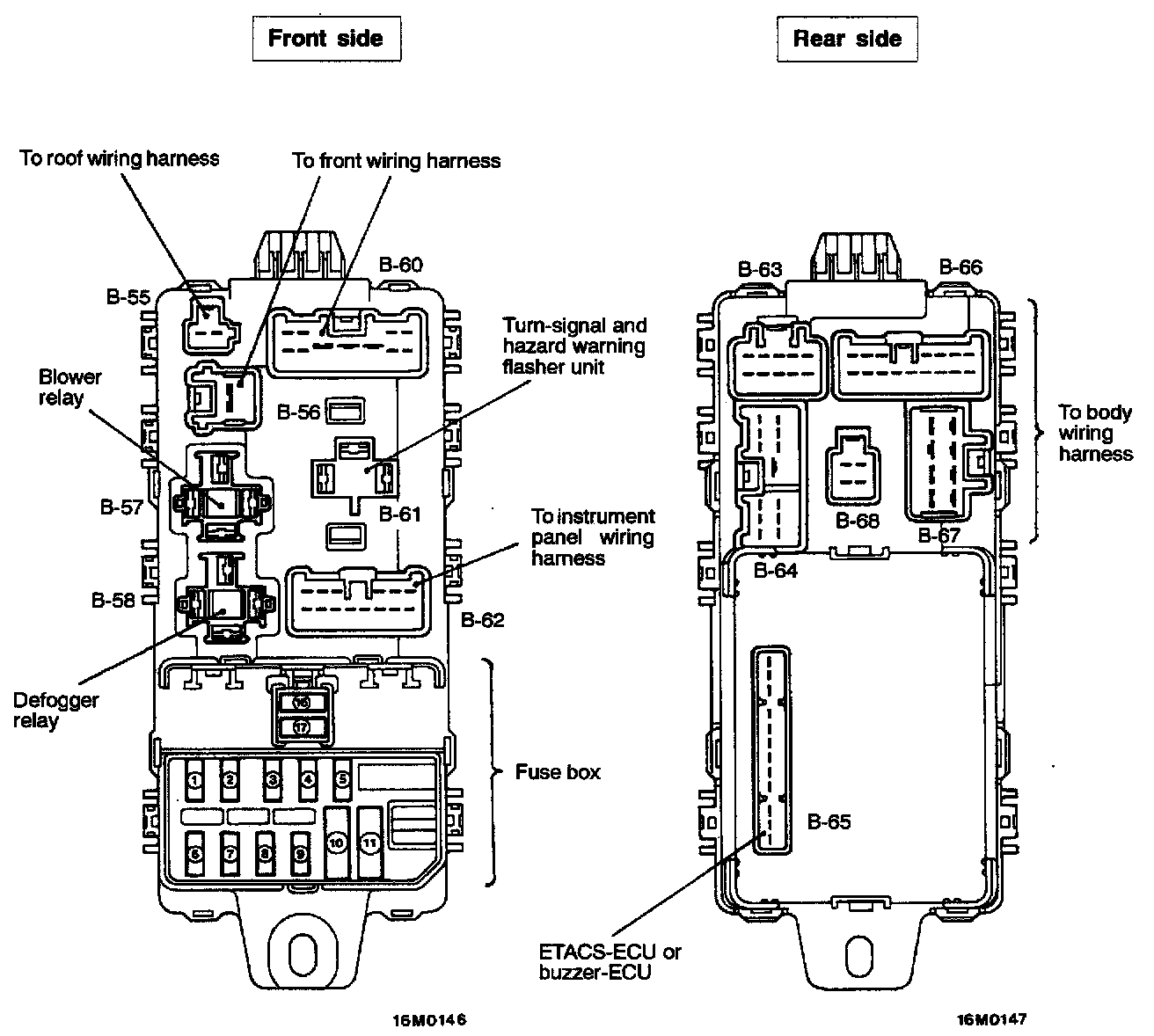

Junction Block - Face View:
