Lancer LS L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

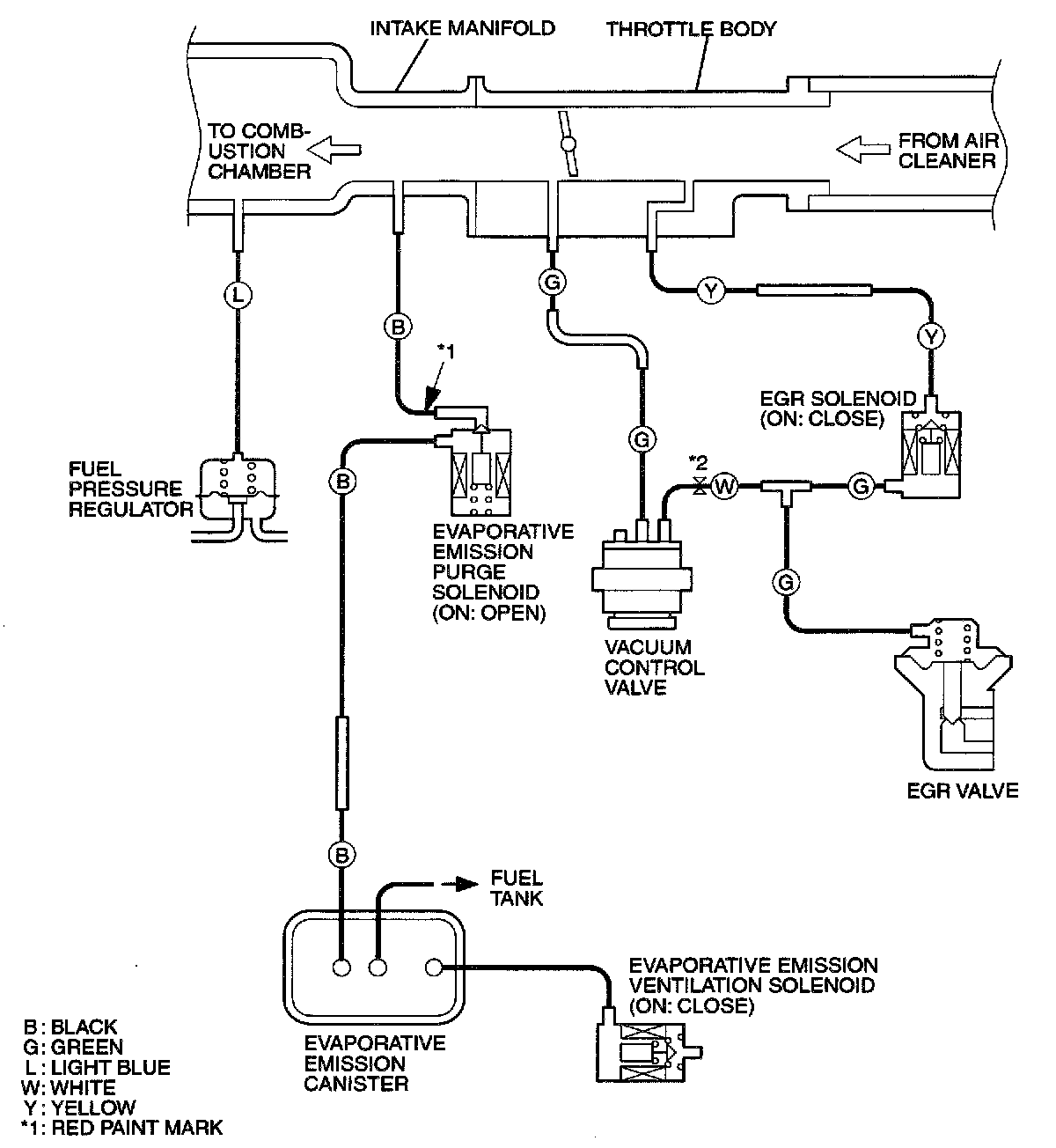

Vacuum Circuit Diagram:
