Suspension Strut / Shock Absorber
>>
Rear
Rear

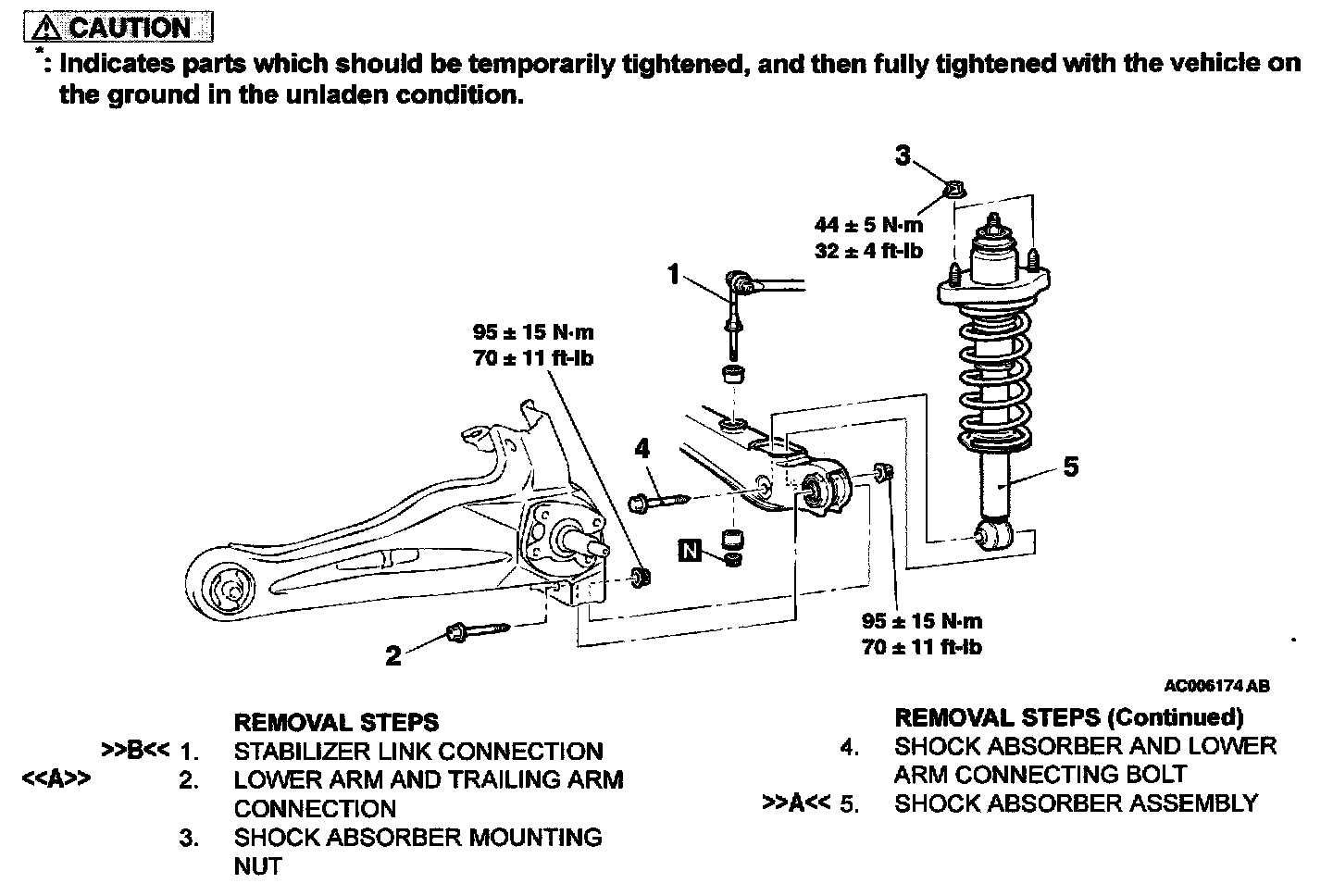

SHOCK ABSORBER ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Replacement

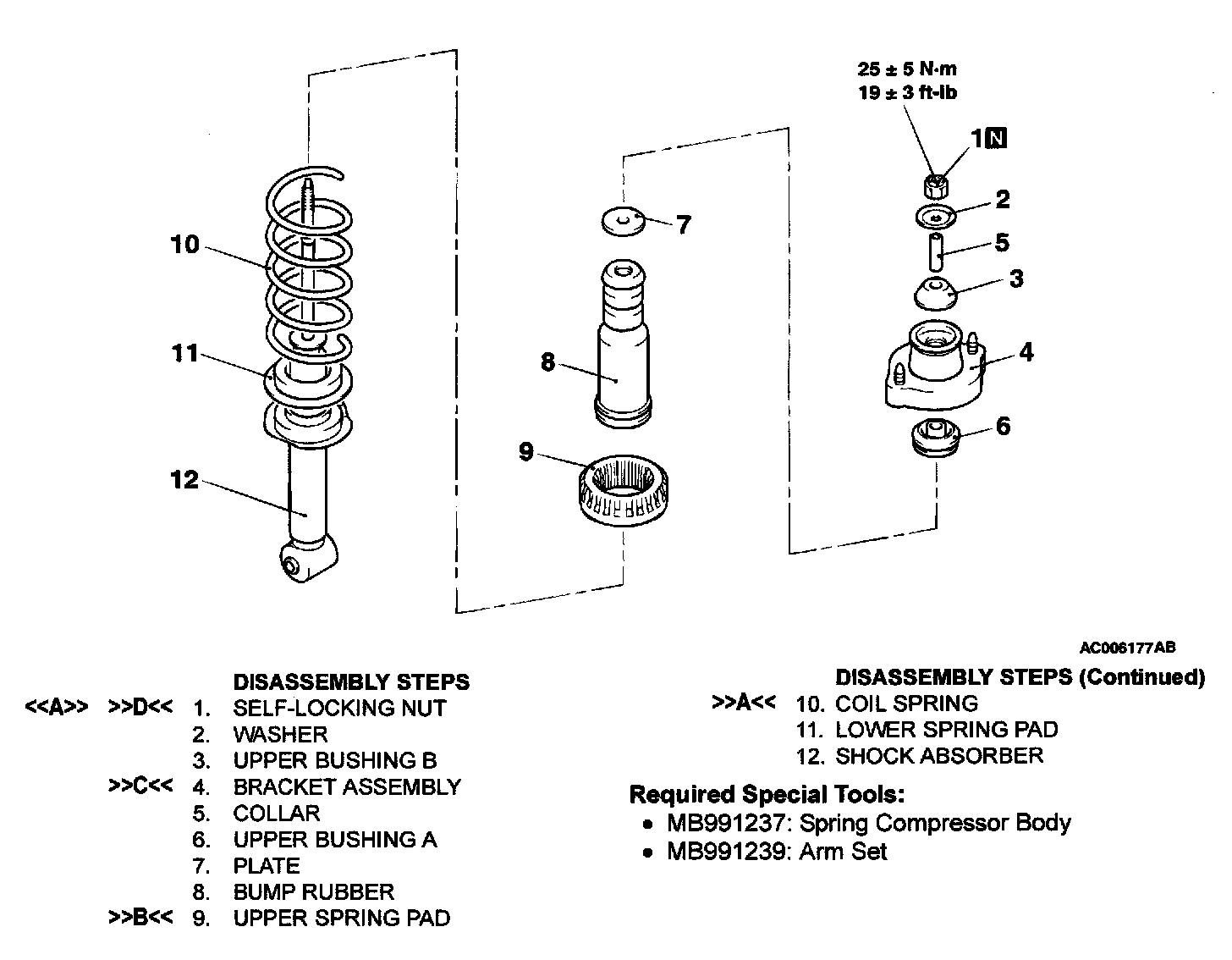

Overhaul
