Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Lancer LS L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Hydraulic Control Assembly - Antilock Brakes
>>
Description and Operation
>>
Solenoid Valve Operation
Solenoid Valve Operation

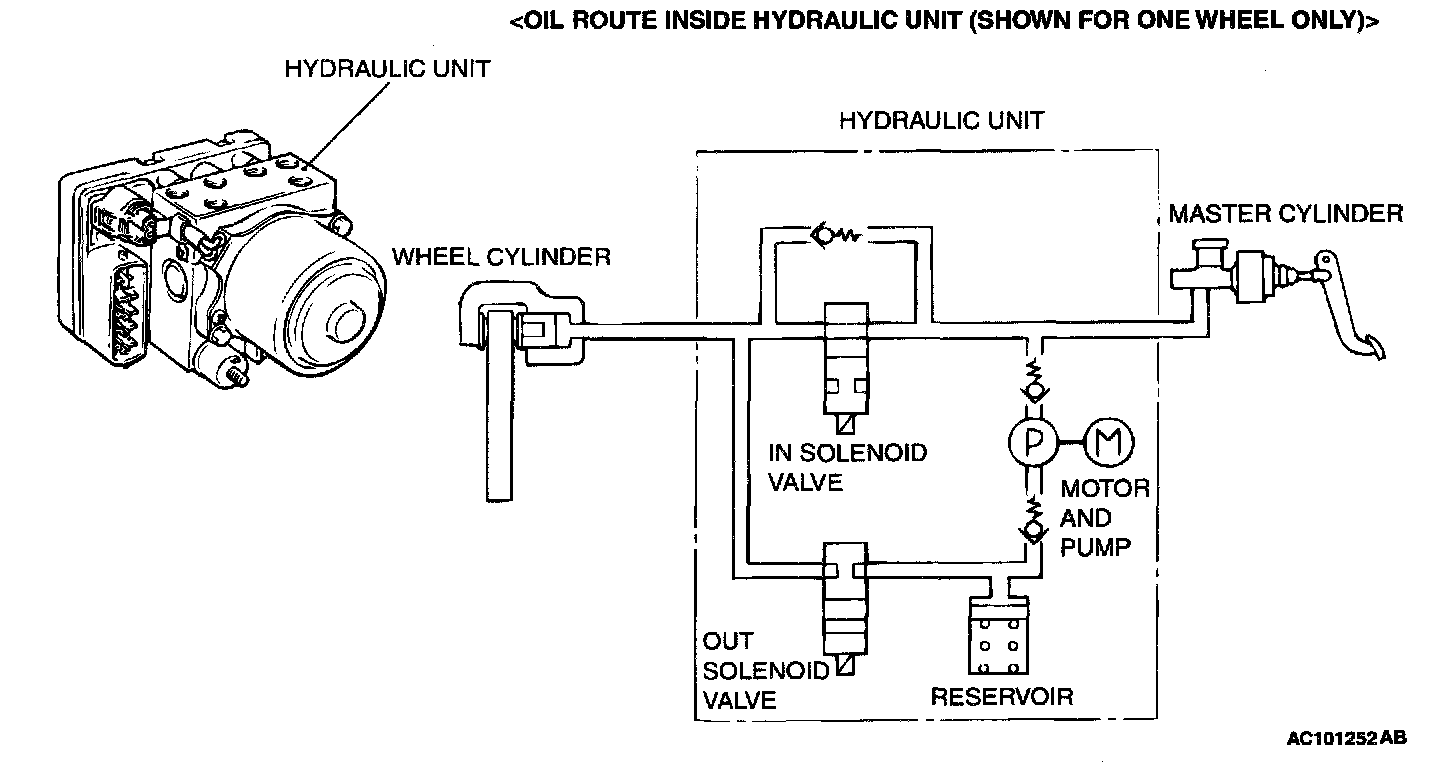

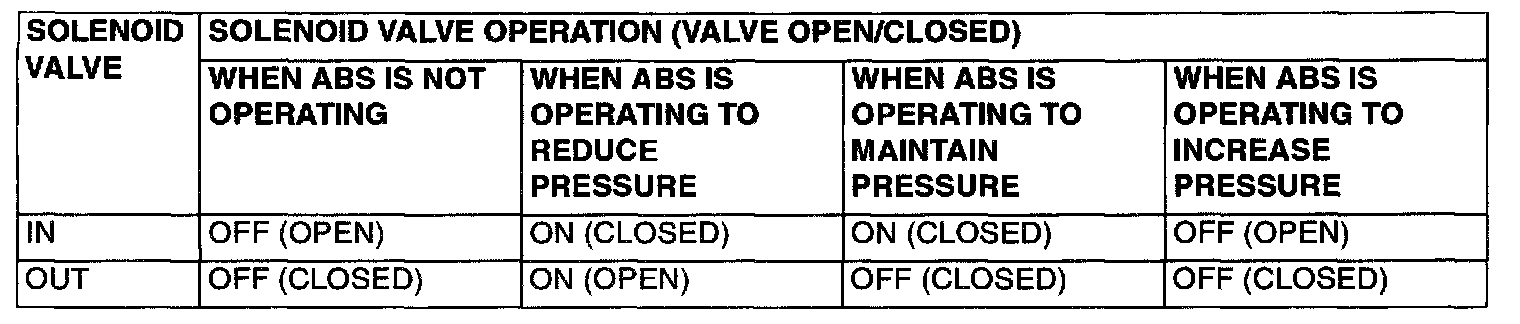

SOLENOID VALVE OPERATION
Part 1 of 2
Part 2 of 2
