Home >> Mitsubishi >> 2002 >> Lancer ES L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp

Trunk Lamp

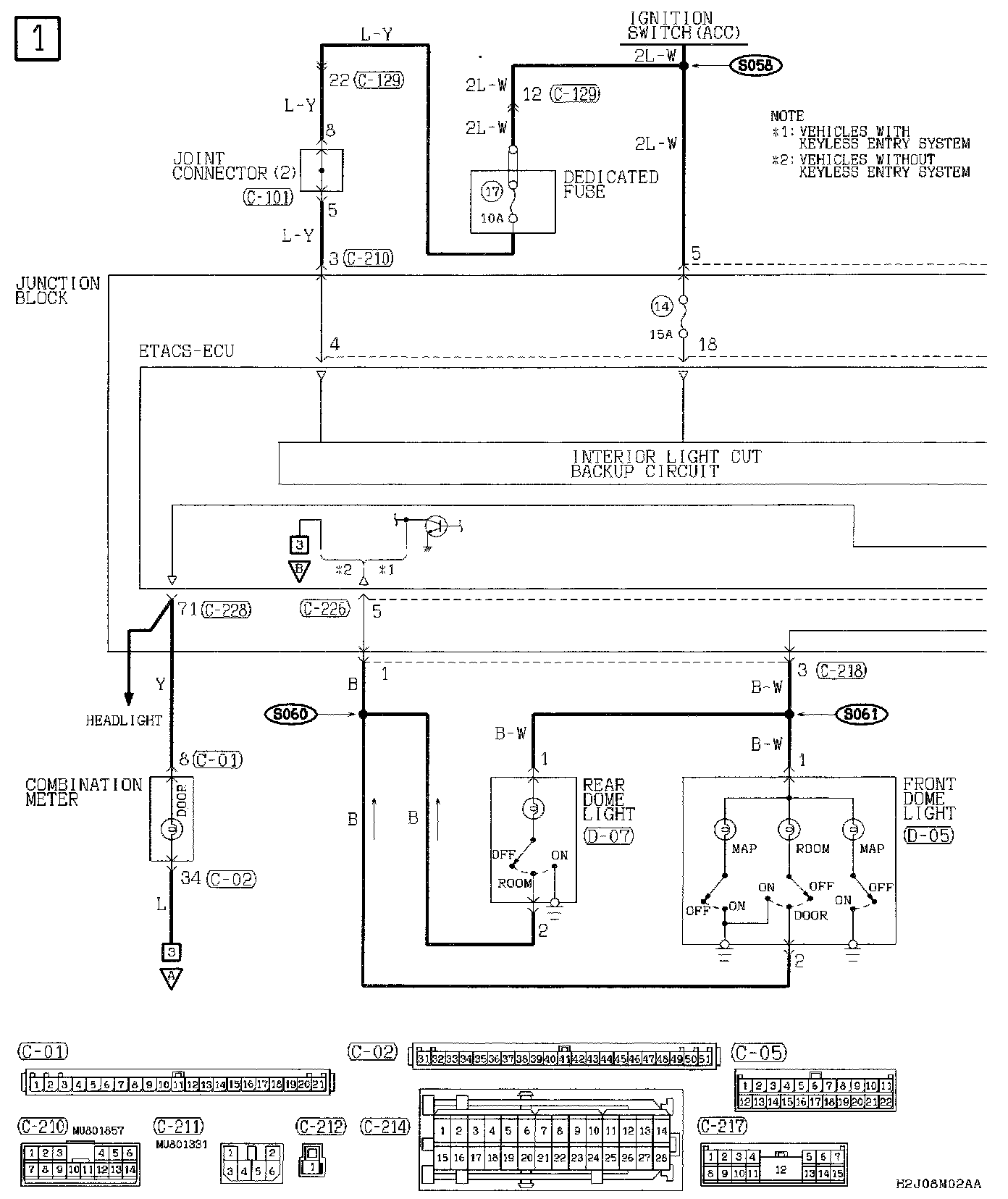

Dome Light And Luggage Compartment Light Part 1:

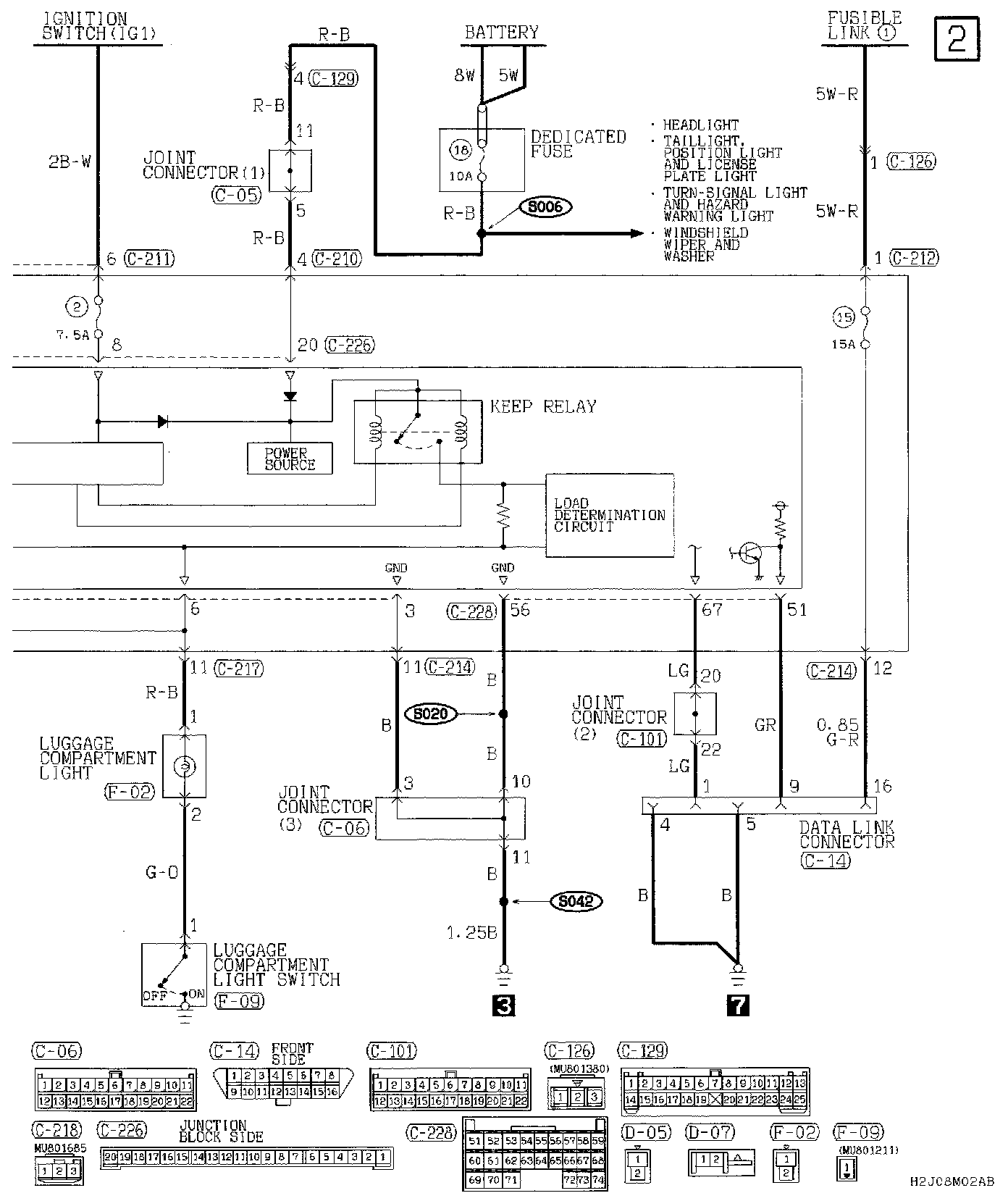

Part 2:

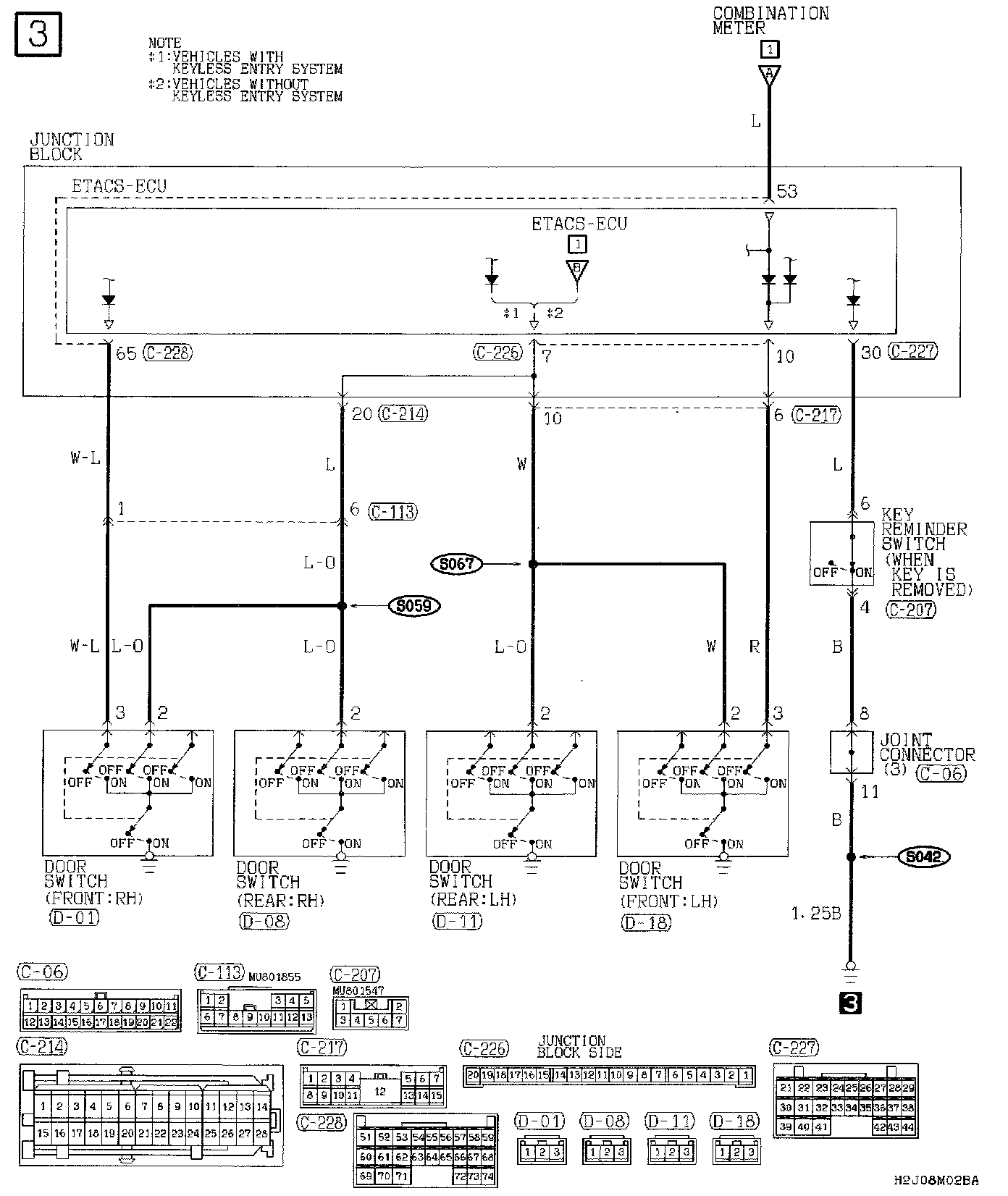

Part 3:
