Heater Control Valve Actuator: Testing and Inspection

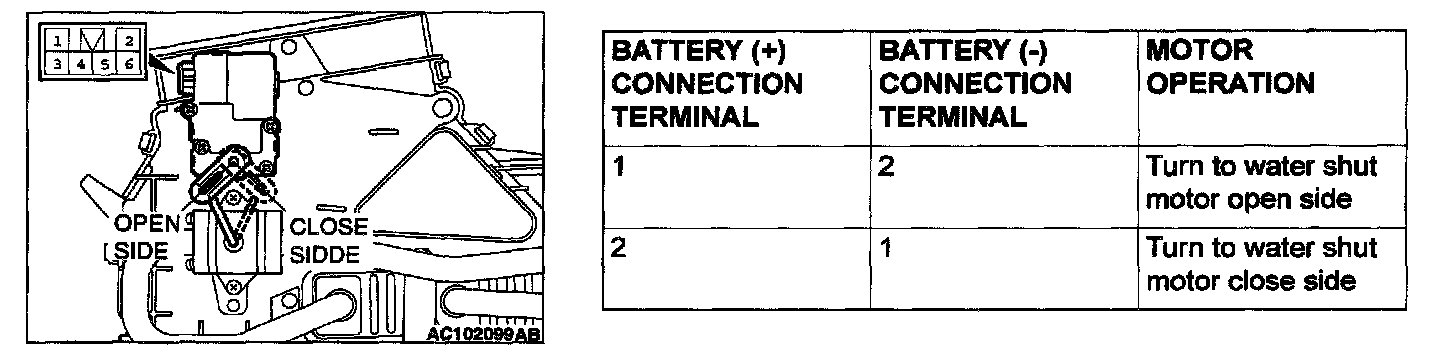

Water Shut Motor Check:

WATER SHUT MOTOR CHECK

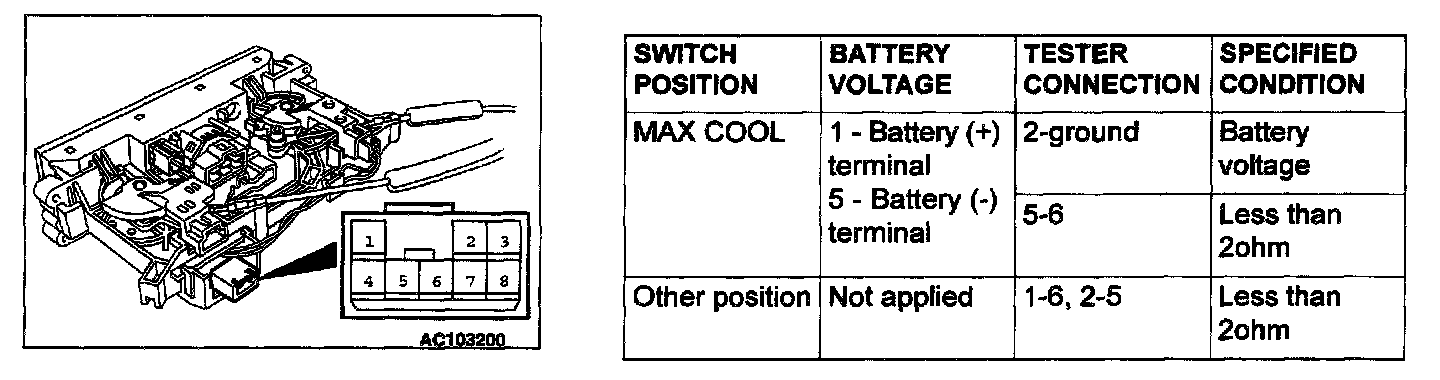

Water Shut Valve Controller Continuity Check:

CAUTION: When the motor stops, disconnect battery cable.
