Front Seat

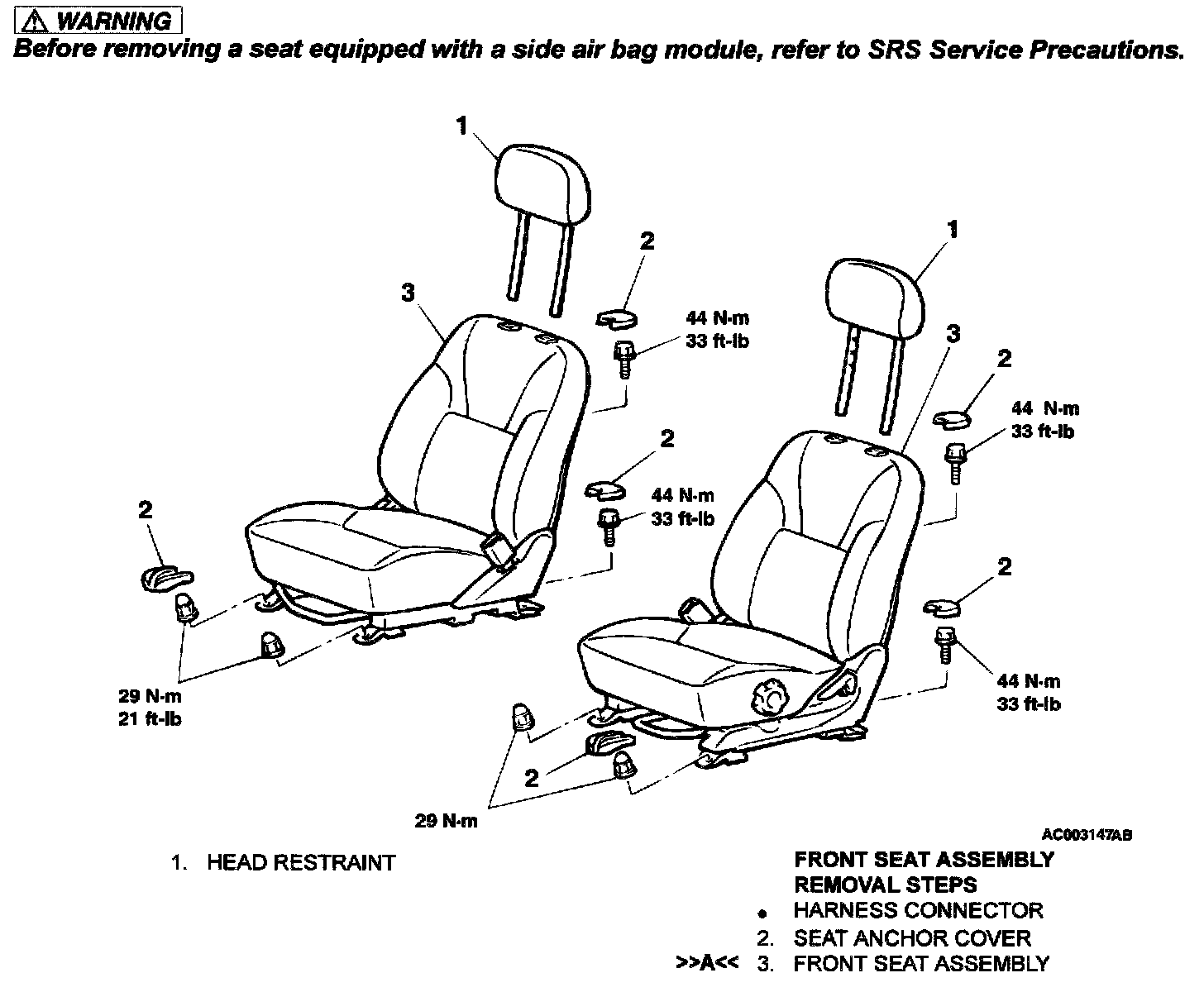

FRONT SEAT ASSEMBLY




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTALLATION
First install all of the front seat assembly mounting nuts and bolts, and then tighten them to the specified torque.

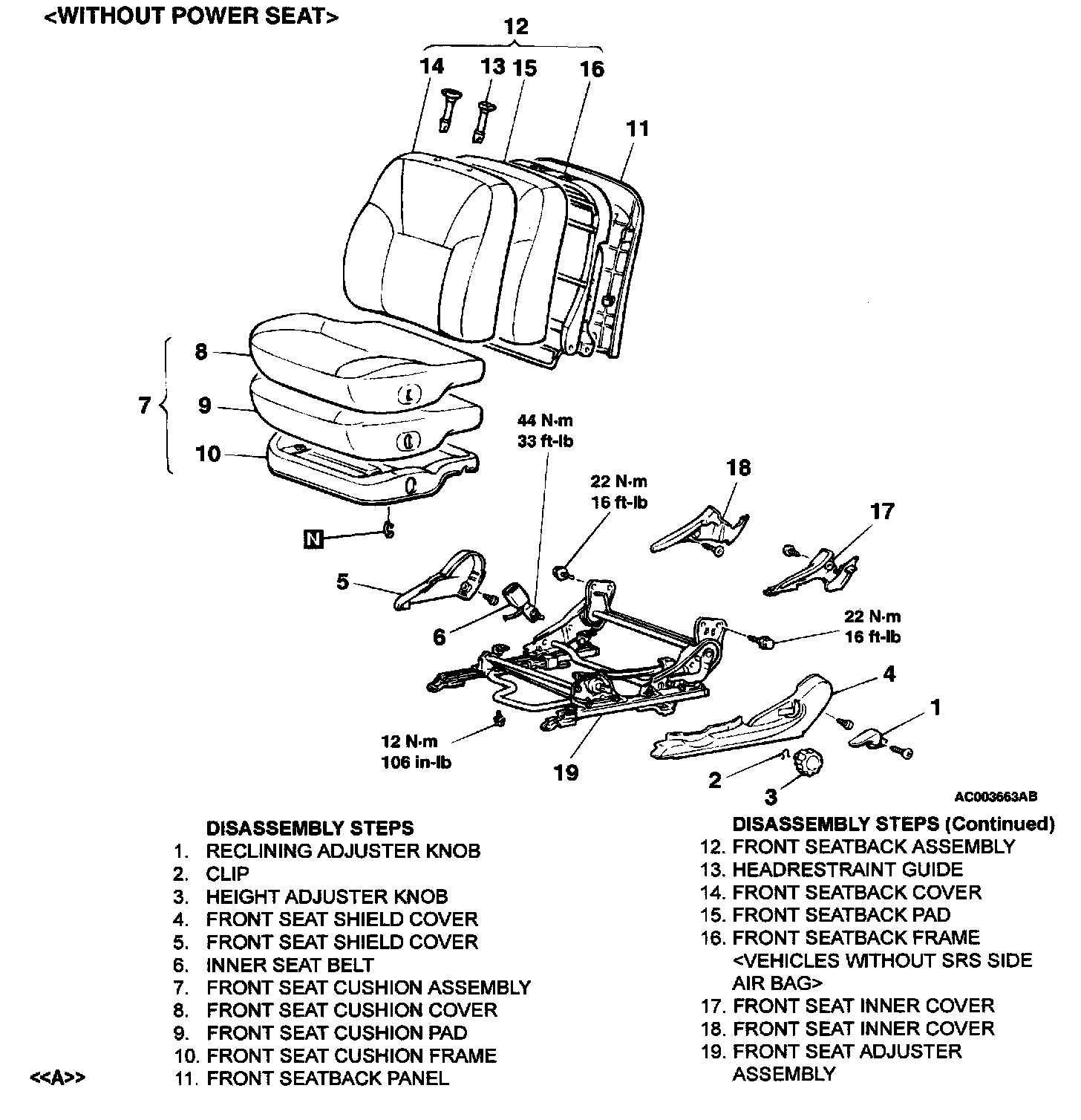

Without Power Seat:

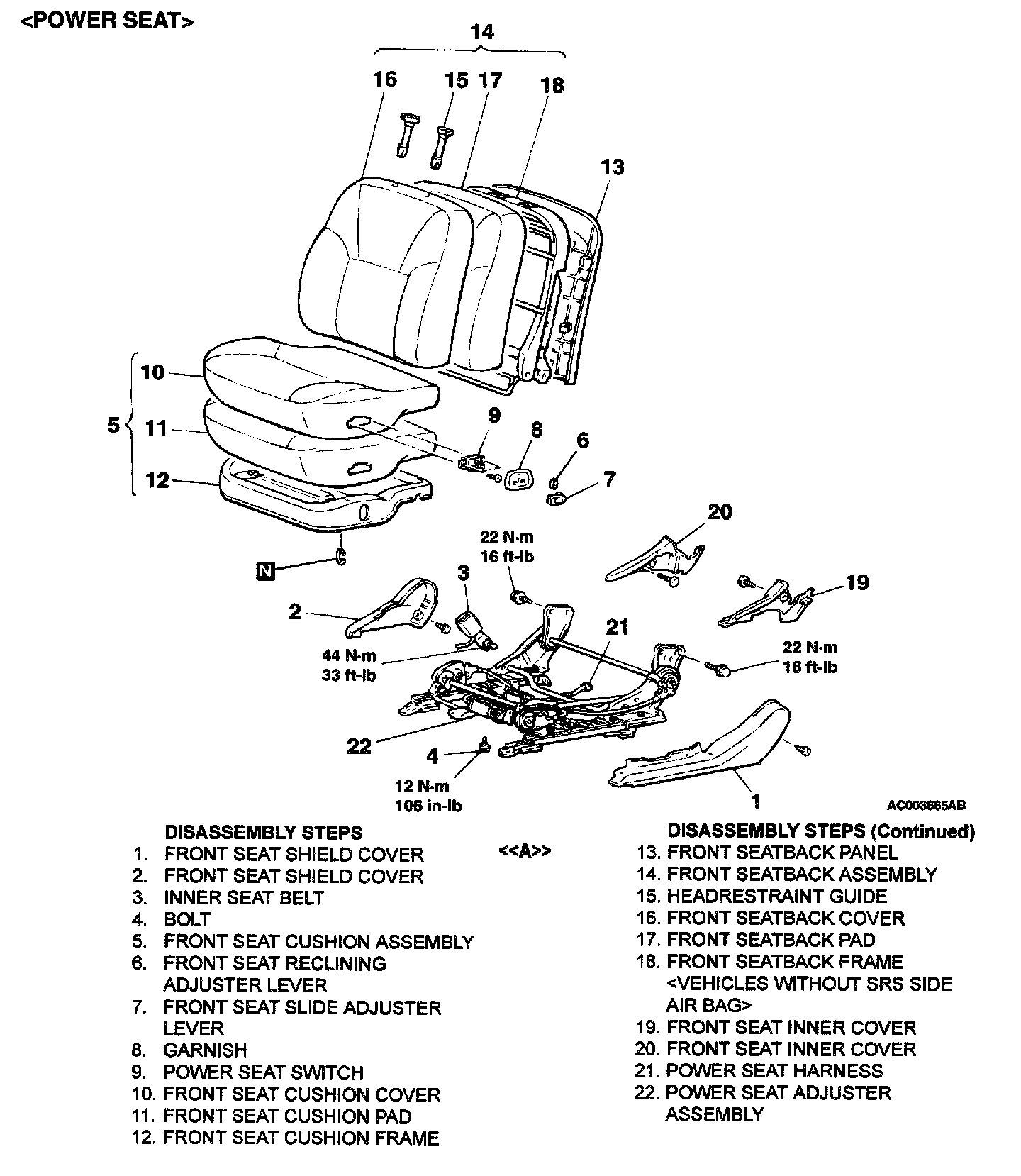

Power Seat:

DISASSEMBLY AND ASSEMBLY


DISASSEMBLY SERVICE POINT

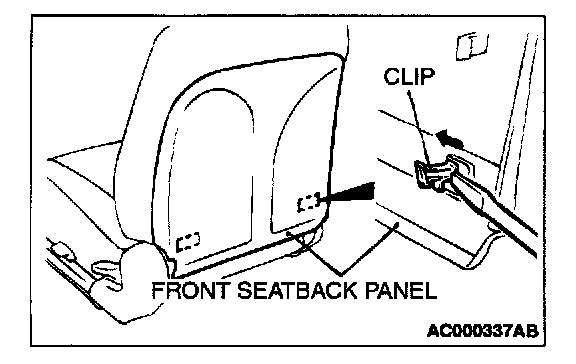

<> FRONT SEATBACK PANEL REMOVAL
1. Using a screwdriver or similar tool, push in the clip of the front seatback panel lower portion to remove it.
2. Pull down the front seatback panel to remove it.
