Trunk / Liftgate Lock Cylinder: Testing and Inspection

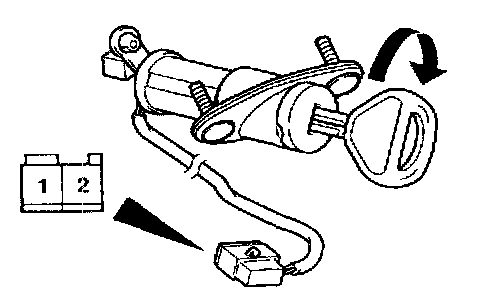

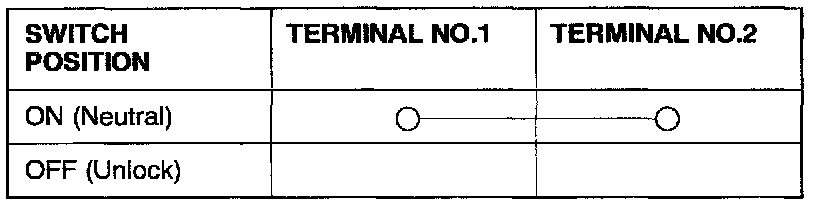

TRUNK LED LOCK KEY CYLINDER SWITCH CONTINUITY CHECK
[VEHICLES WITH THEFT-ALARM SYSTEM]
