Removal and Installation

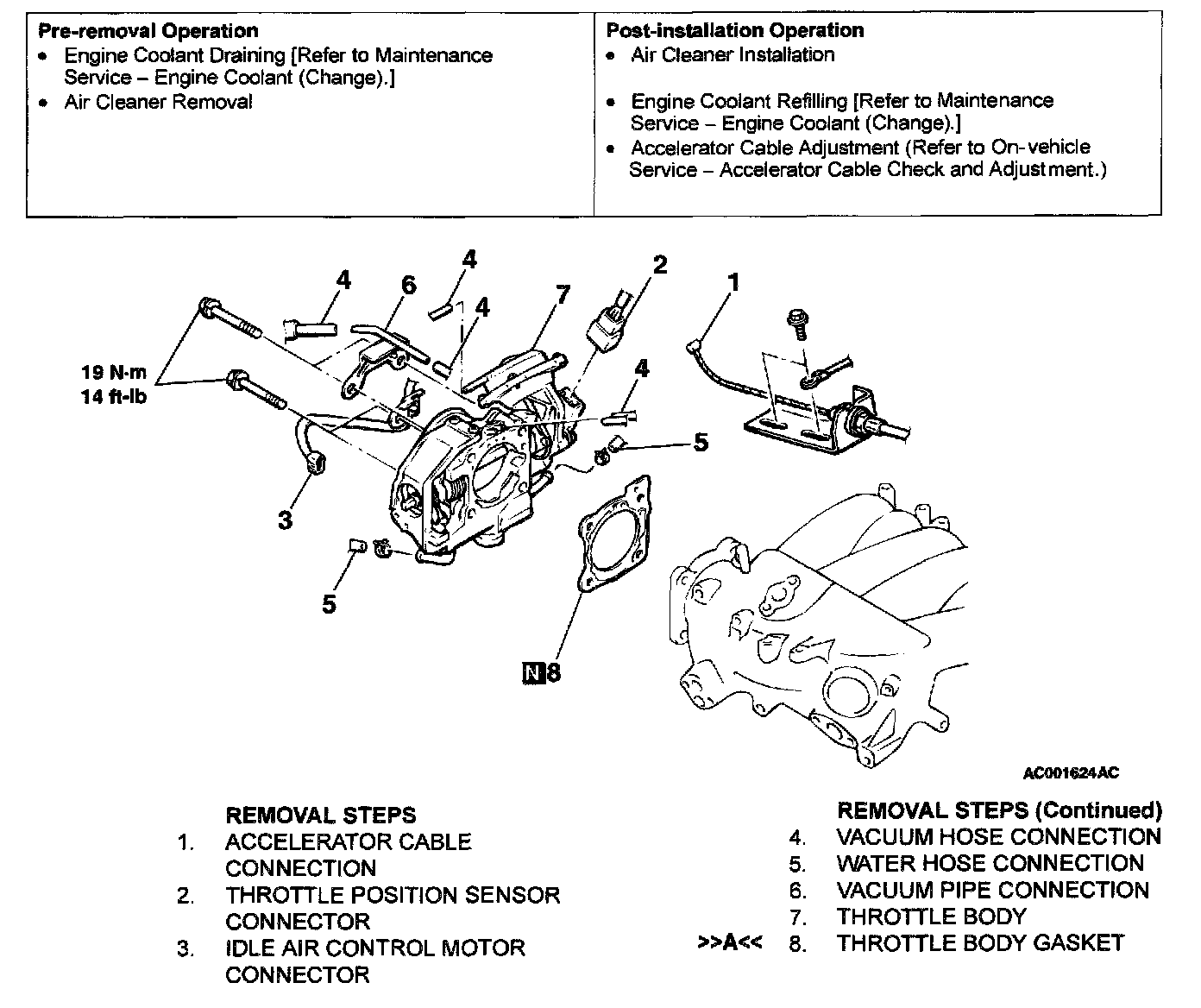

THROTTLE BODY ASSEMBLY






INSTALLATION SERVICE POINT




>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

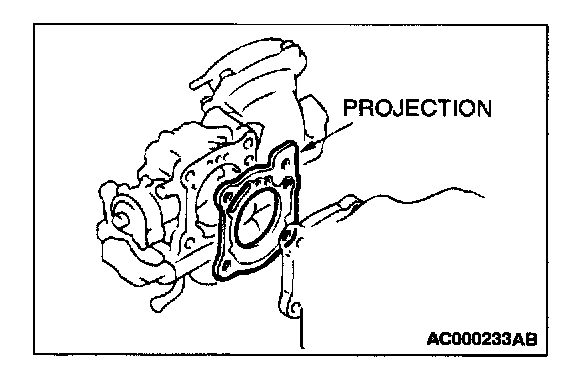

Install the throttle body gasket as shown in the illustration.
