Resistance Check

INJECTOR CHECK


1. Disconnect the injector intermediate connector.

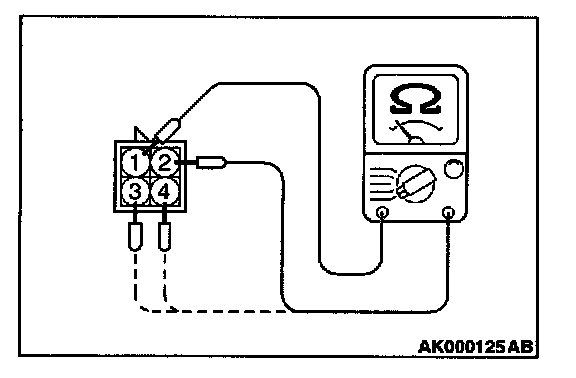

2. Measure the resistance between the injector intermediate connector terminals.

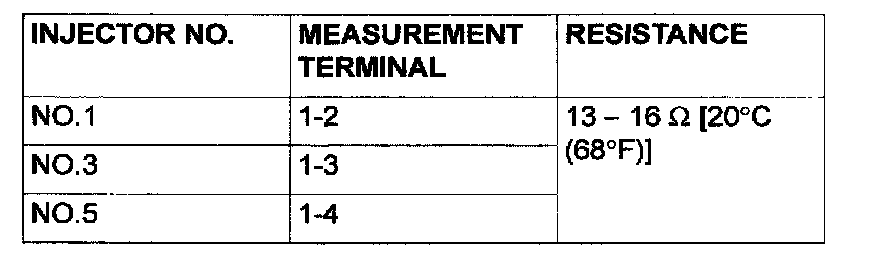

Standard Value:

Standard value:

3. Connect the injector intermediate connector.





1. Disconnect the injector connector.

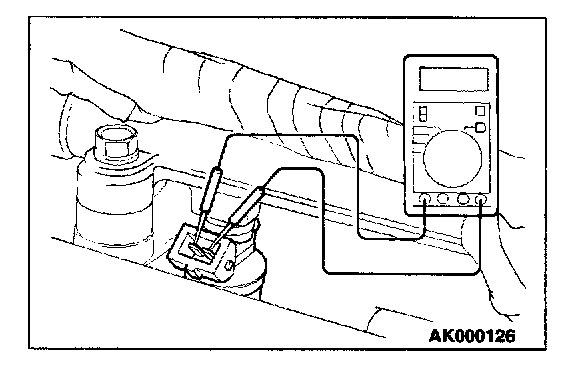

2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 13 - 16 ohm [at 20°C (68°F)]

3. Connect the injector connector.
