Inspection Procedure D-1



Power Window: Power windows do network at all.

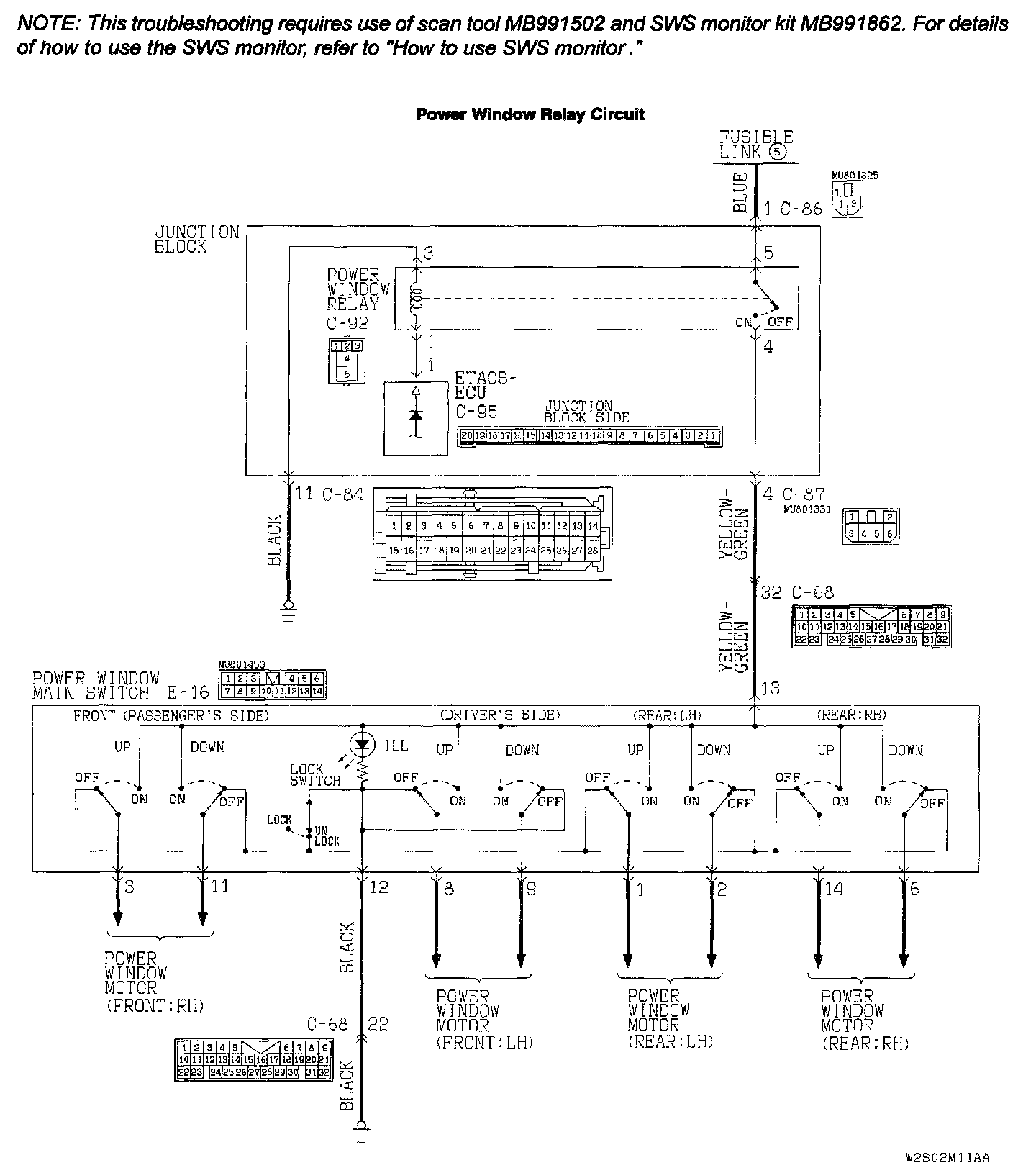

Power Window Relay Circuit:

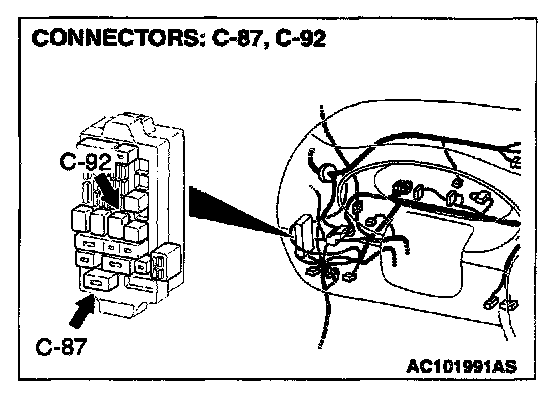

Connectors:






CIRCUIT OPERATION
The ETACS-ECU turns on the power window relay (installed on the junction block) to activate the power windows when the ignition switch (IG1) is turned to the "ON" position.

TROUBLESHOOTING HINTS
- Malfunction of power window relay
- Malfunction of the ETACS-ECU
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Test Harness Set
- MB991502: Scan Tool (MUT-II)
- MB991862: SWS monitor kit







STEP 1. Use scan tool to select "ECU CHECK" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502. Also connect SWS monitor kit MB991862 after turning on scan tool MB991502.

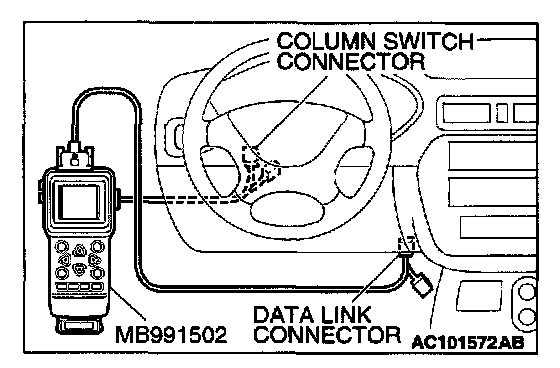

1. Connect scan tool MB991502 to the data link connector.

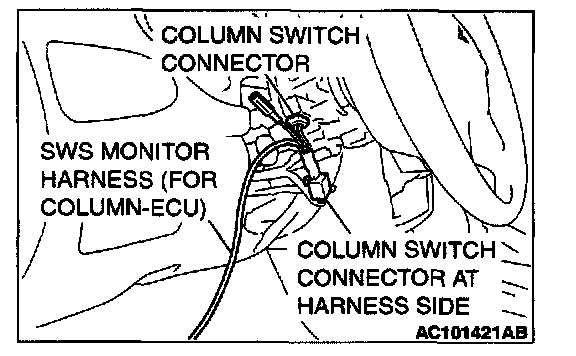

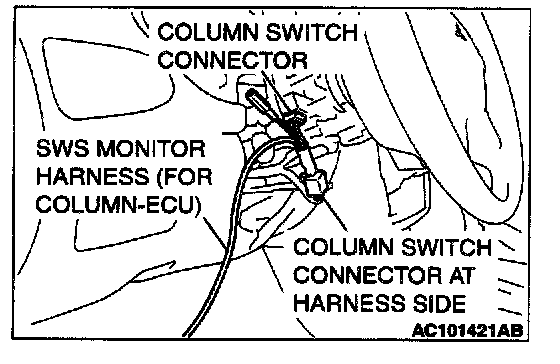

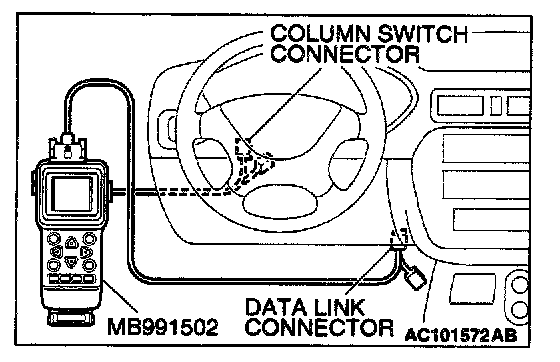

2. Connect SWS monitor kit MB991862 to the column switch connector.
3. When the ignition switch is turned to the "ON" position, scan tool MB991502 should show "OK" on the "ETACS ECU" menu.

Q: Is "OK" displayed on the "ETACS ECU" menu?

YES: Go to Step 2.

NO: Refer to Inspection Procedure A-3 "Communication with ETACS-ECU is impossible."










STEP 2. Check the input signal by using service data of the SWS monitor.
Tun the ignition switch to the "ON" position before checking input signals from the ignition switch (IG1).

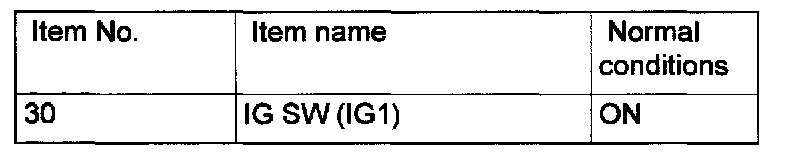

Select "ETACS ECU" (DATALIST), and check that normal conditions are displayed on the items described in the table.

Q: Does the scan tool display "IG SW (IG1)" as normal condition?

YES: Go to Step 3.

NO: Refer to Inspection Procedure N-2 "ETACS-ECU does not receive a signal from the ignition switch (IG1)."

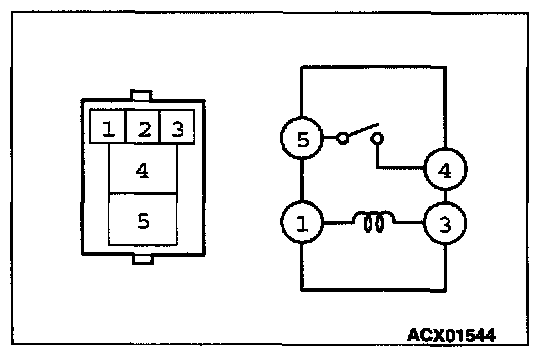

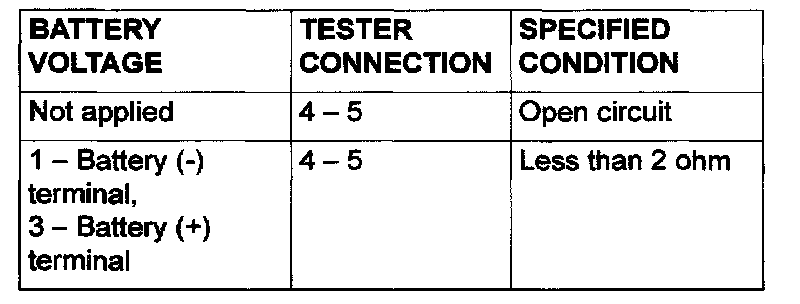

STEP 3. Check the power window relay.

Q: Is the power window relay normal?

YES: Go to Step 4.

NO: Replace the power window relay. Check that the power windows work normally.

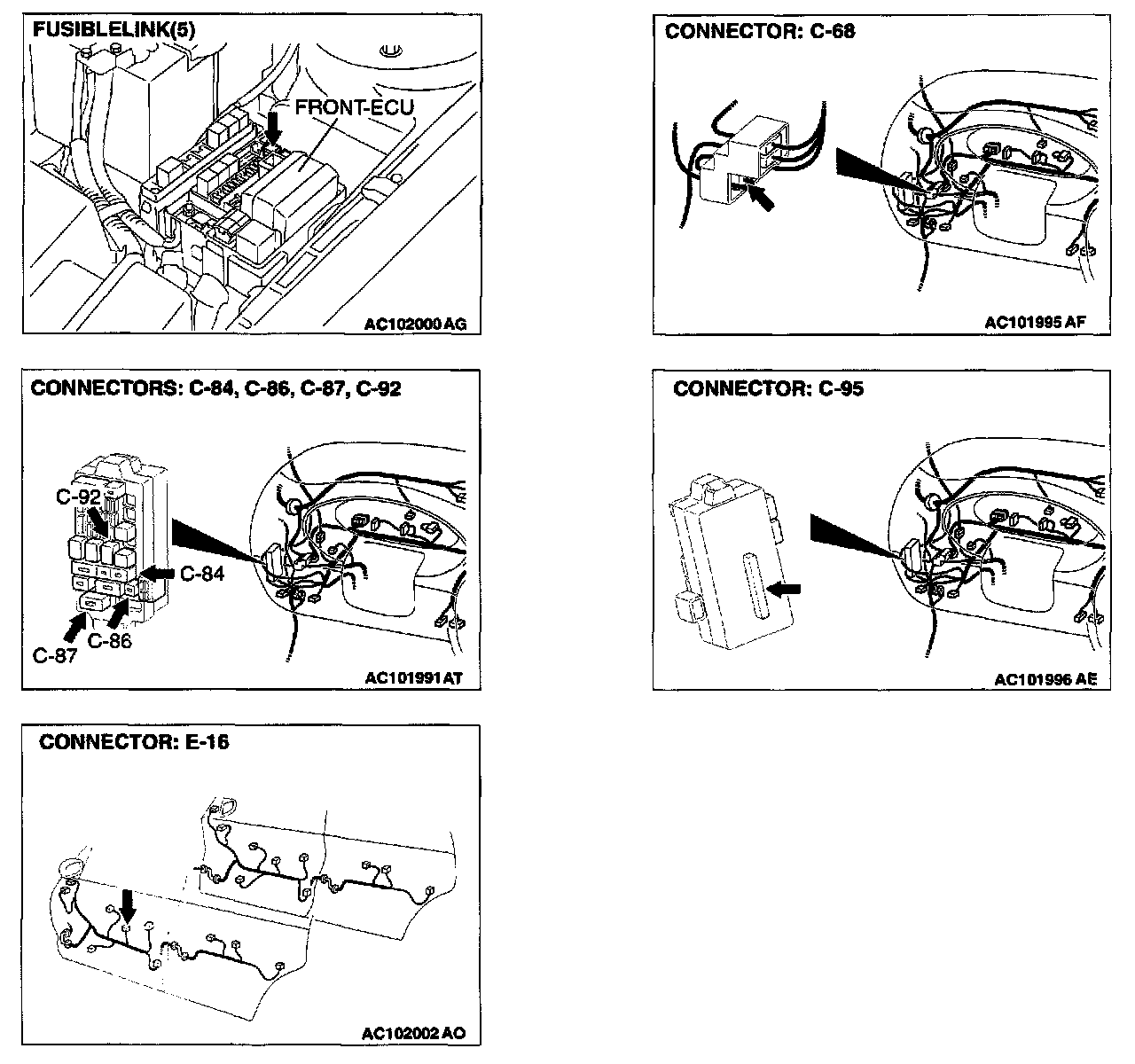

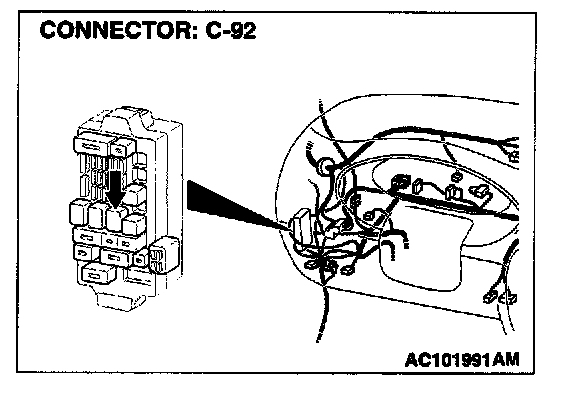

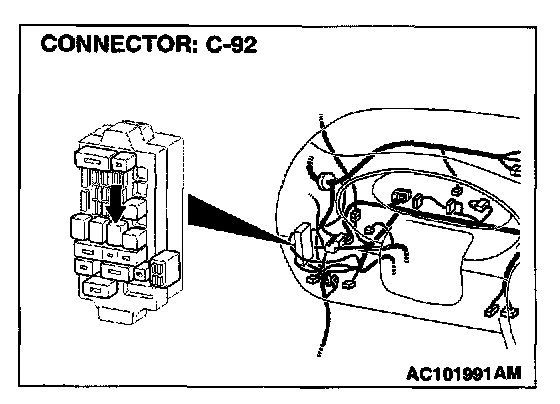

STEP 4. Measure at power window relay connector C-92 in order to check the fusible link (5) line of power supply system to power window relay.
1. Disconnect power window relay connector C-92, and measure at the junction block side.
2. Measure the voltage between terminal 5 and ground.
- The measured value should be approximately 12 volts (battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES: Go to Step 7.

NO: Go to Step 5.

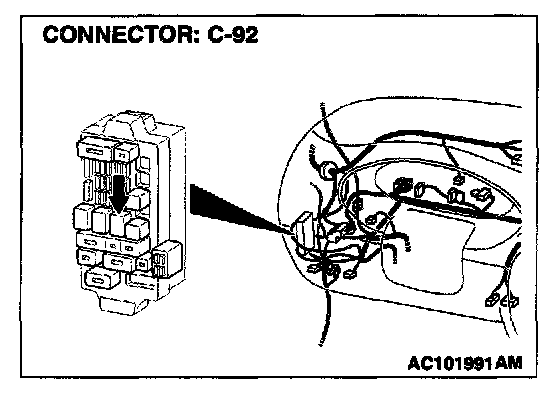

STEP 5. Check power window relay connector C-92 for damage.

Q: Is power window relay connector C-92 in good condition?

YES: Go to Step 6.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the power windows work normally.

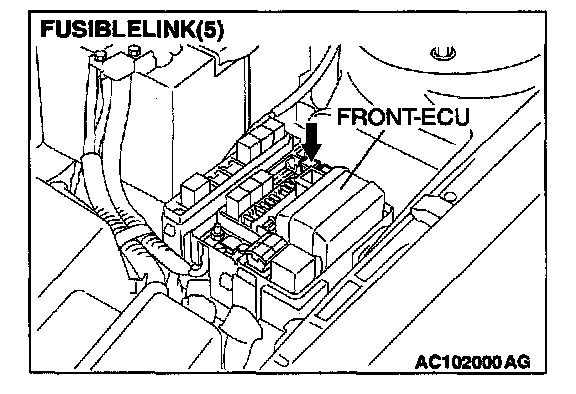

STEP 6. Check the wiring harness between power window relay connector C-92 and fusible link (5).

NOTE: Also check junction block connector C-86. If junction block connector C-86 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window relay connector C-92 and fusible link (5) in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. Check that the power windows work normally.




STEP 7. Measure at power window relay connector C-92 in order to check the ground system to the power window relay.
1. Disconnect power window relay connector C-92, and measure at the junction block side.

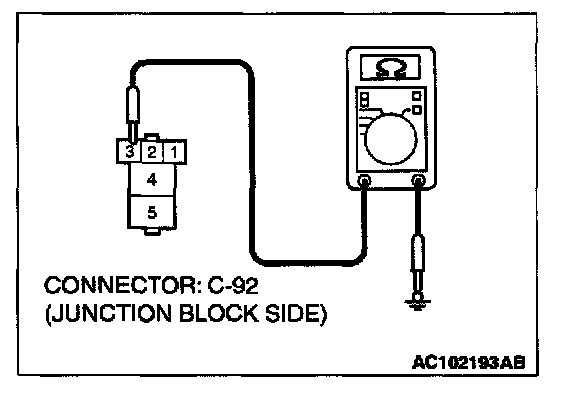

2. Measure the resistance value between terminal 3 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 10.

NO: Go to Step 8.




STEP 8. Check power window relay connector C-92 for damage.

Q: Is power window relay connector C-92 in good condition?

YES: Go to Step 9.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the power windows work normally.




STEP 9. Check the wiring harness between power window relay connector C-92 and ground.

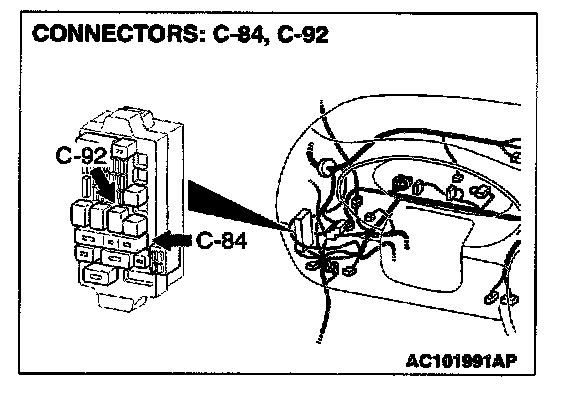

NOTE: Also check junction block connector C-84. If junction block connector C-84 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window relay connector C-92 and ground in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. Check that the power windows work normally.

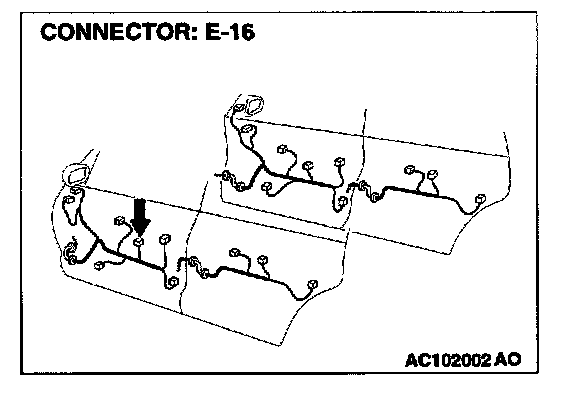

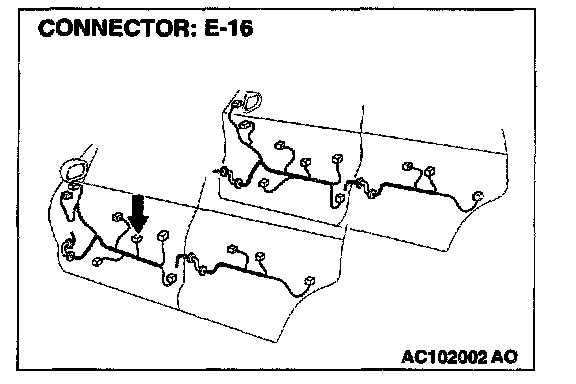

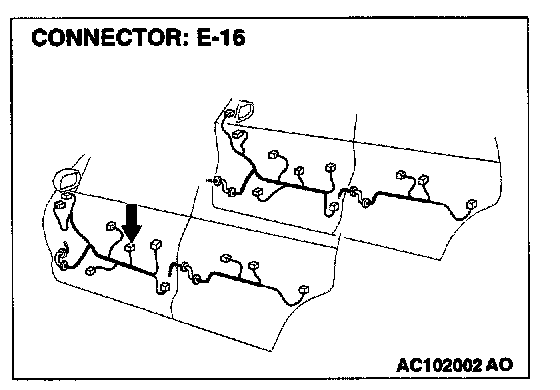

STEP 10. Check at power window main switch connector E-16 in order to check the power window main switch ground circuit.

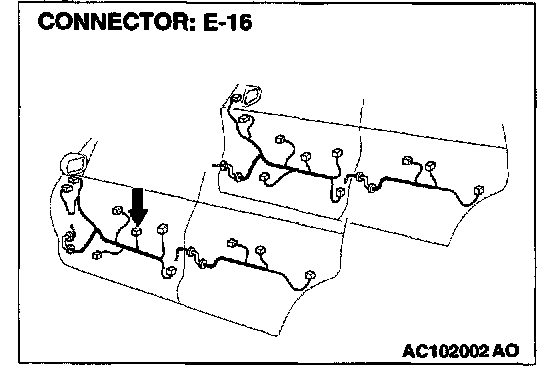

1. Disconnect power window main switch connector E-16, and measure at the harness side.

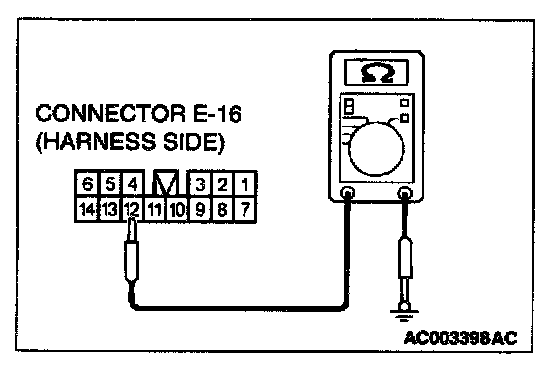

2. Measure the resistance value between terminal 12 and ground.
- The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 13.

NO: Go to Step 11.




STEP 11. Check power window main switch connector E-16 for damage.

Q: Is power window main switch connector E-16 in good condition?

YES: Go to Step 12.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the power windows work normally.







STEP 12. Check the wiring harness between power window main switch E-16 and ground.

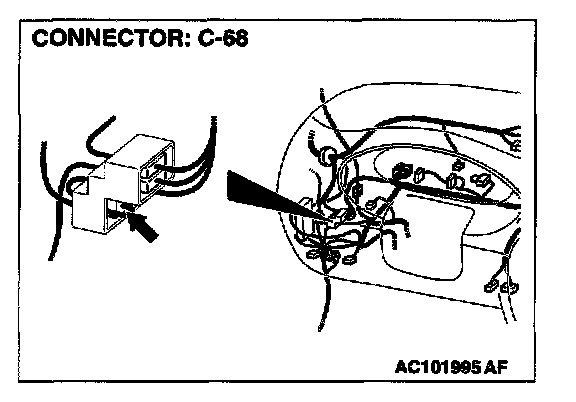

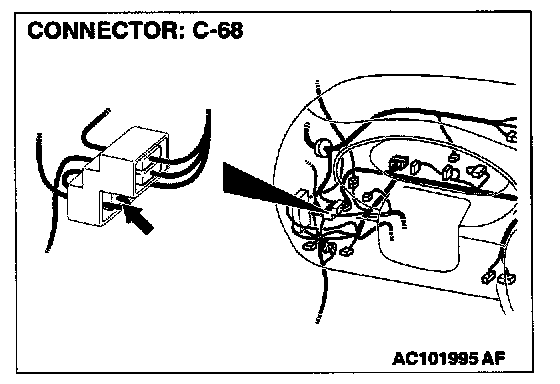

NOTE: Also check intermediate connector C-68. If intermediate connectors C-68 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window main switch connector E-16 and ground in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. Check that the power windows work normally.




STEP 13. Check at power window main switch connector E-16 in order to check the power window relay circuit of the power supply to the power window main switch.
1. Disconnect power window main switch connector E-16, and measure at the harness side.
2. Turn the ignition switch to "ON" position.

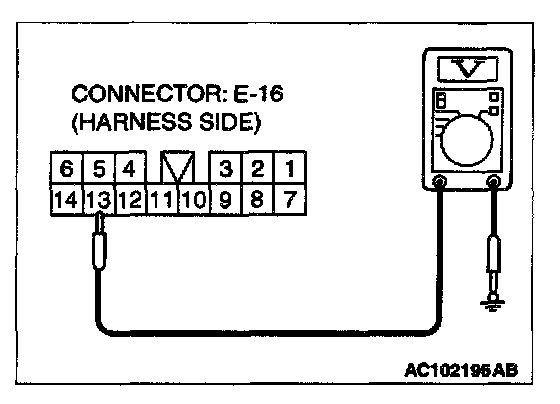

3. Measure the voltage between terminal 13 and ground.
- The measured value should be approximately 12 volts (battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES: Replace the power window main switch. Check that the power windows work normally.

NO: Go to Step 14.

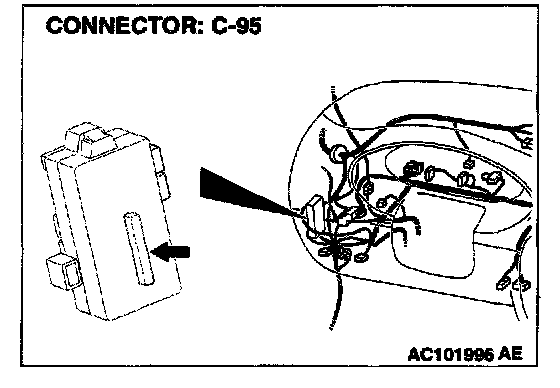

STEP 14. Check power window relay connector C-92 and ETACS-ECU connector C-95 for damage.

Q: Are power window relay connector C-92 and ETACS-ECU connector C-95 in good condition?

YES: Go to Step 15.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the power windows work normally.







STEP 15. Check power window relay connector C-92 and power window main switch connector E-16 for damage.

Q: Are power window relay connector C-92 and power window main switch connector E-16 in good condition?

YES: Go to Step 16.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the power windows work normally.










STEP 16. Check the wiring harness between power window relay connector C-92 and power window main switch connector E-16.

NOTE: Also check junction block connector C-87 and intermediate connector C-68. If junction block connector C-87 or intermediate connectors C-68 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window relay connector C-92 and power window main switch connector E-16 in good condition?

YES: Replace the ETACS-ECU. Check that the power windows work normally.

NO: Repair the wiring harness. Check that the power windows work normally.
