Home
>>
Mitsubishi
>>
2002
>>
Galant ES V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)

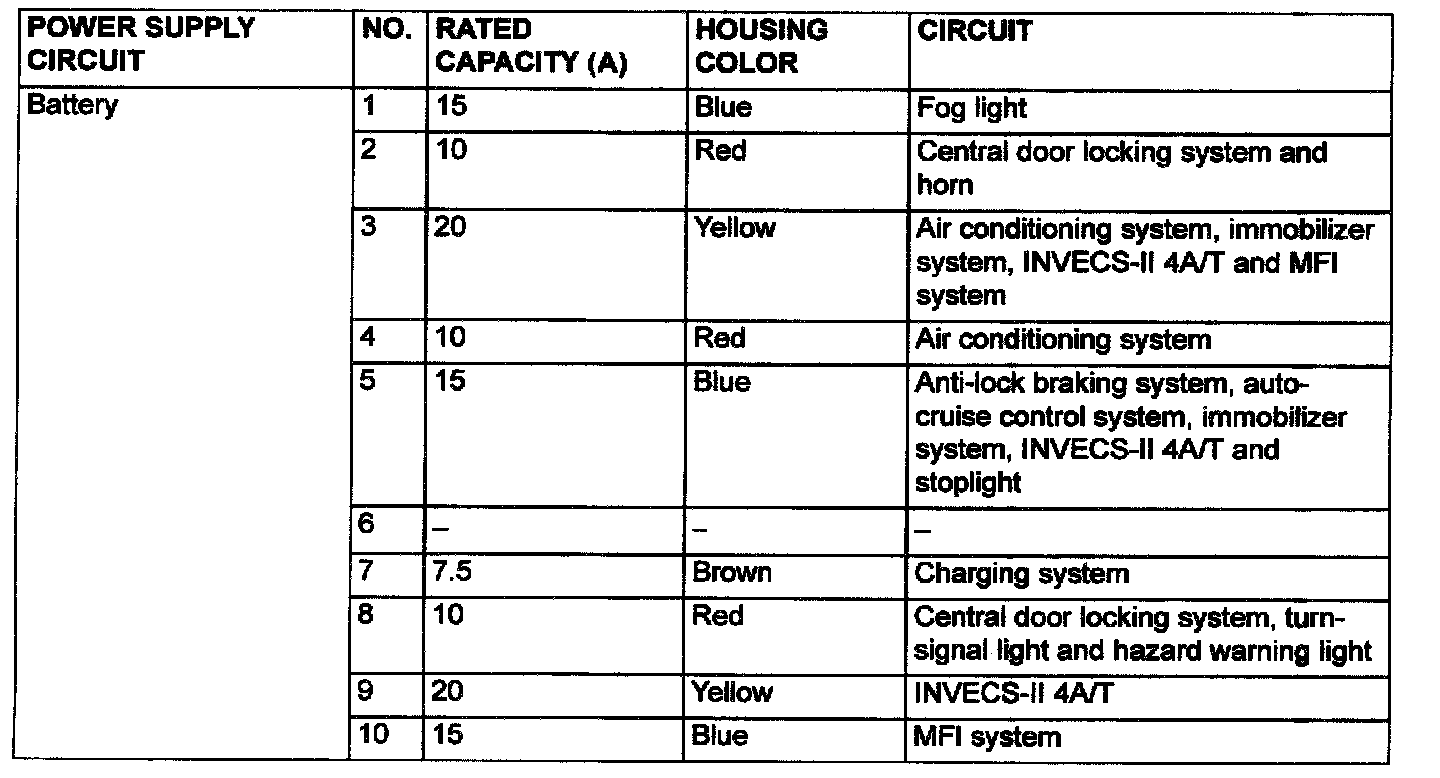

Dedicated Fuse Location Index Part 1:
Part 2:

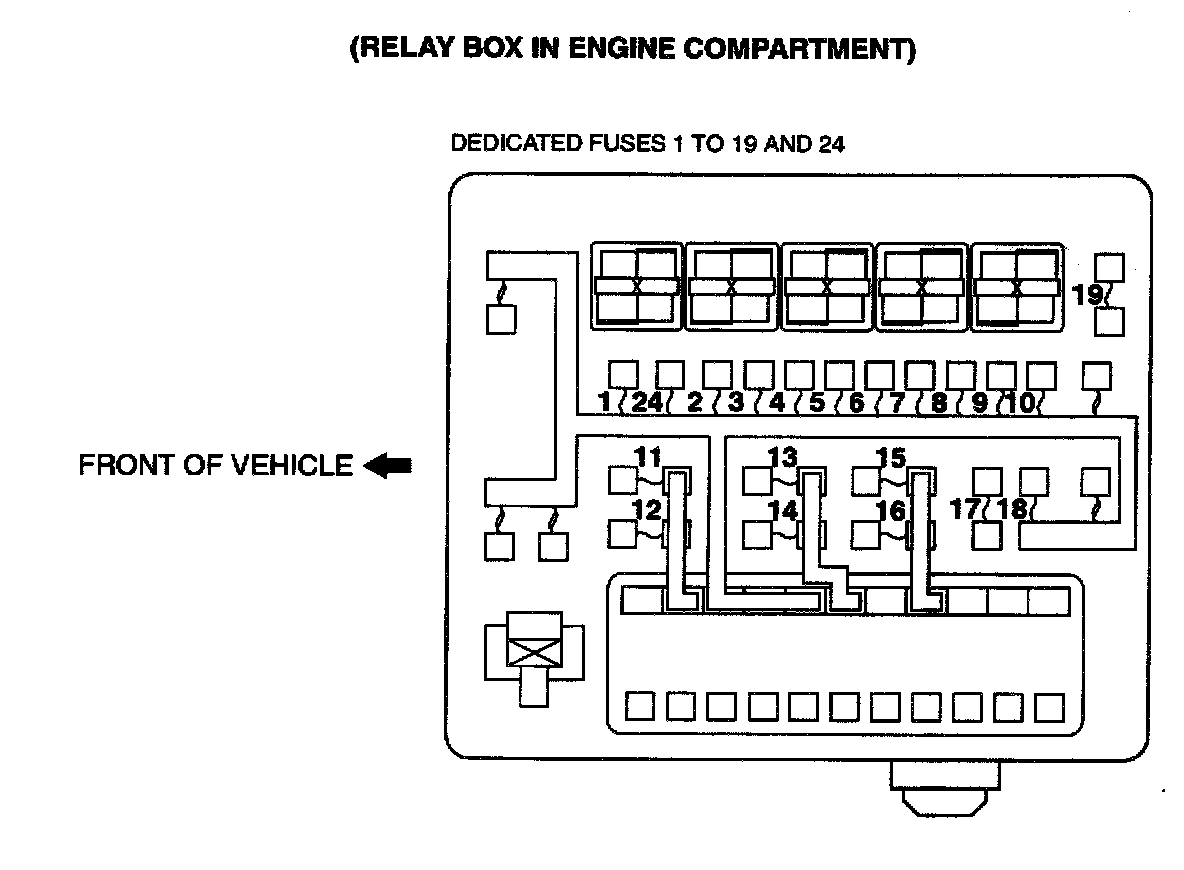

Fuse 1 - 19, 24 (Relay Box In Engine Compartment):
Fuse 20 - 23 (Connected To Junction Block):
