Rear Hub

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
]]A[[ CALIPER ASSEMBLY REMOVAL





Remove the caliper assembly and suspend it.

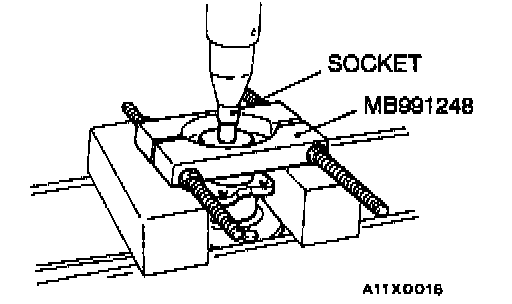

]]B[[ ABS ROTOR REMOVAL

]]C[[ BACKING PLATE REMOVAL
Remove the backing plate and suspend it.

INSTALLATION SERVICE POINT

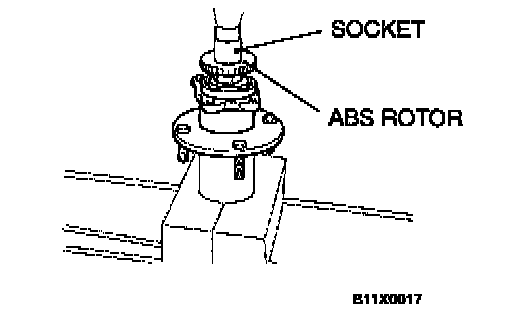

]]A[[ ABS ROTOR INSTALLATION

INSPECTION
^ Check the oil seal for crack or damage.
^ Check the ABS rotor for chipped teeth.
