Fluid - A/T: Service and Repair
AUTOMATIC TRANSAXLE FLUID (CHECK FLUID LEVEL AND CHANGE)Required special tool:
MB991502: Scan Tool (MUT-II)
Change A/T Fluid
If you have an A/T fluid changer, replace the fluid by the changer.
If you do not have an A/T fluid changer, replace the fluid by the following procedure.

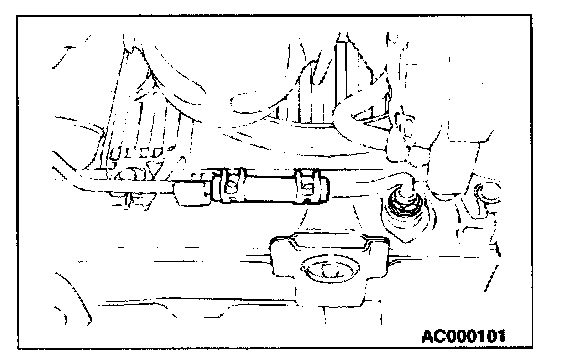

1. Disconnect the hose shown in the illustration which connects the transaxle and the oil cooler (inside the radiator). Place a container under the hose to collect the discharge.
CAUTION: The engine should be stopped within one minute after it is started. If the fluid has all drained out before then, the engine should be stopped at that point.
2. Start the engine and let the fluid drain out.
Running conditions: "N" range with engine idling
Discharge volume: Approximately 3.5 cu.dm (3.7 quarts).
3. Remove the drain plug from the bottom of the transaxle case to drain the fluid.
Discharge volume: Approximately 2.0 cu.dm (2.1 quarts)
4. Install the drain plug with a new gasket, and tighten it to the specified torque.
Tightening torque: 32 N.m (24 ft-lb)
5. Pour new A/T fluid (DIAMOND ATF SP-III or equivalent) in through the oil filler tube.
Adding volume: Approximately 5.5 cu.dm (5.8 quarts)
CAUTION: Stop pouring if the full volume of fluid cannot be poured in.
6. Repeat the procedure in Step 2. (to pump out the rest of the contaminated fluid)
NOTE: Check for contamination or burnt smell. If fluid is still contaminated or burnt; repeat steps 5 and 6 before proceeding to step 7.
7. Pour the new fluid in through the oil filler tube.
Discharge volume: Approximately 3.5 cu.dm (3.7 quarts)
8. Reconnect the hose which was disconnected in step 1 above, and firmly replace the dipstick.
9. Start the engine and run it at idle for 1 - 2 minutes.
10. Move the selector lever through all positions, and then move it to the "N" position.
11. Check that the fluid level is at the "COLD" mark on the dipstick. If the level is lower than this, pour in more fluid.

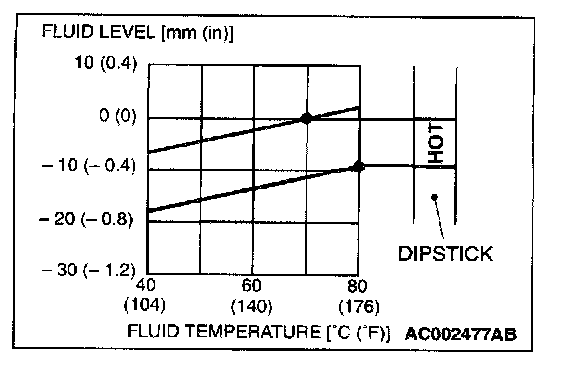

12. Drive the vehicle until the fluid temperature rises to the normal temperature [70 - 80 °C (158 - 176 °F)], and then check the fluid level again. If it takes some amount of time until the A/T fluid reaches its normal operating temperature [70 - 80 °C (158 - 176 °F)], check the A/T fluid level by referring to the diagram. The fluid level must be at the "HOT" mark.
NOTE: The A/T fluid temperature is measured with scan tool MB991502. The "COLD" level is for reference only; the "HOT" level should be regarded as the standard level.
13. Firmly insert the dipstick into the oil filler tube.
