Turn Signal Bulb: Service and Repair

BULB REPLACEMENT





1. Disconnect the connector.

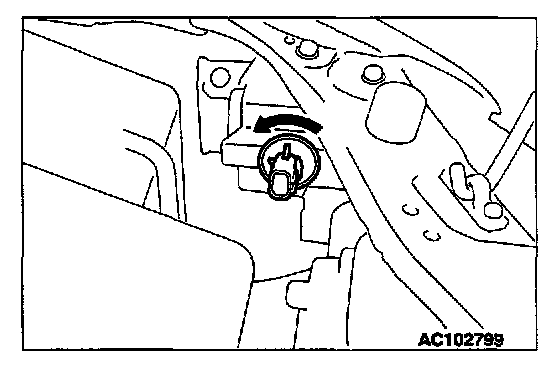

2. Turn the bulb socket counter clockwise together with the bulb, and remove the bulb.

CAUTION: If the bulb socket is not securely installed, moisture will enter the lens.

3. Install the bulb to the bulb socket, and turn the bulb socket clockwise together with the bulb.
