Turn Signal Lamp: Service and Repair

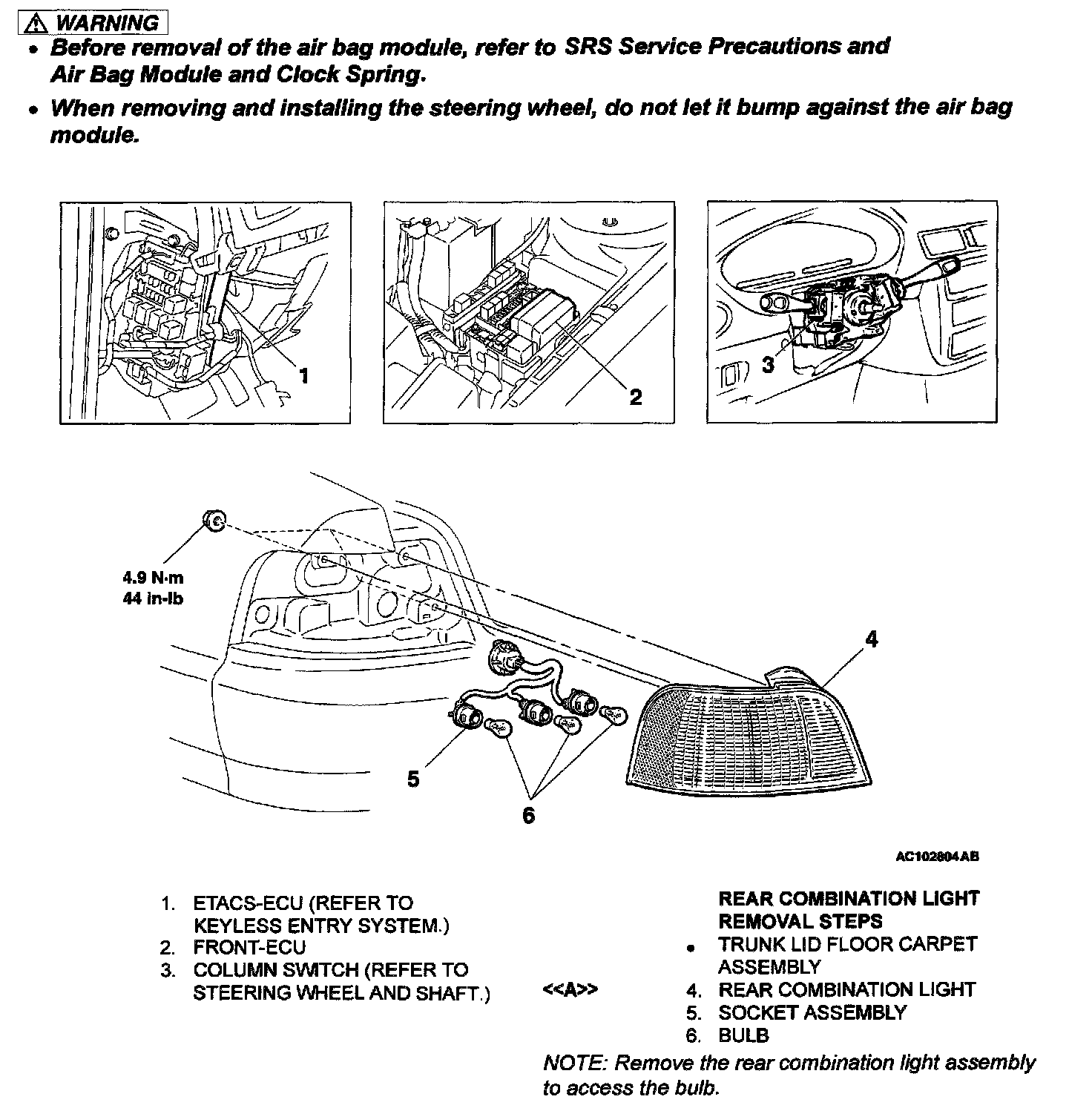

REAR COMBINATION LIGHT






REMOVAL SERVICE POINT




<> REAR COMBINATION LIGHT REMOVAL

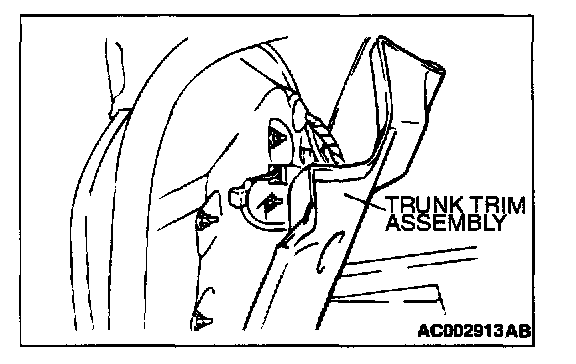

1. Remove the plastic stud cap, then turn up the trunk trim assembly as shown in the illustration. (Refer to Trims.)
2. Removal the rear combination light mounting nuts and disconnect the connector.
3. Remove the rear combination light.
