09 - Inspection Procedure

Warm Air does not Go Out From the Air Outlets

DIAGNOSIS

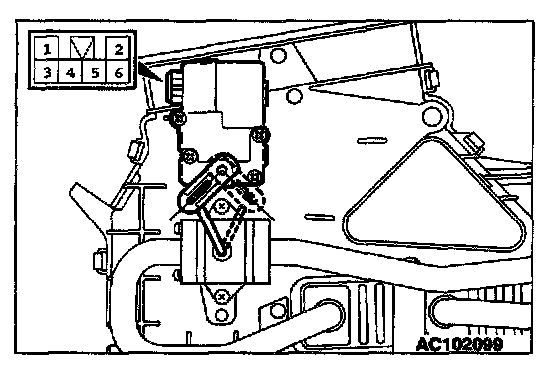

STEP 1. Check the water shut motor.

CAUTION: When the motor stops, disconnect battery cable.

Q: Does water shut motor work normally?

YES: Go to Step 2.

NO: Replace. Then go to Step 3.

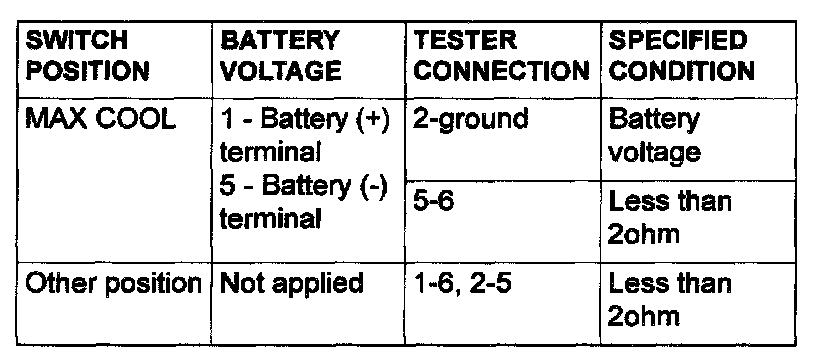

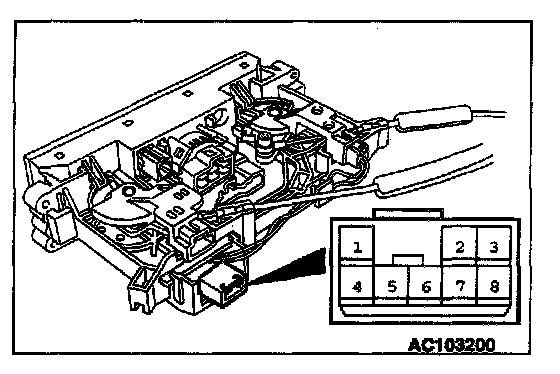

STEP 2. Check the water shut valve controller continuity.

Q: Is the water shut valve controller in good condition?

YES: Go to Step 3.

NO: Replace. Then go to Step 3.

STEP 3. Check symptoms.

Q: Is the cool air discharged?

YES: This diagnosis is complete. (If no malfunctions are not found in all steps, an intermittent malfunction is suspected. Refer to Introduction, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction.)

NO: Go to Step 1.
