Muffler: Service and Repair

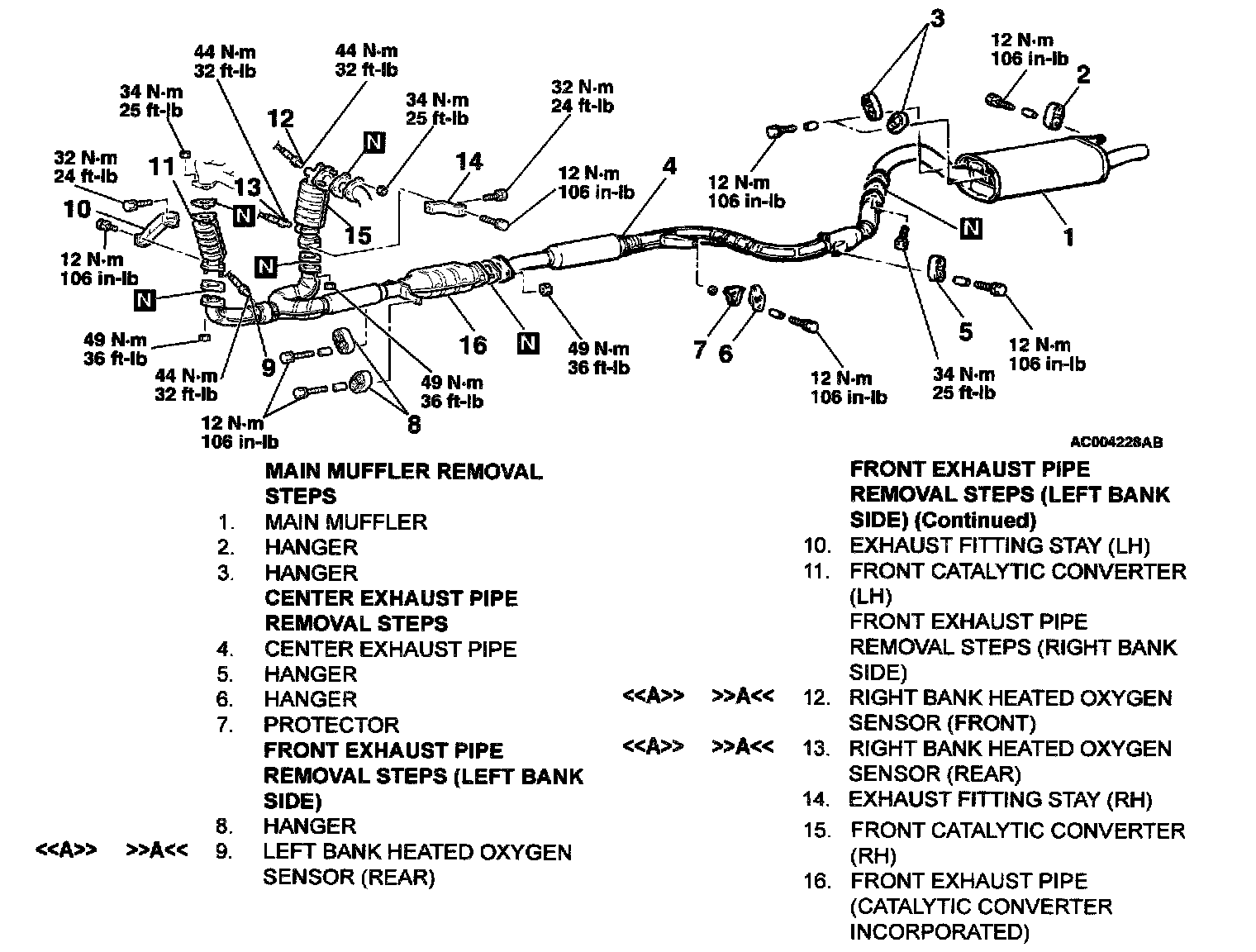

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER




Required Special Tool:
- MD998770: Oxygen sensor wrench


REMOVAL SERVICE POINT




[[A]] LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL
Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT




]]A[[ RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.
