Intake Manifold Plenum and Throttle Body Assembly

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
]]A[[ THROTTLE BODY GASKET INSTALLATION

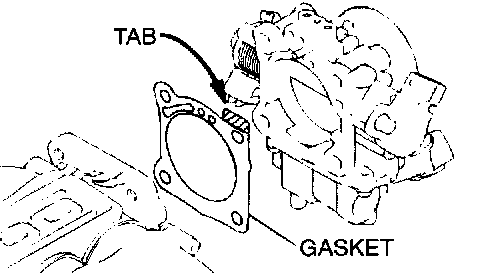

Install the gasket so that the tab is positioned as shown in the illustration.
