Home >> Mitsubishi >> 2002 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Rotor/Disc >> Front Disc Brake Assembly

Front Disc Brake Assembly

FRONT DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

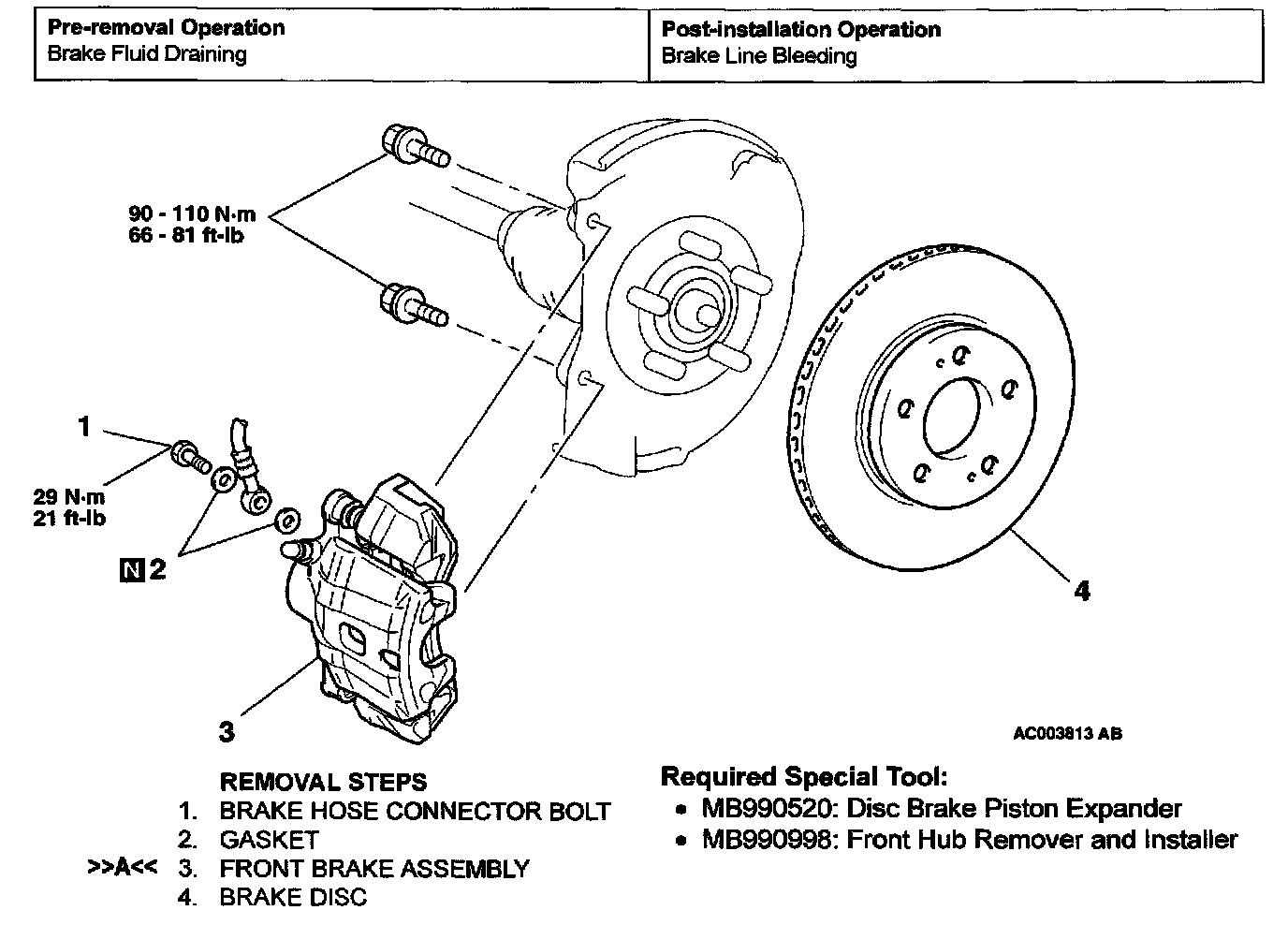

Replacement

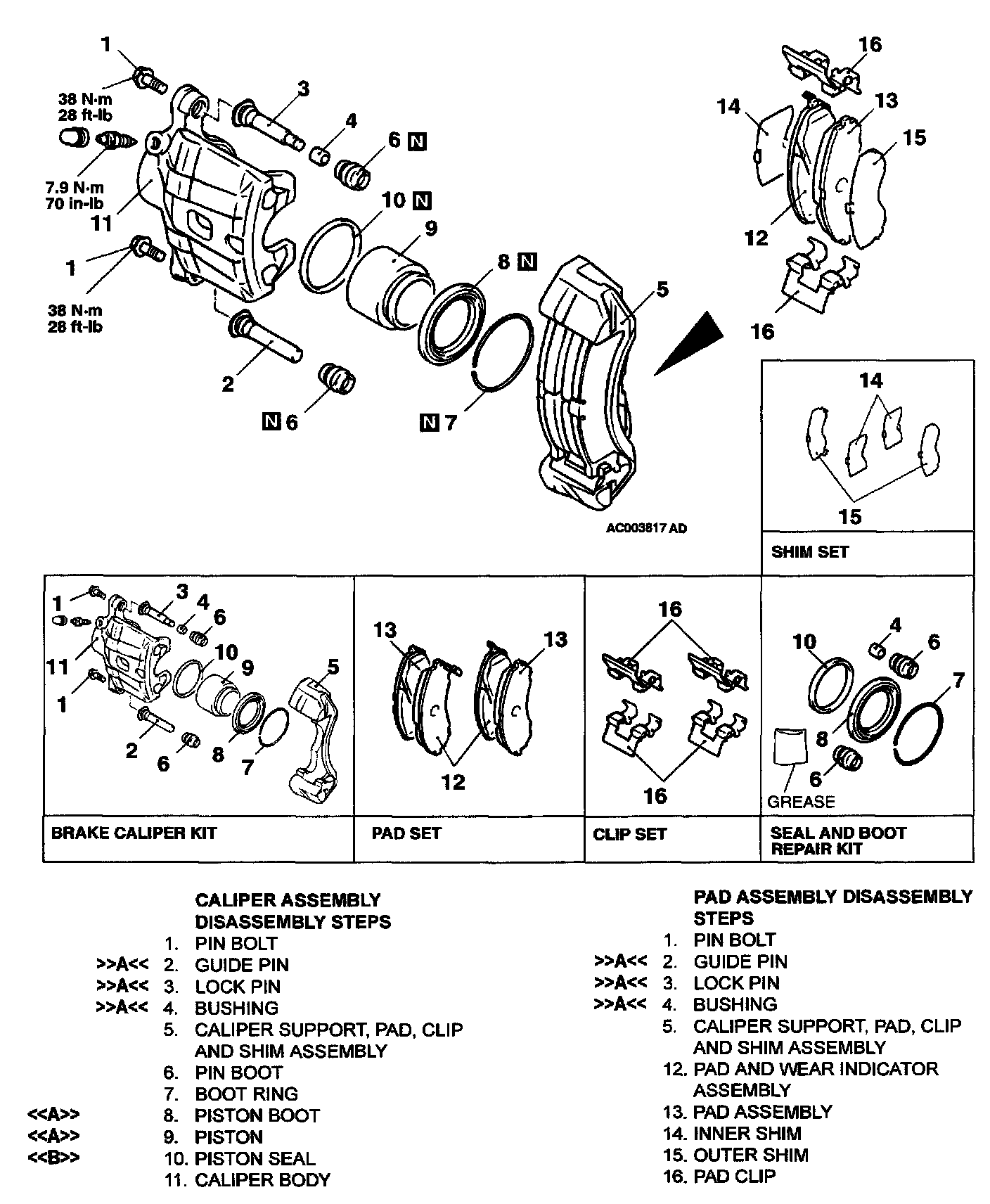

Overhaul
