Home >> Mitsubishi >> 2002 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

Turn Signals

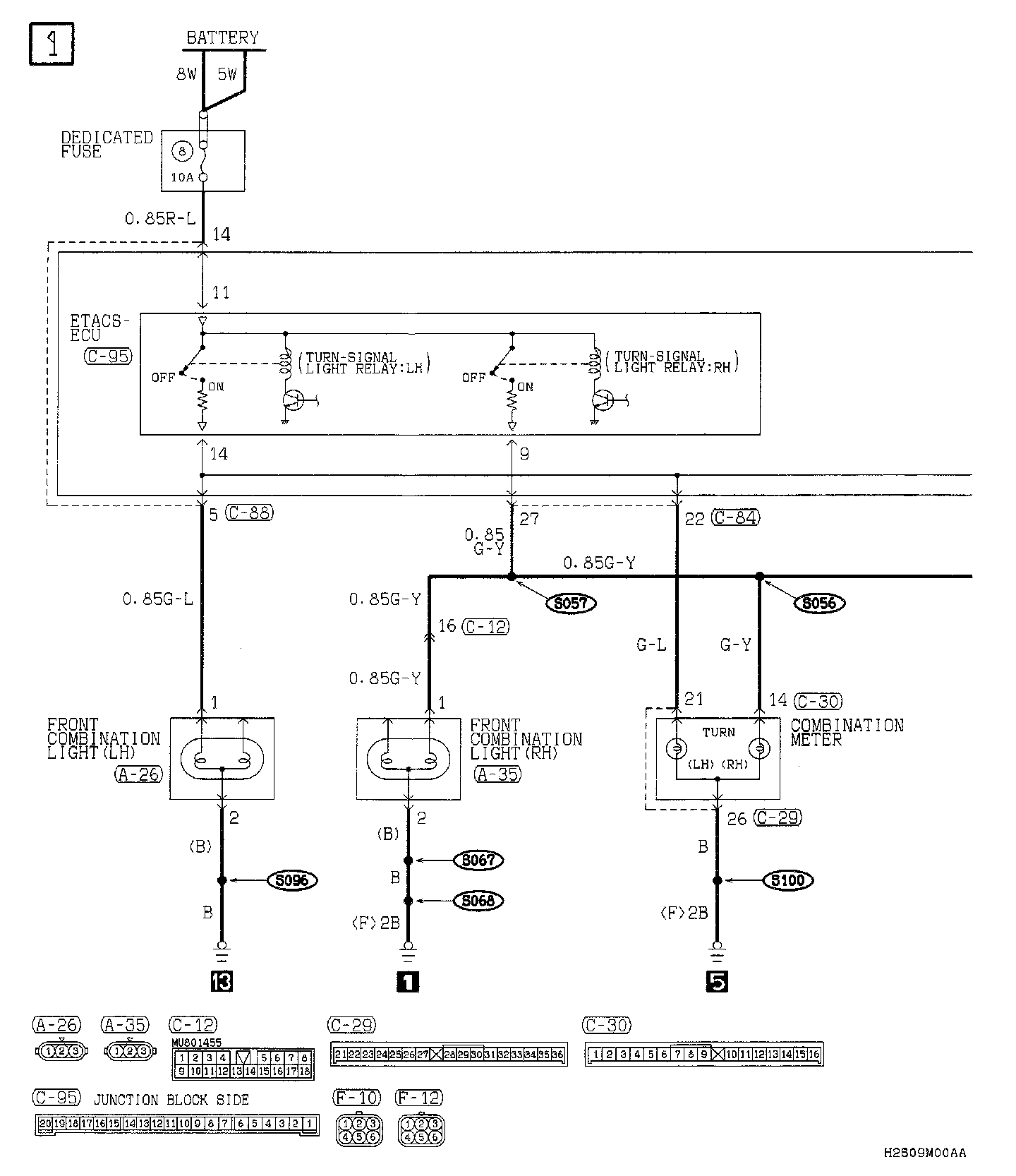

Turn-Signal & Hazard Warning Lights Part 1:

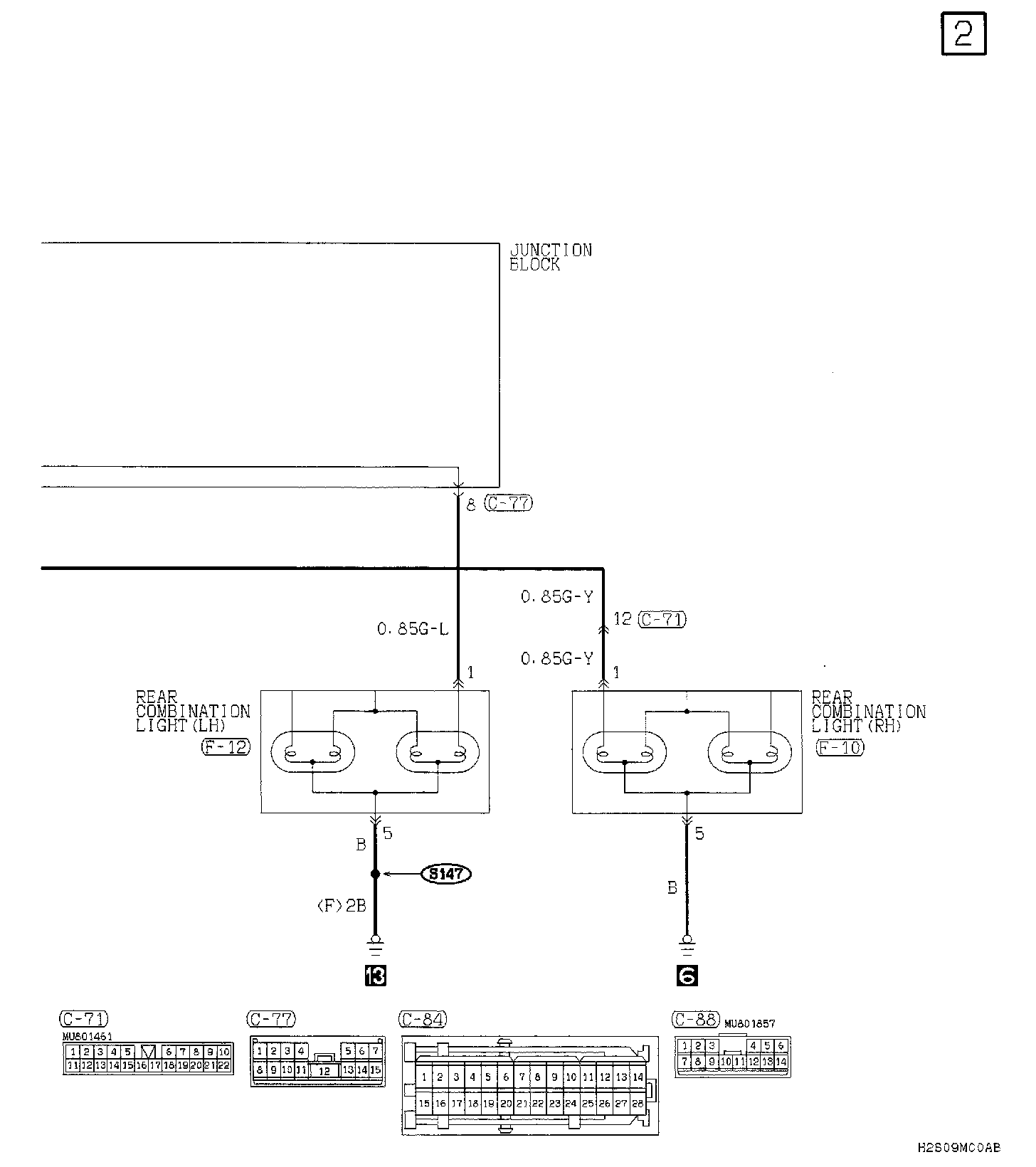

Part 2:

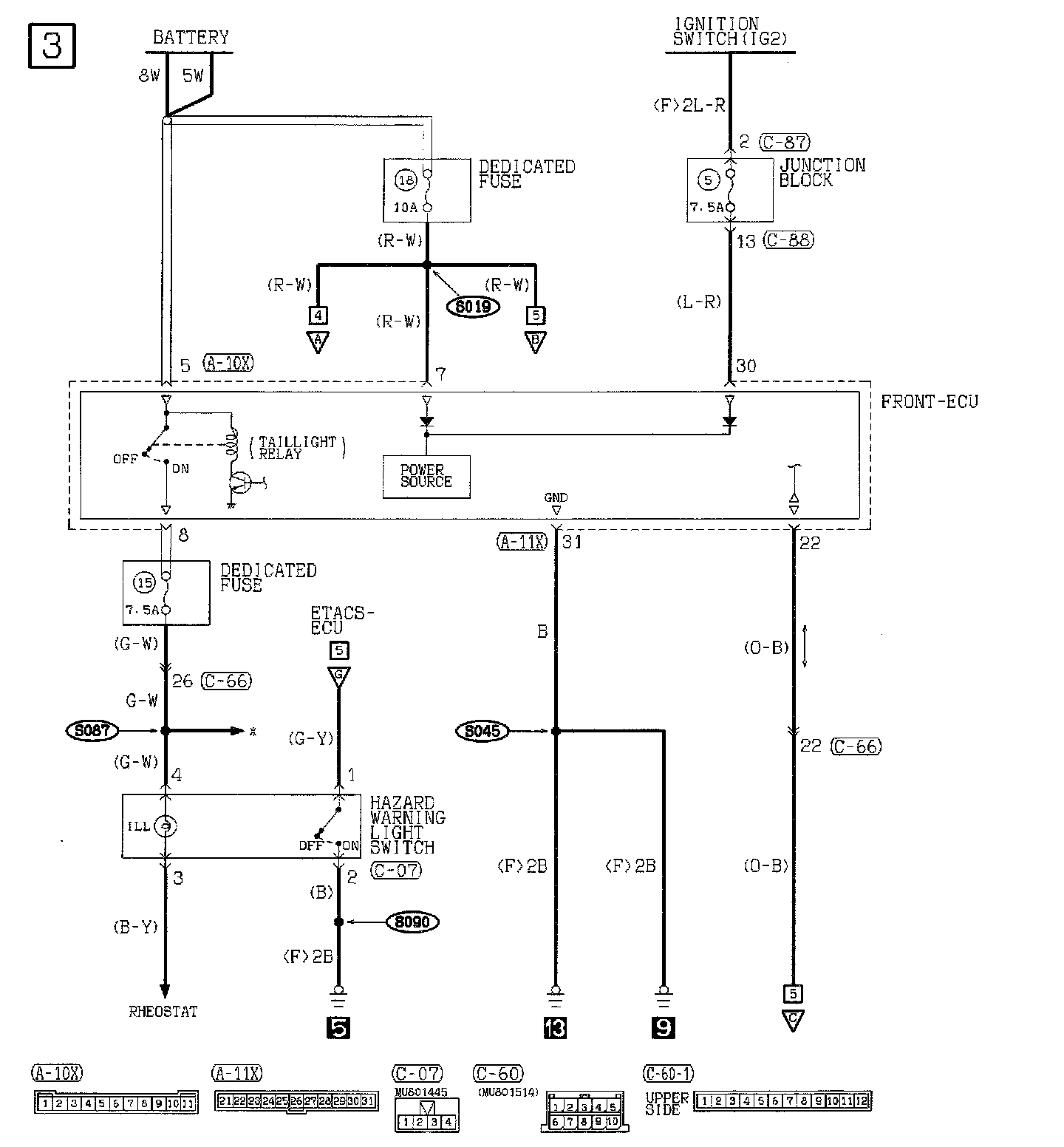

Part 3:

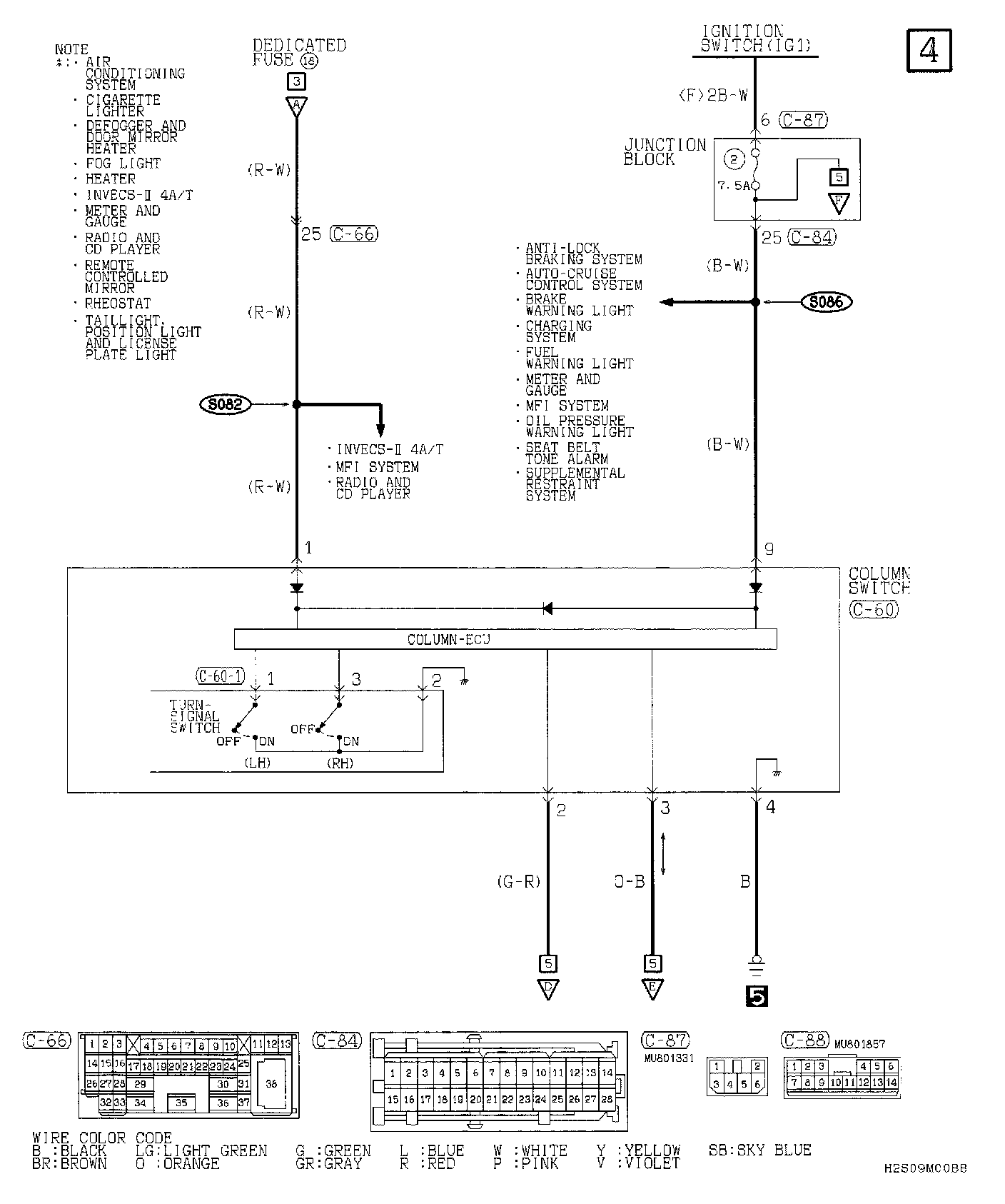

Part 4:



Part 5:
