Home >> Mitsubishi >> 2002 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats

Seats

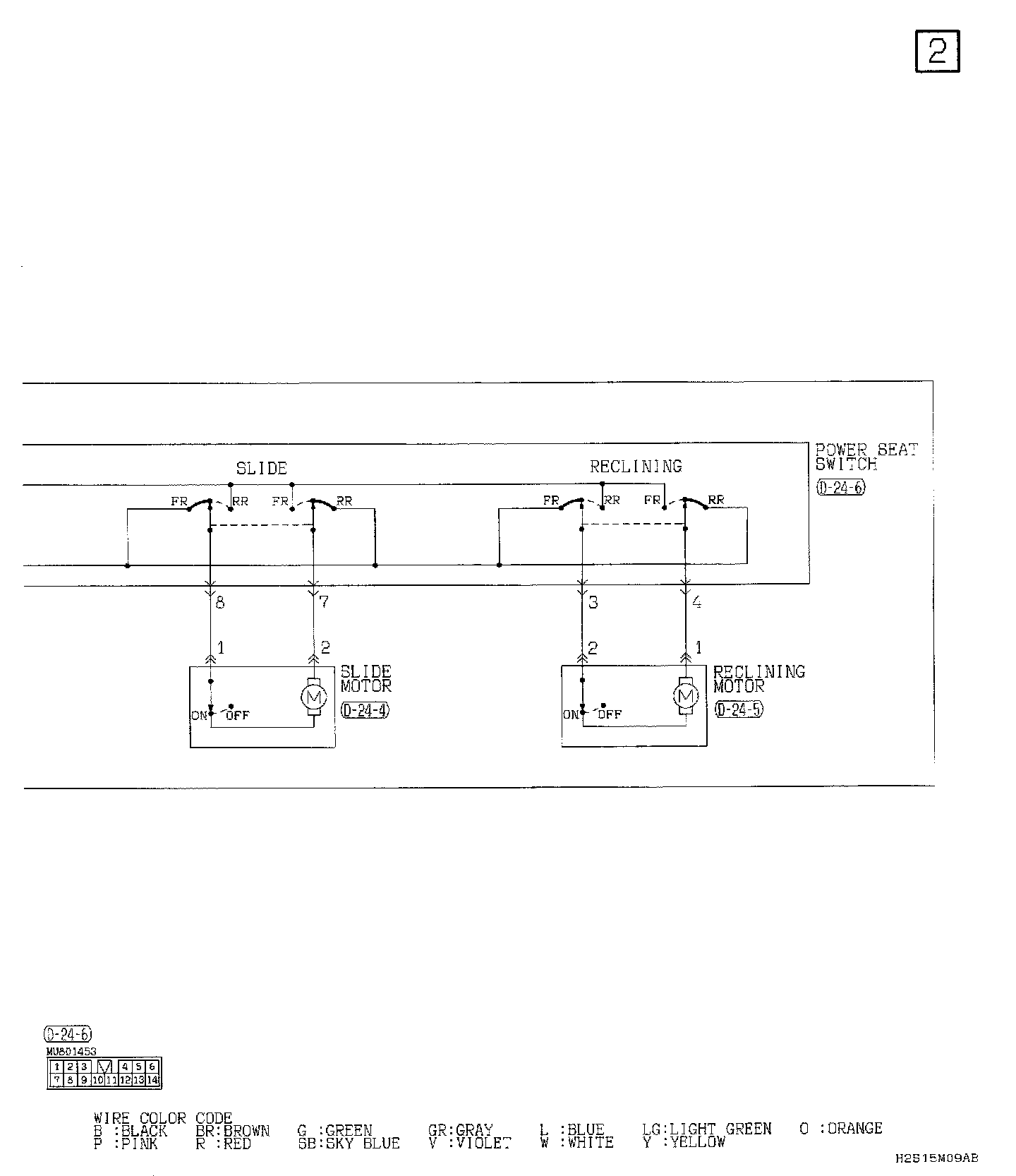

Power Seat Part 1:

Part 2:
