Mitsubishi
>>
2002
>>
Galant ES V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

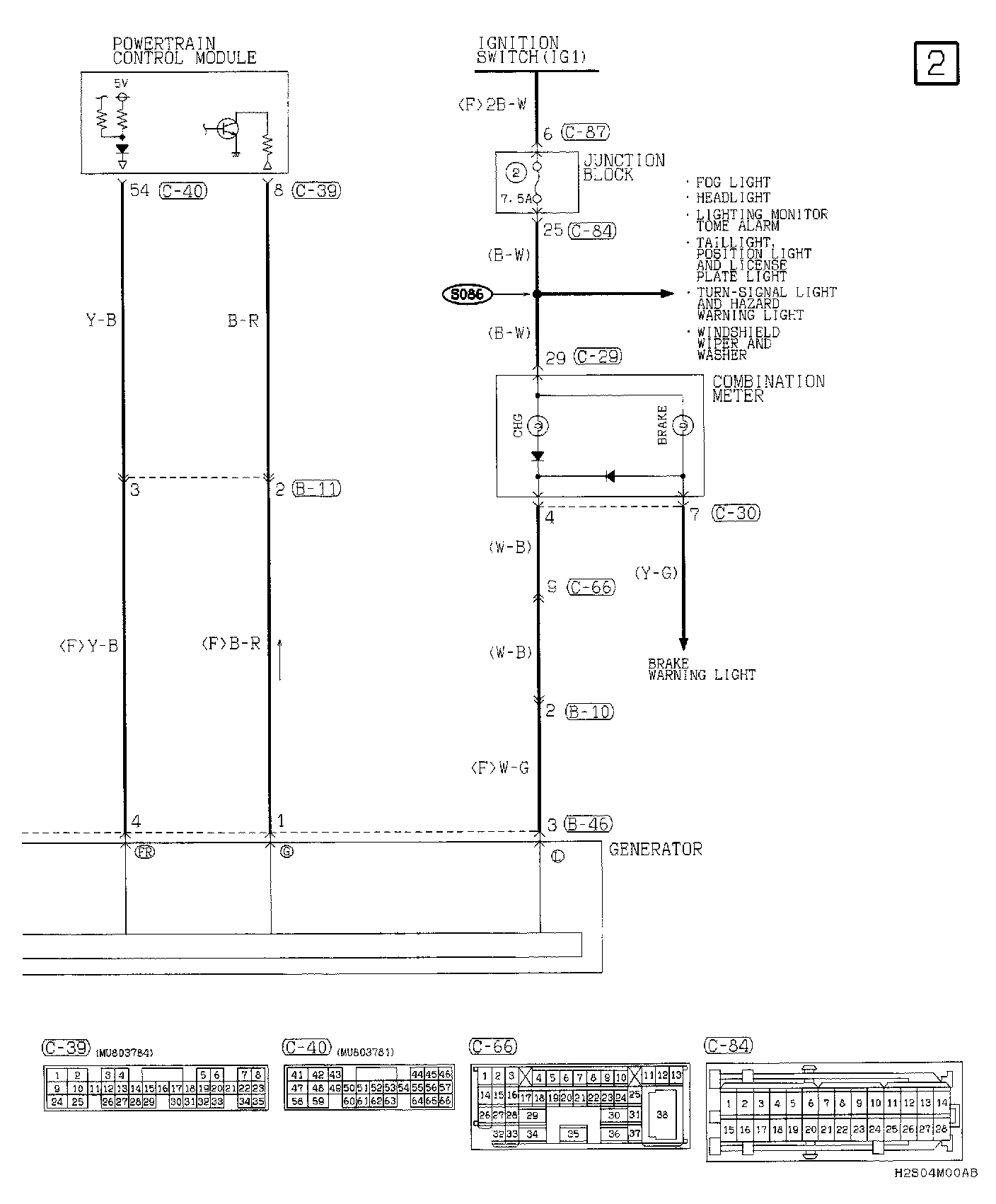

Charging System Part 1:
Part 2:
