Stiffener and Damp Sheet Application Locations

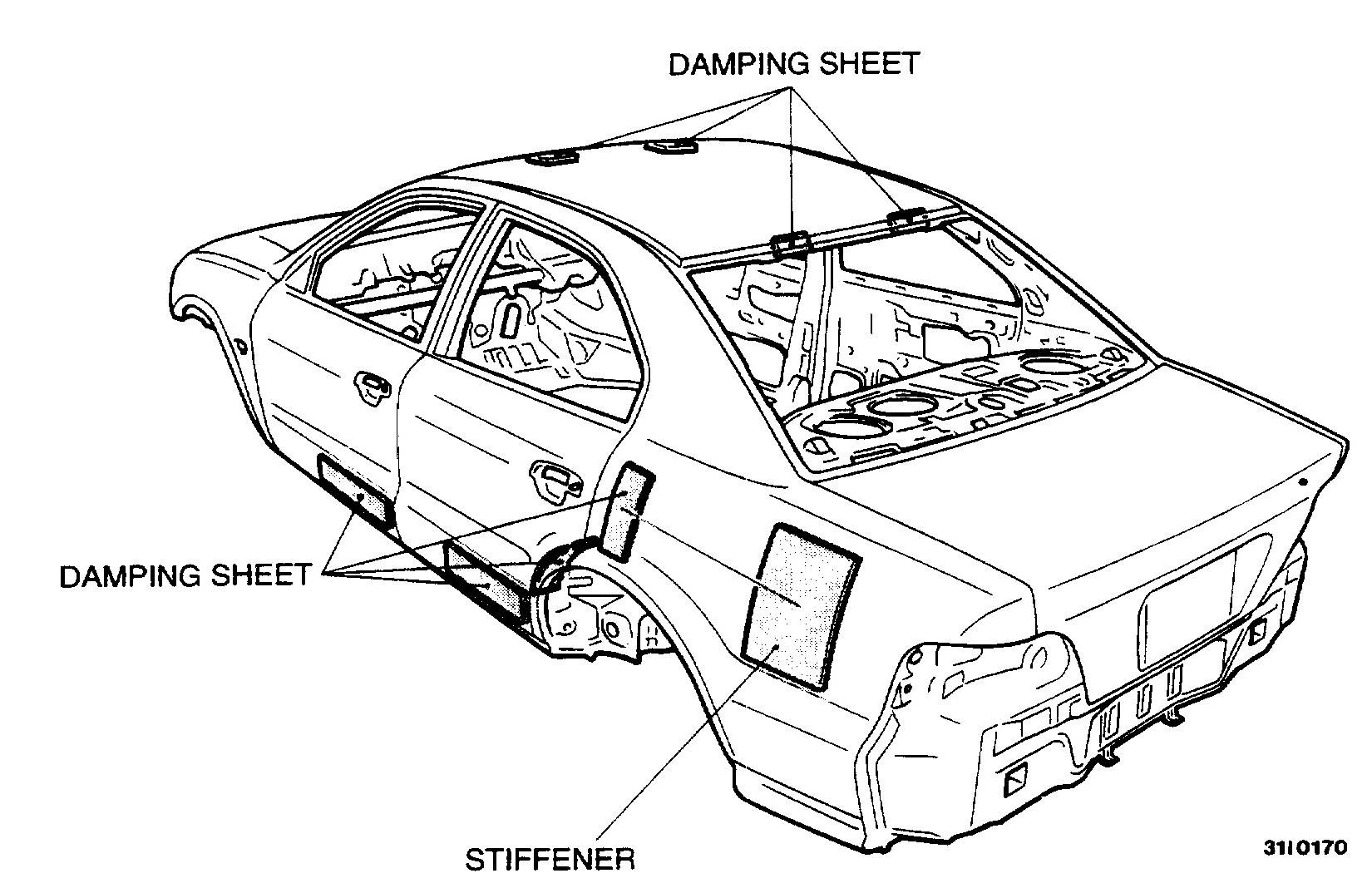

STIFFENER AND DAMPING SHEET APPLICATION LOCATIONS




Stiffeners and damping sheets have been attached on the inside of the side outer panels, roof panel and front and rear door outer panels in order to increase the surface rigidity, and the anti-vibration effects also reduce noise.
