Home >> Mitsubishi >> 2002 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Rear Seat

Rear Seat

REAR SEAT ASSEMBLY




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

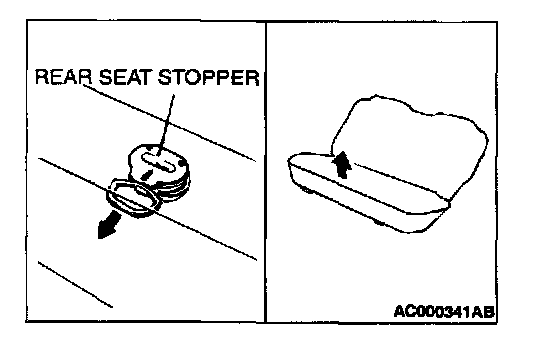

<> REAR SEAT CUSHION REMOVAL
While pulling the rear seat stopper pulled, lift up the seat cushion to remove it.

INSTALLATION SERVICE POINT

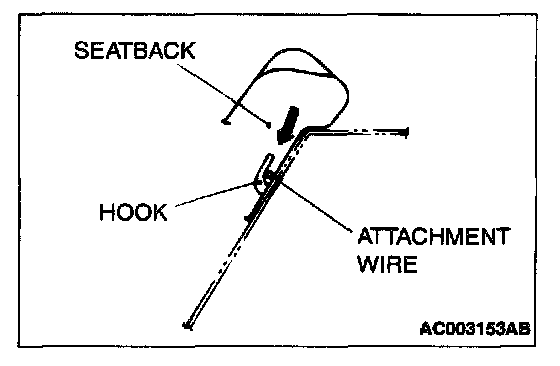

<> REAR SEATBACK INSTALLATION
Push the seatback in the direction indicated in the illustration; then securely attach the attachment wire to the body side hook and install the seatback.

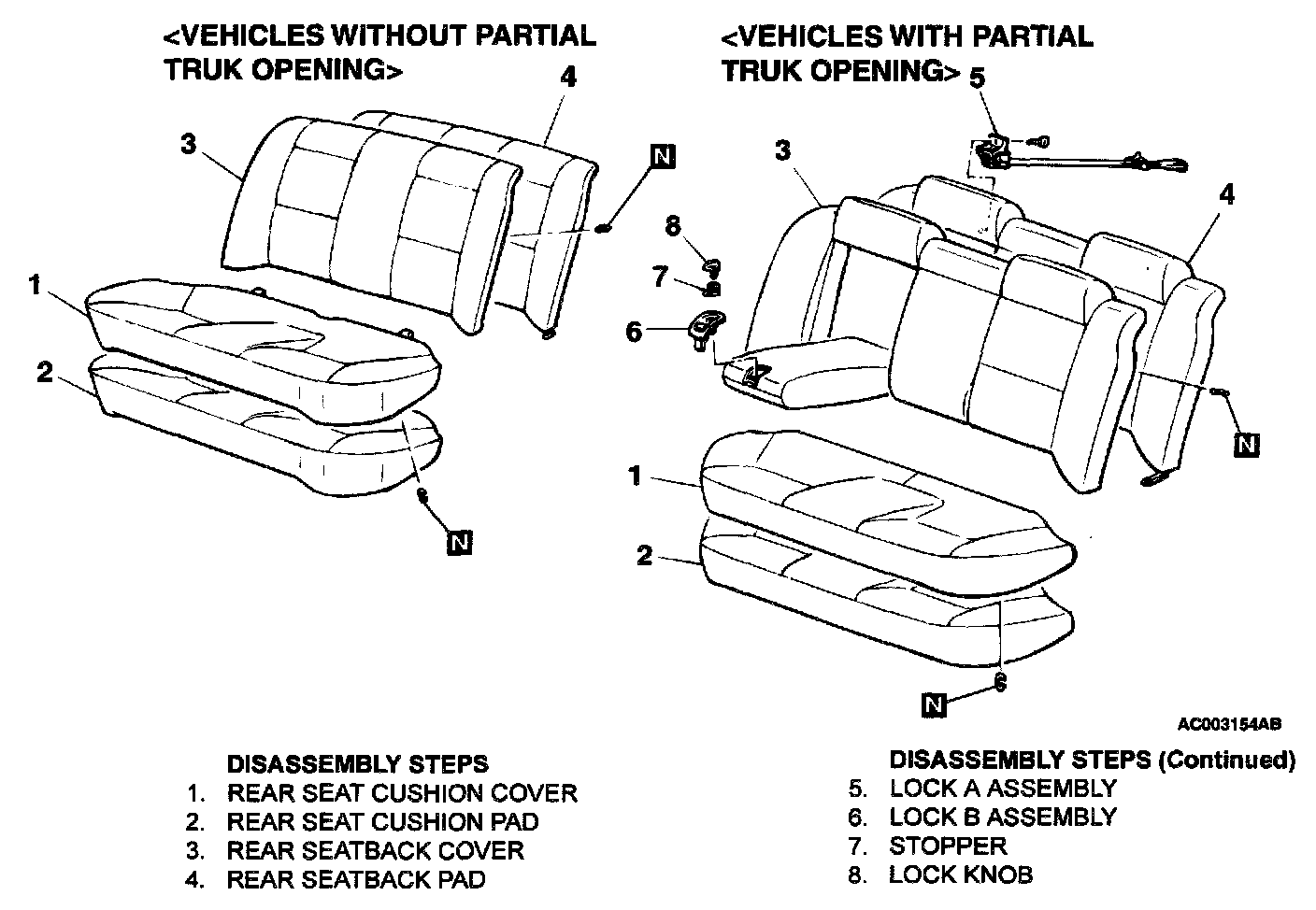

DISASSEMBLY AND ASSEMBLY
