Trunk / Liftgate: Service and Repair

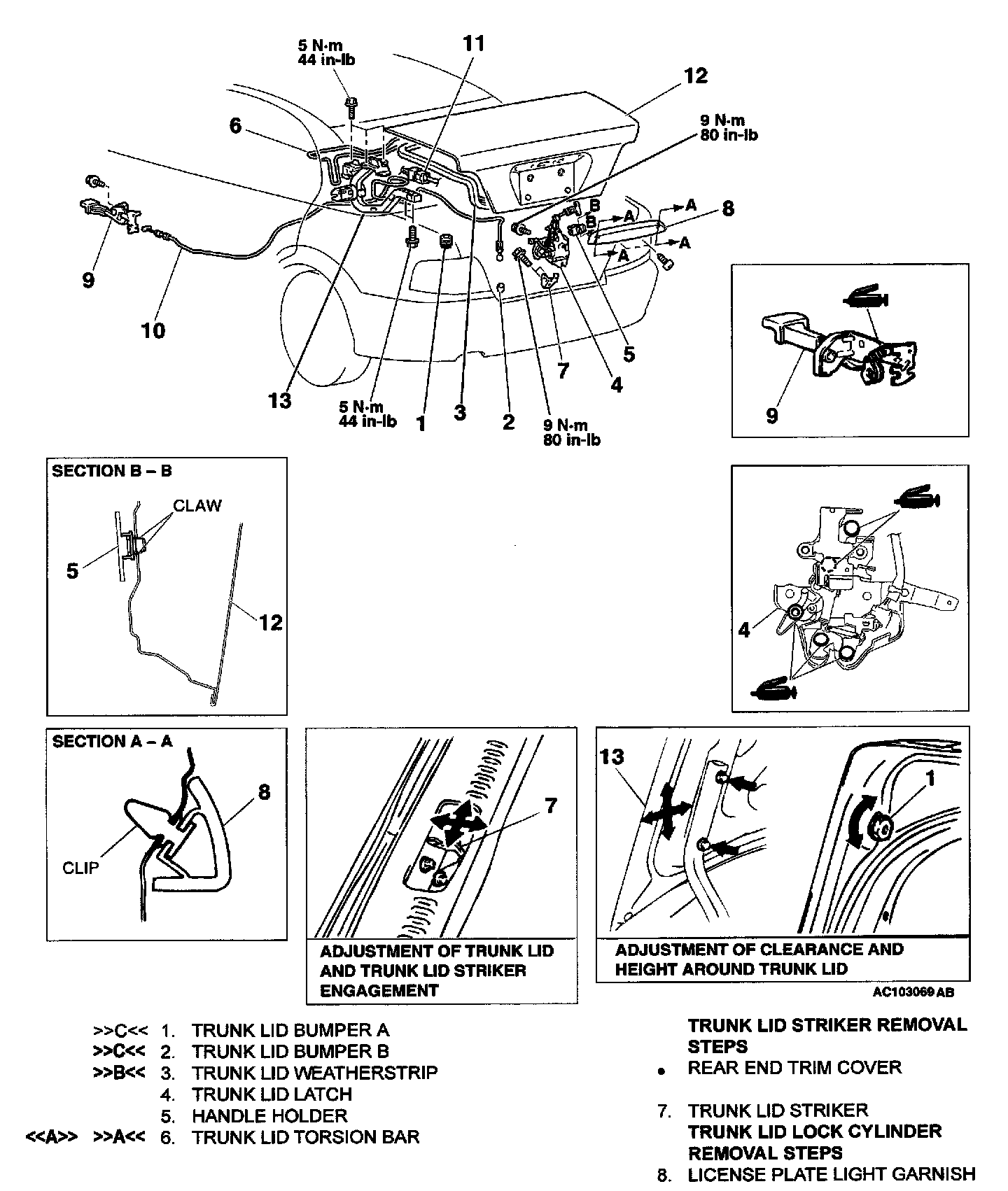

TRUNK LIDTrunk Lid / Part 1:

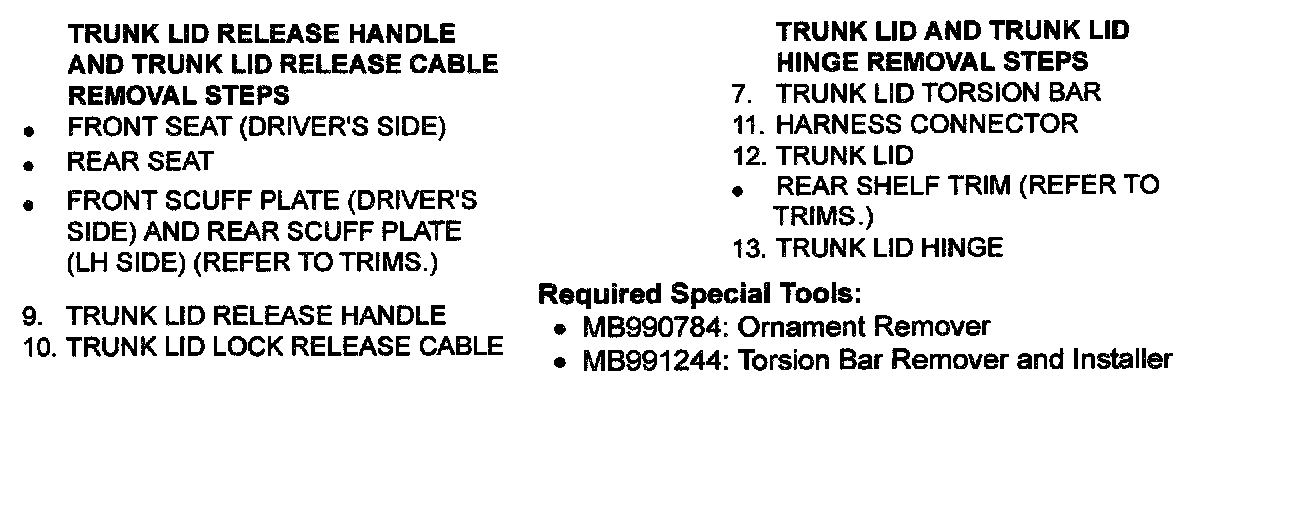

Trunk Lid / Part 2:
REMOVAL SERVICE POINT
[[A]] TRUNK LID TORSION BAR REMOVAL
1. Install the special tool MB991244 as shown in the figure. Push down the special tool MB991244 to remove the trunk lid torsion bar from the link.
2. Remove the trunk lid torsion bar from the trunk lid hinge notches and holes.
INSTALLATION SERVICE POINTS
]]A[[ TRUNK LID TORSION BAR INSTALLATION
1. Install the trunk lid torsion bar to the trunk lid hinge notches and holes.
2. Install special tool MB991244 as shown in the figure. Push down special tool MB991244 to install the trunk lid torsion bar in the link.
]]B[[ TRUNK LID WEATHERSTRIP INSTALLATION
Install the trunk lid weatherstrip so that the marking and the joint are aligned with the body center line.

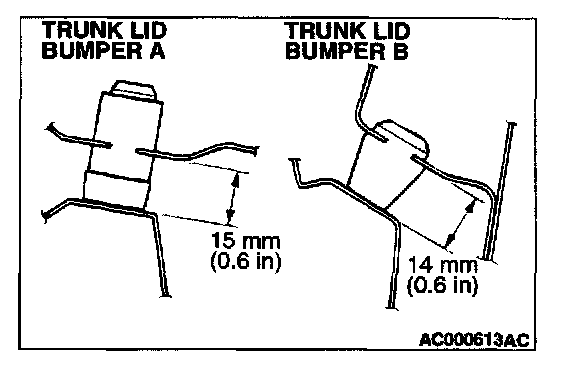

]]C[[ TRUNK LID BUMPER B/TRUNK LID BUMPER A INSTALLATION
Install the trunk lid bumper A and B as shown in the figure.
