Air Bag Modules and Clock Spring
CAUTION:1. Never attempt to disassemble or repair the air bag modules or clock spring. if faulty, replace it.
2. Do not drop the air bag modules or clock spring or allow contact with water, grease or oil.
Replace It if a dent, crack, deformation or rust Is detected.
3. The air bag modules should be stored on a flat surface and placed so that the pad surface is facing upward.
Do not place anything on top of it.
4. Do not expose the air bag modules to temperatures over 93 °C (200 °F).
5. After deployment of an air bag, replace the air bag modules. Inspect the clock spring, and replace it with a new part if it is faulty.
6. Wear gloves and safety glasses when handling air bags that have already deployed.
7. An undeployed air bag module should only be disposed of in accordance with the procedures.

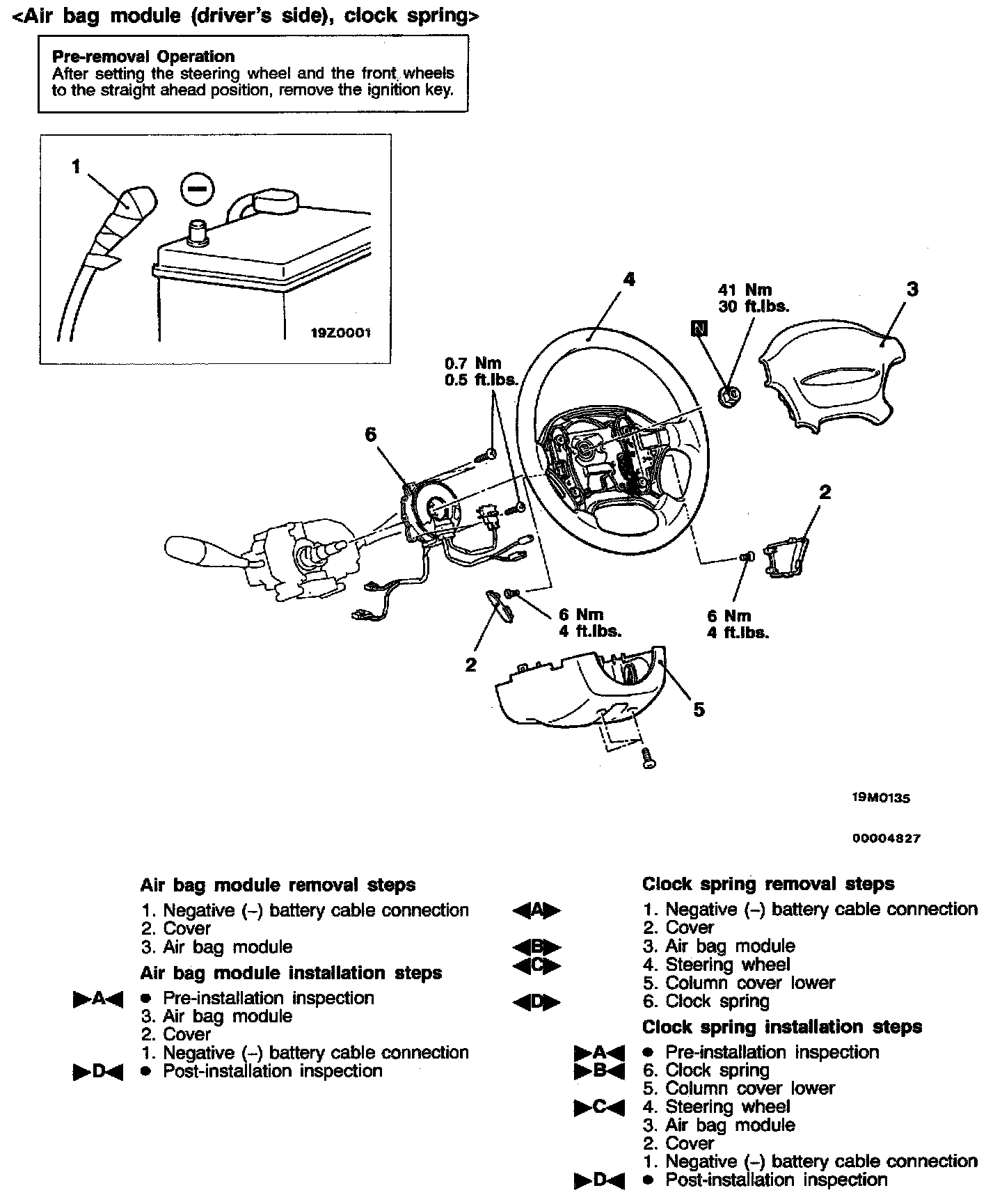

Air Bag Module (Driver's Side), Clock Spring:

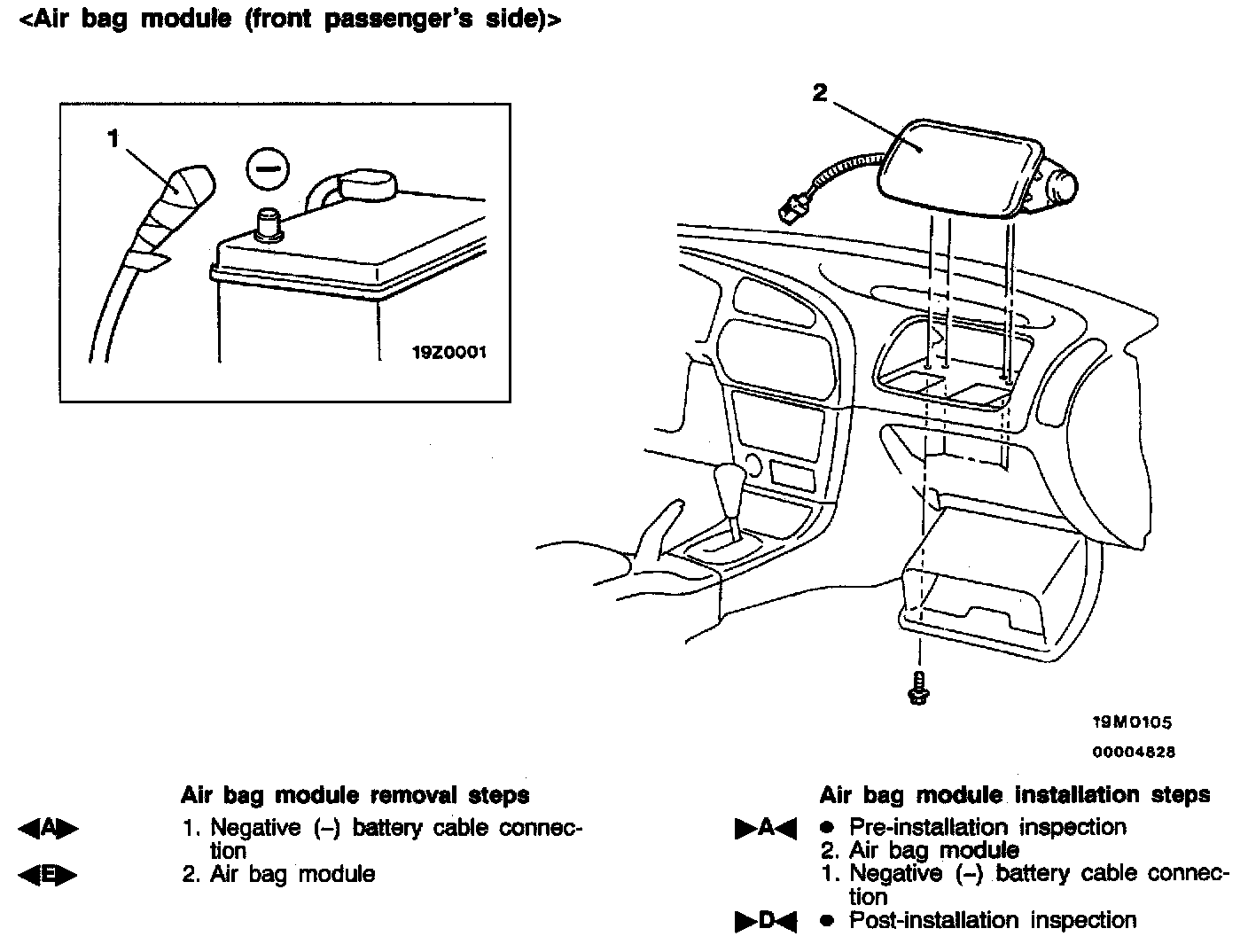

Air Bag Module (Front Passenger's Side):
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
NEGATIVE (-) BATTERY CABLE DISCONNECTION
Disconnect the negative battery cable from the battery and tape the terminal.
WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.
AIR BAG MODULE REMOVAL (DRIVER'S SIDE)
When disconnecting the connector of the clock spring from the air bag module, press the air bag's lock toward the outer side to spread it open. Use a flat-tipped screwdriver to pry gently as shown in the figure, to remove the connector.
CAUTION:
1. When disconnecting the air bag module-clock spring connector, take care not to apply excessive force to it.
2. The removed air bag module should be stored in a clean, dry place with the pad cover face up.
CAUTION: Do not hammer on the steering wheel. Doing so may damage the collapsible column mechanism.
CAUTION: The removed clock spring should be stored in a clean, dry place.
CAUTION: The removed air bag module should be stored in a clean, dry place with the pad cover face up.
INSTALLATION SERVICE POINTS
>A< PRE-INSTALLATION INSPECTION
1. When installing the new air bag modules and clock spring, refer to "INSPECTION".
CAUTION: Dispose of air bag modules only according to the specified procedure.
2. Connect the battery (-) terminal.
3. Connect the scan tool to the data link connector.
CAUTION: Turn off the ignition switch before connecting or disconnecting the scan tool.
4. Turn the ignition switch to "ON" position.
5. Conduct diagnostic test using the scan tool to ensure entire SRS operates properly.
6. Turn the ignition switch to "LOCK" position. Disconnect the negative battery cable and tape the terminal to prevent accidental connection and air bag(s) deployment.
CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.
>B< CLOCK SPRING INSTALLATION
Align the mating marks of the clock spring. Turn the front wheels to the straightahead position. Then install the clock spring to the column switch.
Mating Mark Alignment
Turn the clock spring clockwise fully. Then turn it back approx. 3 4/5 turns counterclockwise to align the mating marks.
CAUTION: If the clock spring's mating marks are not properly aligned, the steering wheel may not rotate completely during a turn, or the flat cable within the clock spring may be severed, obstructing normal operation of the SRS and possibly leading to serious injury to the vehicle's driver.
>C< STEERING WHEEL INSTALLATION
1. Before installing the steering wheel, be sure to first turn the vehicle's front wheels to the straight-ahead position and align the mating marks of the clock spring.
CAUTION: When installing the steering wheel, ensure that the harness of the clock spring does not become caught or tangled.
2. After securing the steerings wheel, turn the steering wheel all the way in both directions to confirm that steering wheel rotation is normal.
>D< POST-INSTALLATION INSPECTION
1. Turn the ignition switch to "ON" position.
2. Does the "SRS" warning light illuminate for about 7 seconds, and then remain off for at least 5 seconds after turning off?
3. If yes, SRS system is functioning properly.
If no, consult TROUBLESHOOTING.
