Electrical Diagrams

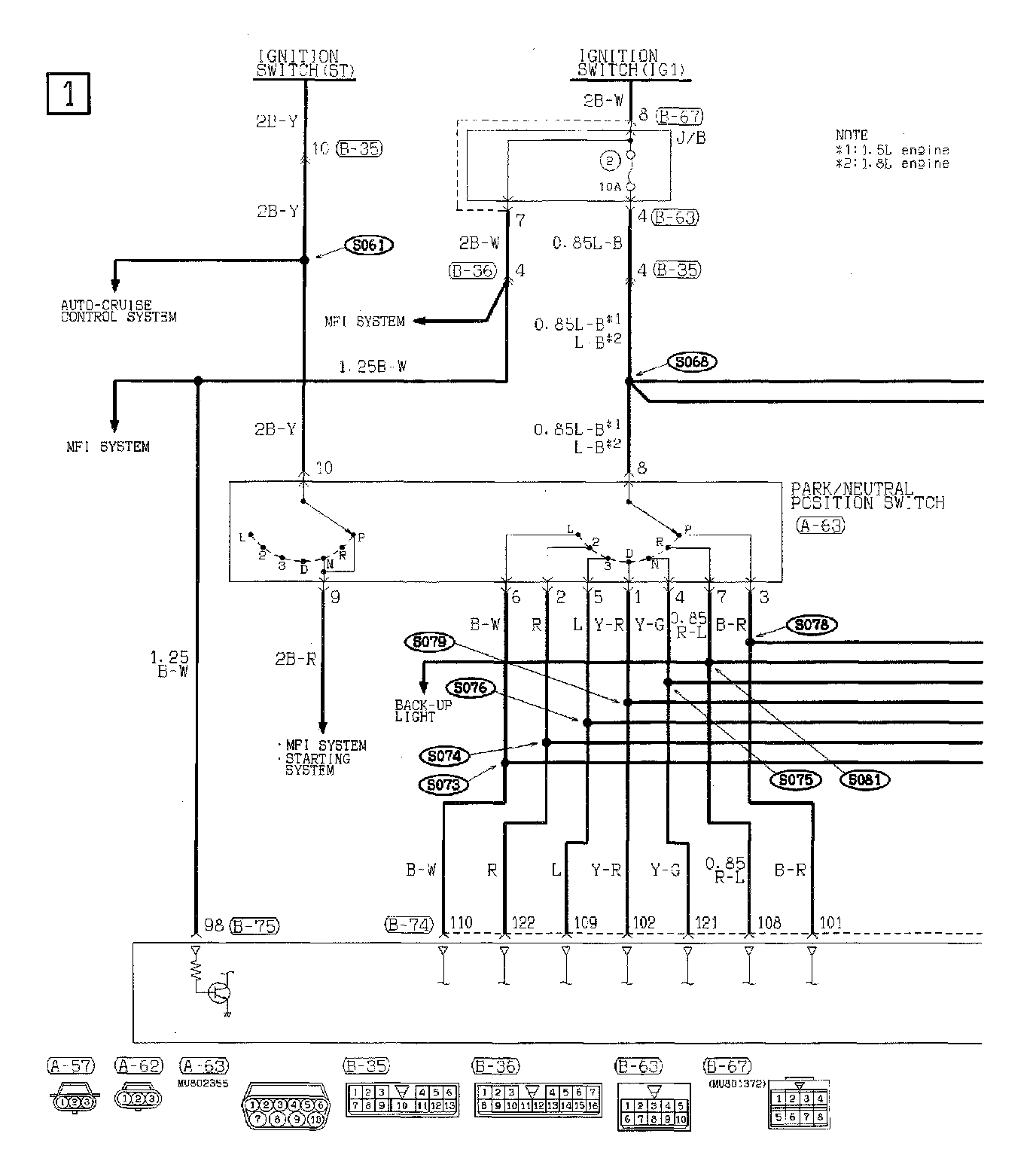

ELC 4-Speed Automatic Transaxle Part 1:

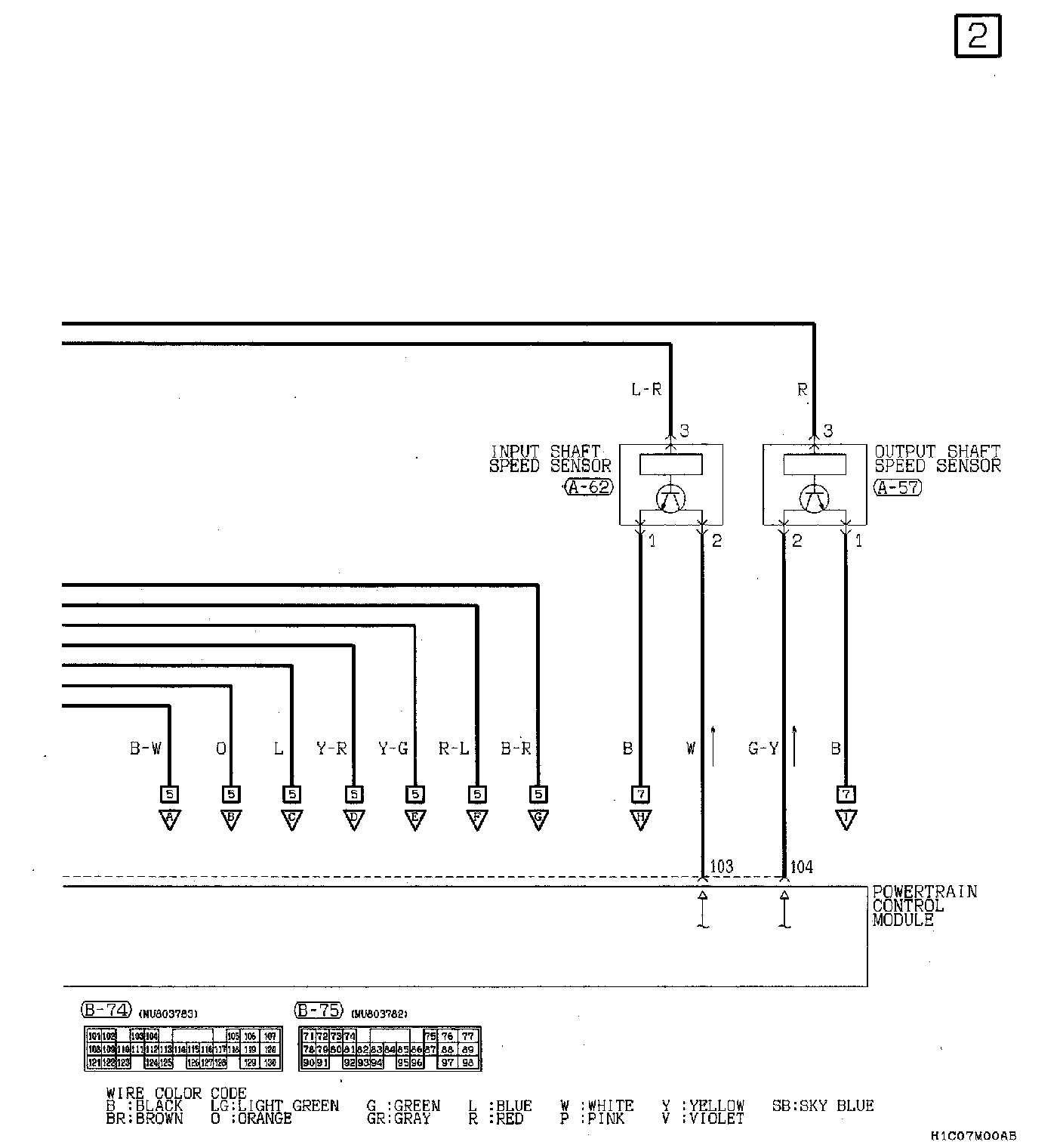

ELC 4-Speed Automatic Transaxle Part 2:

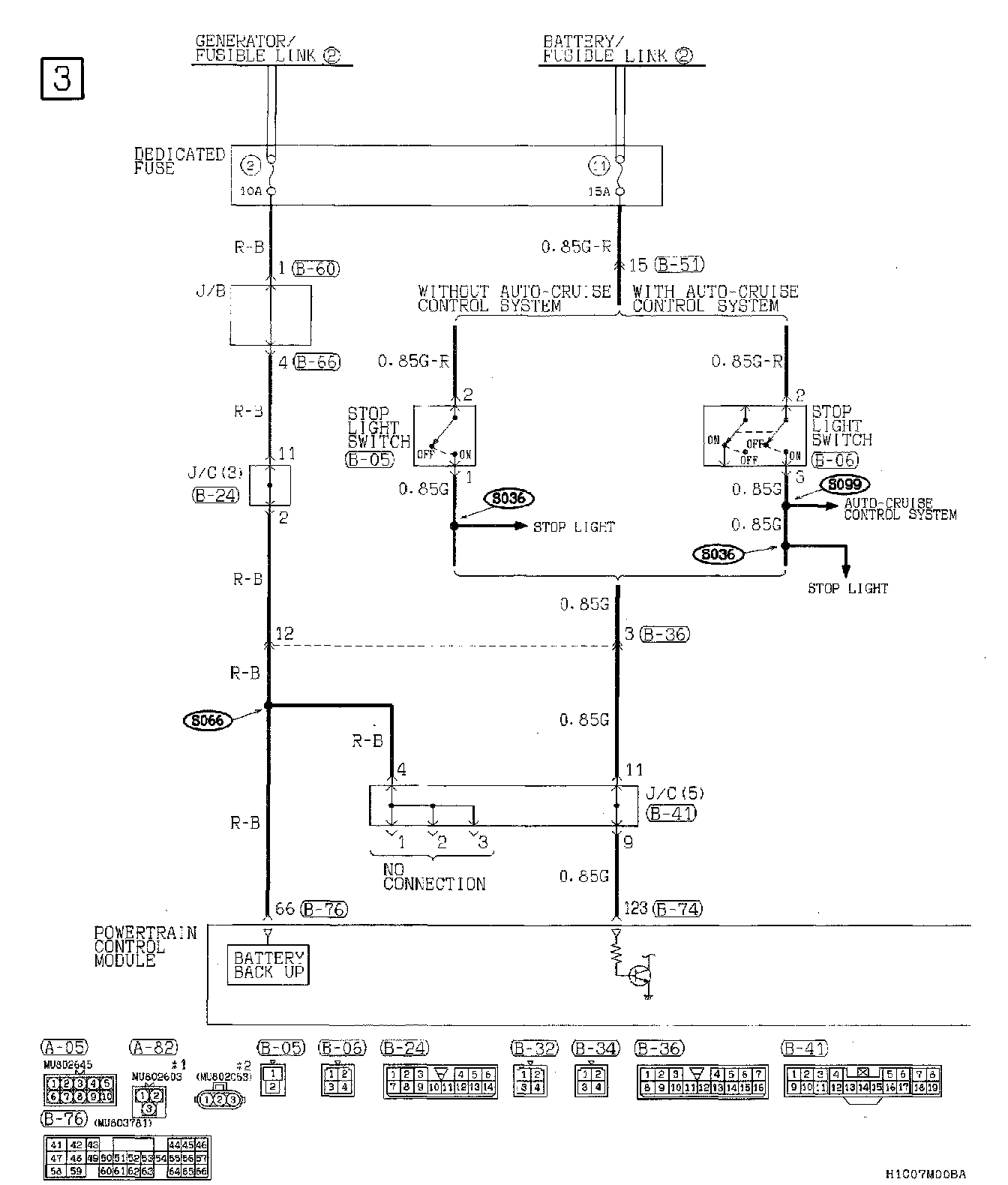

ELC 4-Speed Automatic Transaxle Part 3:

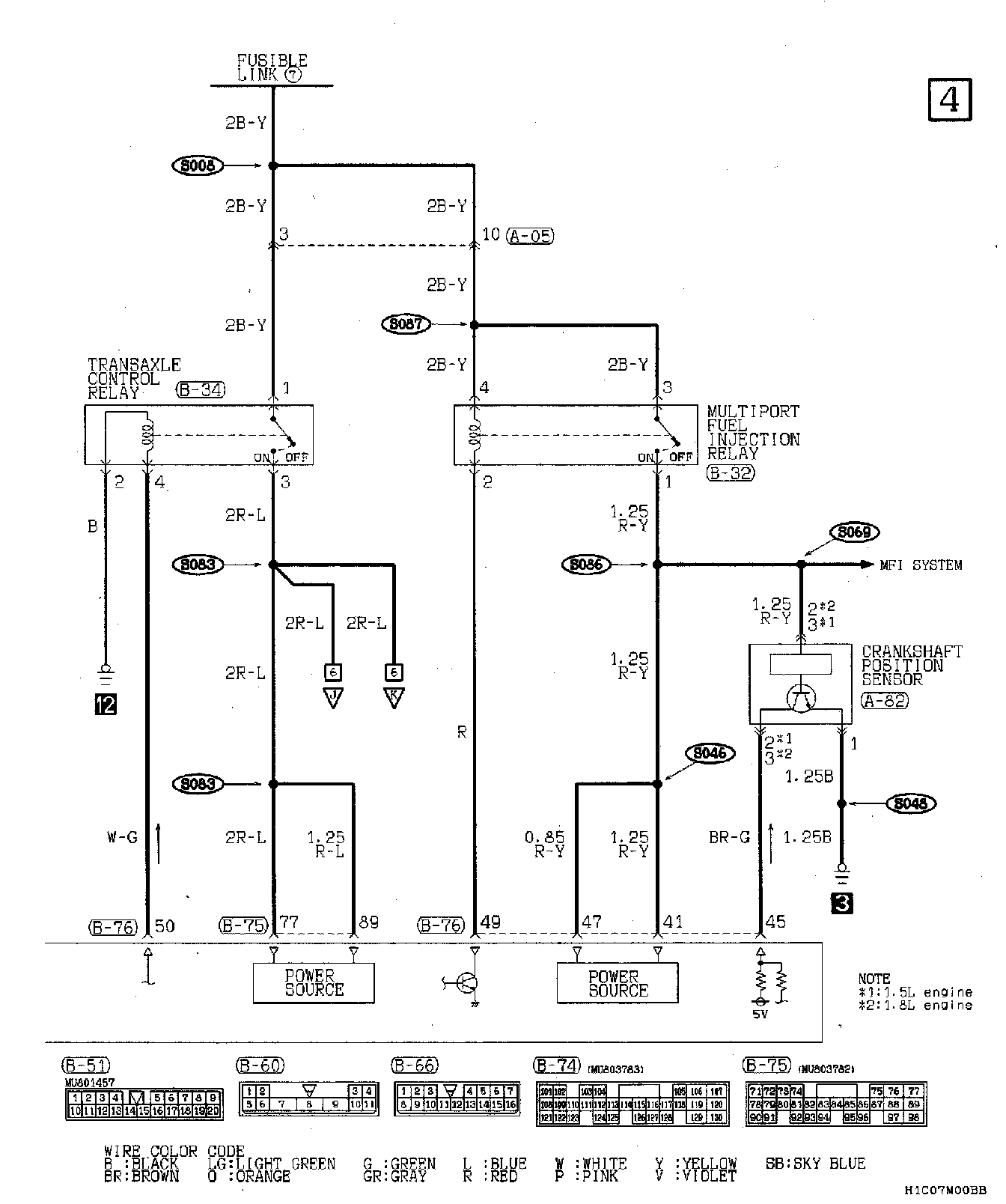

ELC 4-Speed Automatic Transaxle Part 4:

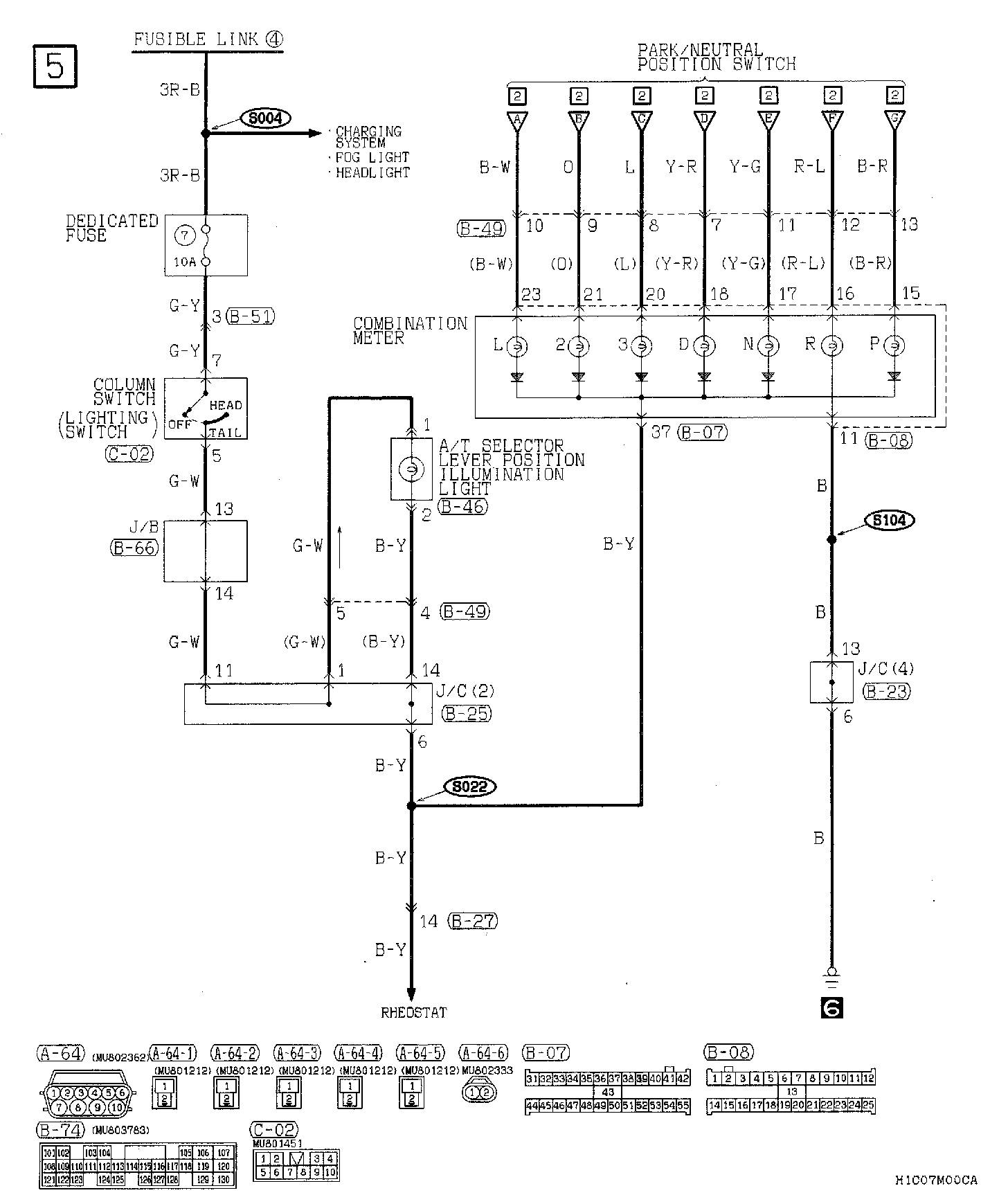

ELC 4-Speed Automatic Transaxle Part 5:

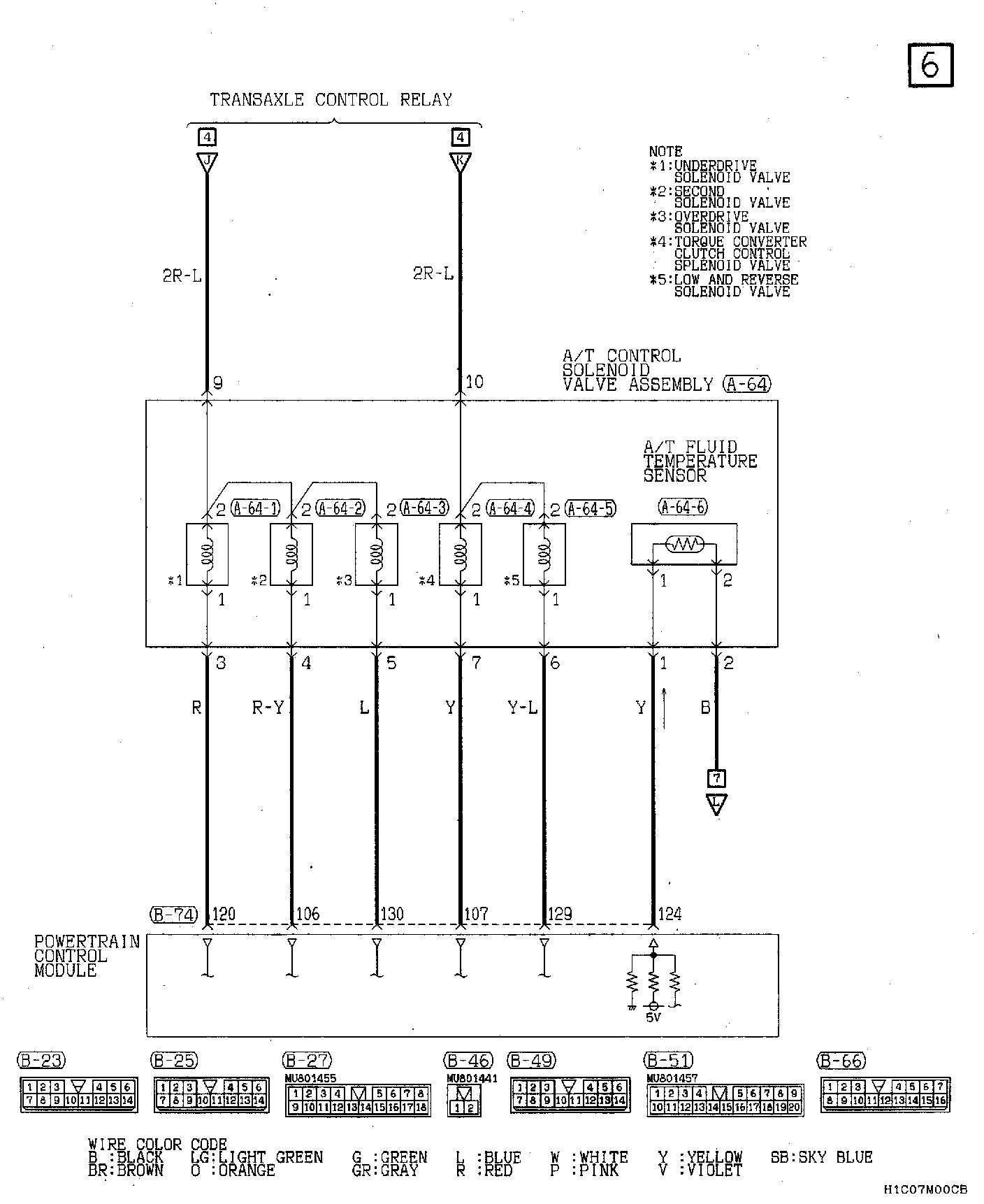

ELC 4-Speed Automatic Transaxle Part 6:

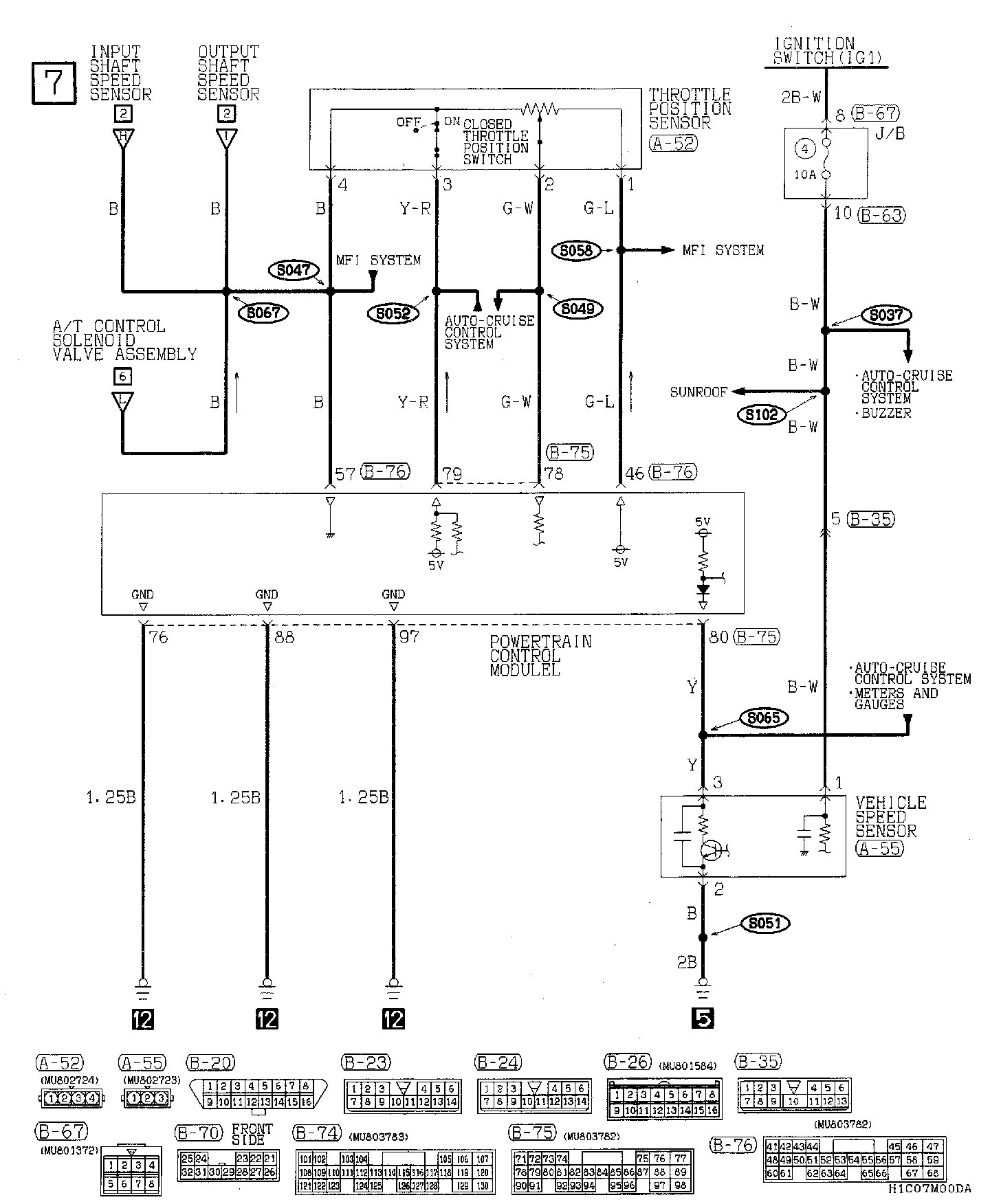

ELC 4-Speed Automatic Transaxle Part 7:

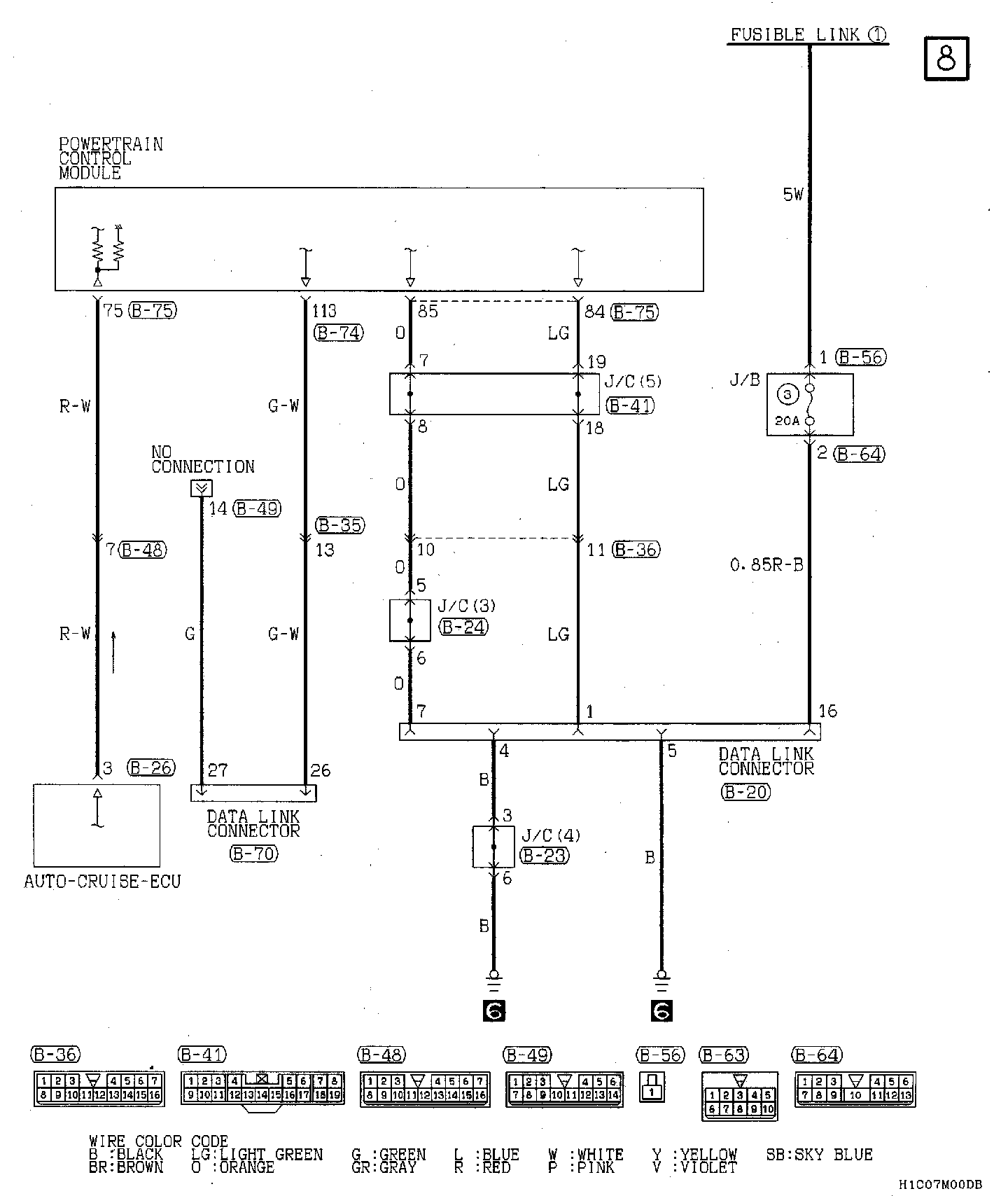

ELC 4-Speed Automatic Transaxle Part 8:
