Evaporative System - DTC P0441 Procedure Update
No: TSB-01-13-007DATE: August, 2001
MODEL: 2001 Mirage
SUBJECT
MIRAGE DTC P0441 TROUBLESHOOTING F
- SERVICE MANUAL REVISION
TSB Revision TSB-O1-13-007
PURPOSE
Diagnosis and troubleshooting of Diagnostic Trouble Code P0441, "Evaporative Emission Control Incorrect Purge Flow" are missing in the affected service manual. This bulletin contains complete DTC P0441 diagnosis and troubleshooting procedures for affected vehicles.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2001 Mirage
AFFECTED SERVICE MANUAL
2001 Mirage, Volume 1, pages 13A-10, 13A-14, 13A-24, 13A-54, 13B-10, 13B-13, 1SB-23,
13B-54

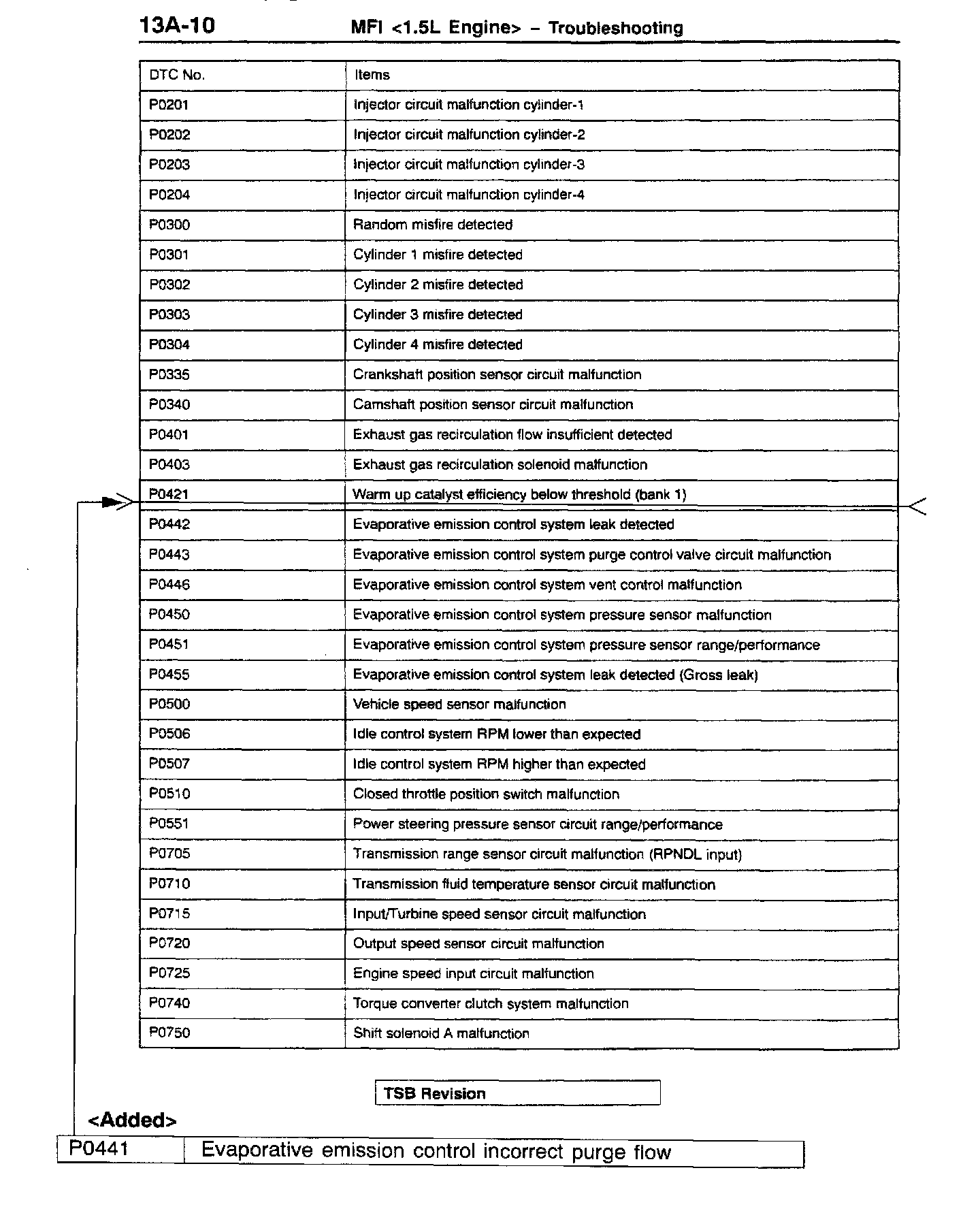

2001 Mirage, Volume 1, page 13A-10

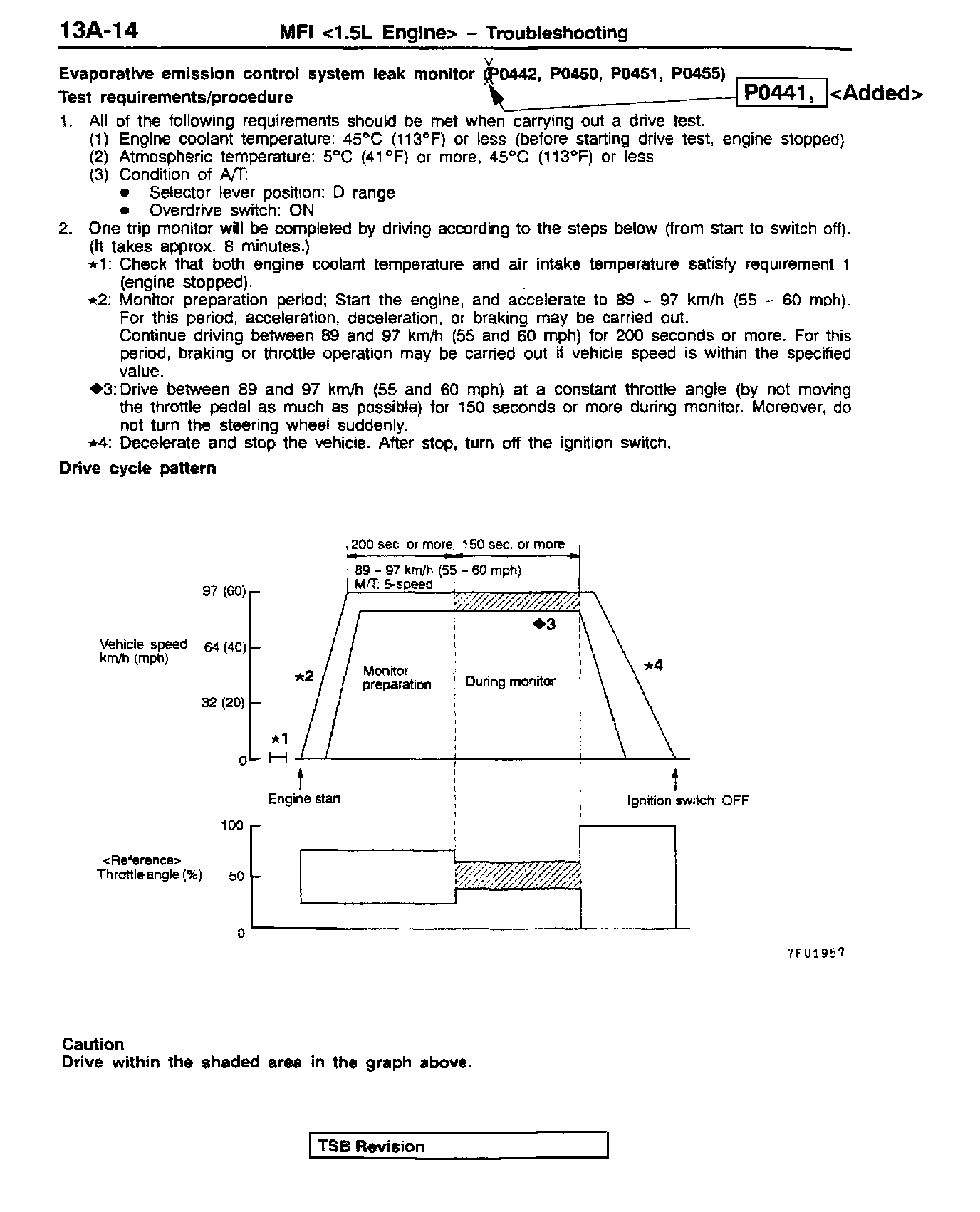

2001 Mirage, Volume 1, page 13A-14

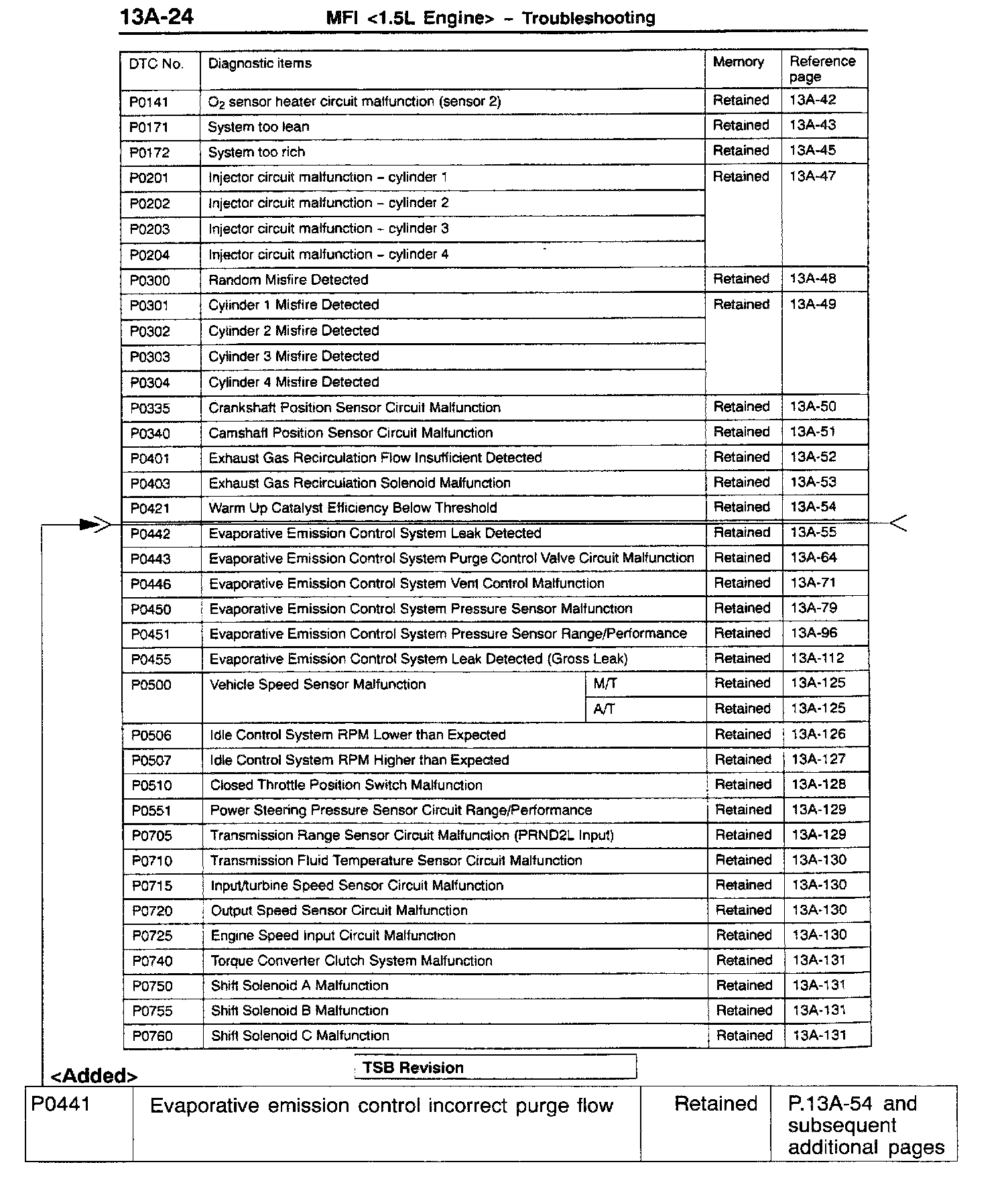

2001 Mirage, Volume 1, page 13A-24

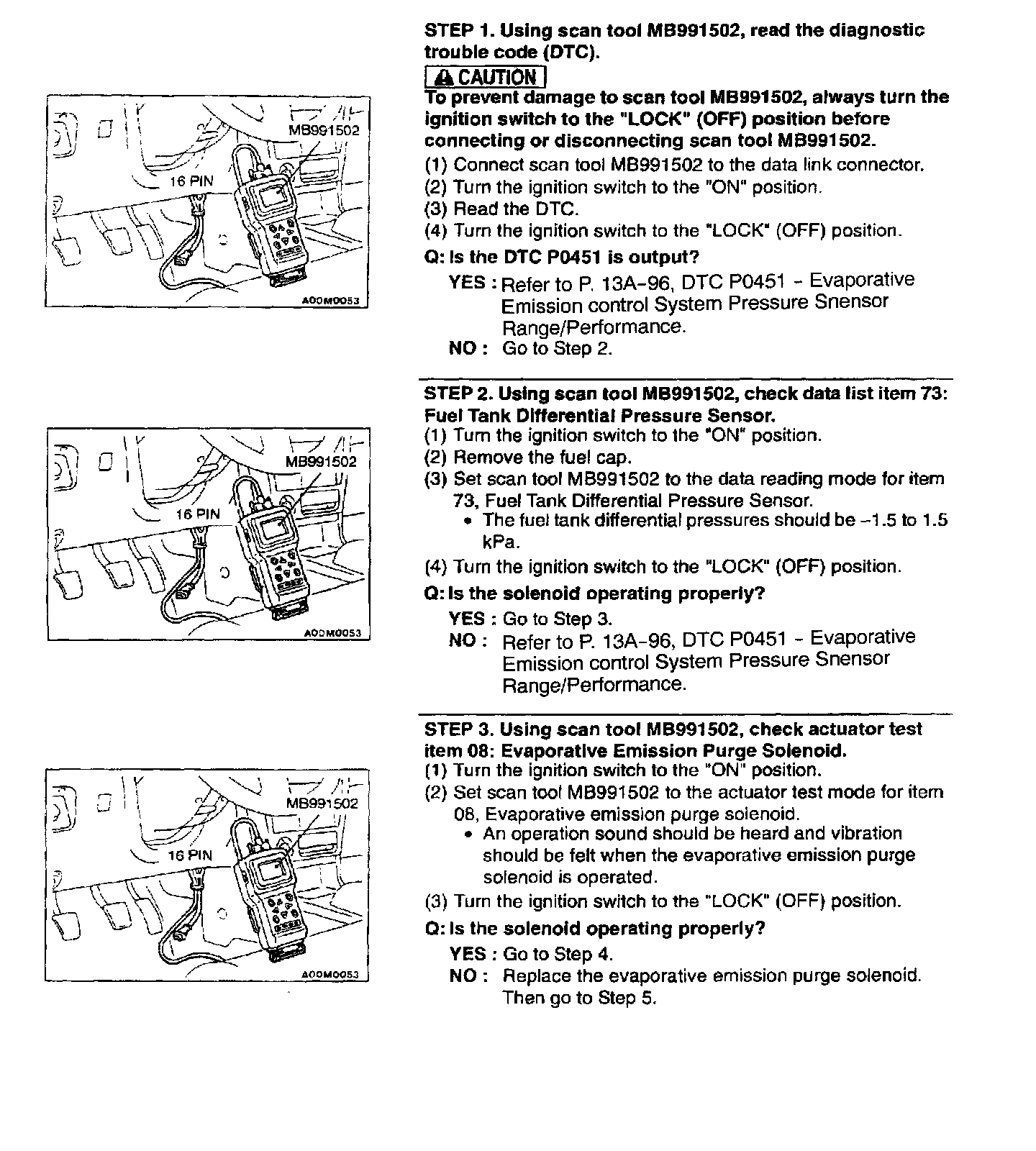

2001 Mirage, Volume 1, page 1 3A-54. Add the following new information:

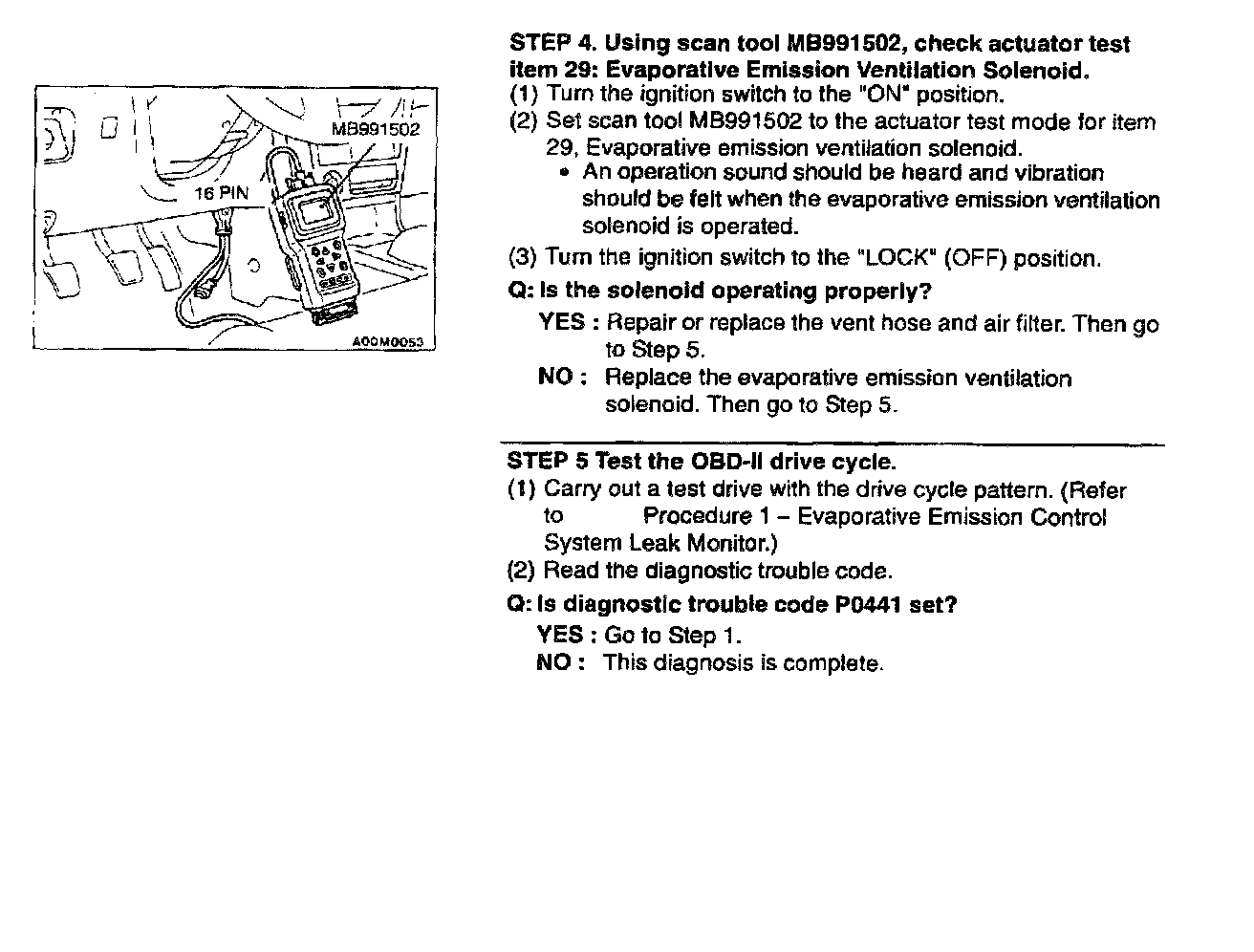

2001 Mirage, Volume 1, page 13A-54. Add the following new information (continued):

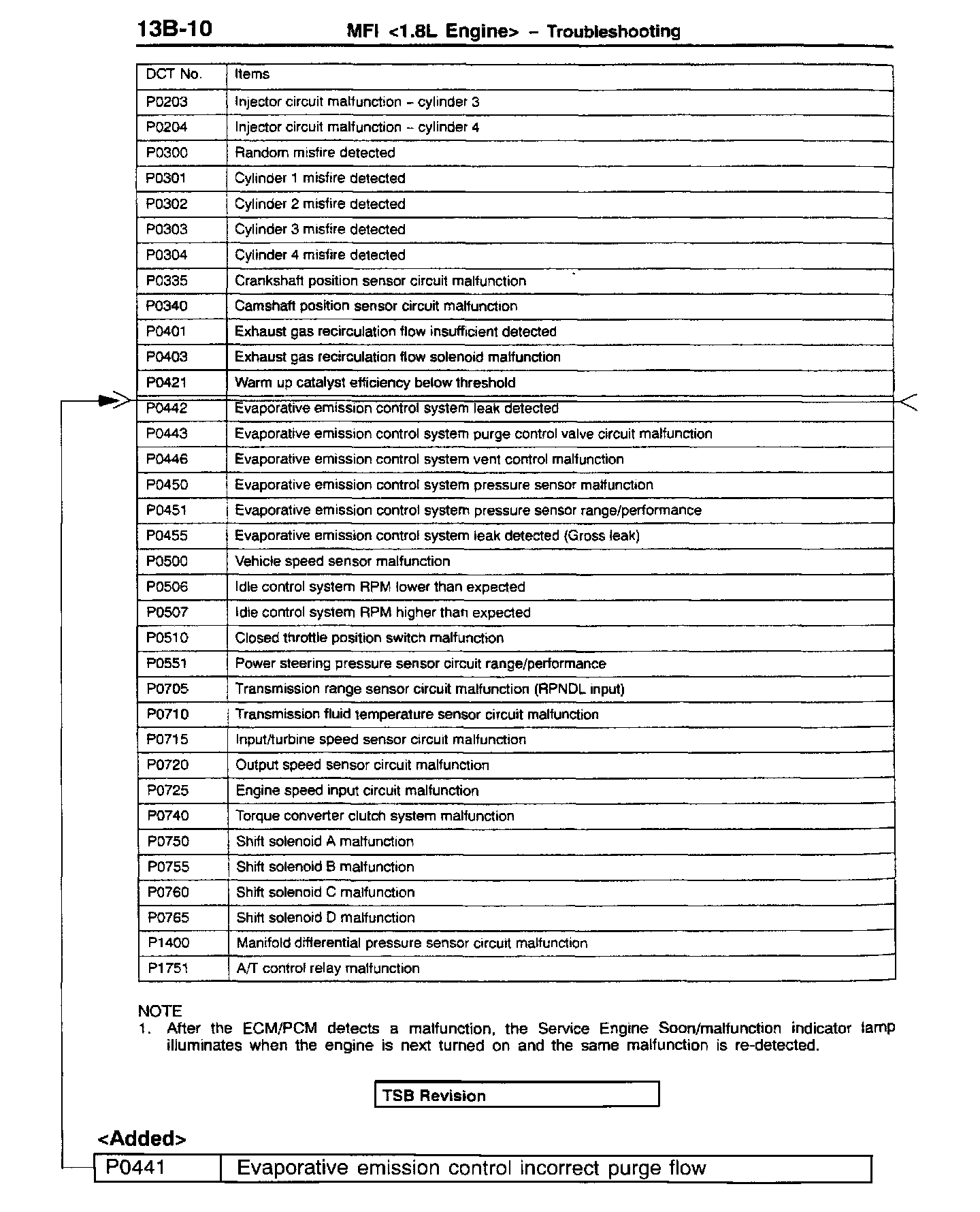

2001 Mirage, Volume 1, page 13B-10
2001 Mirage, Volume 1, page 13B-13

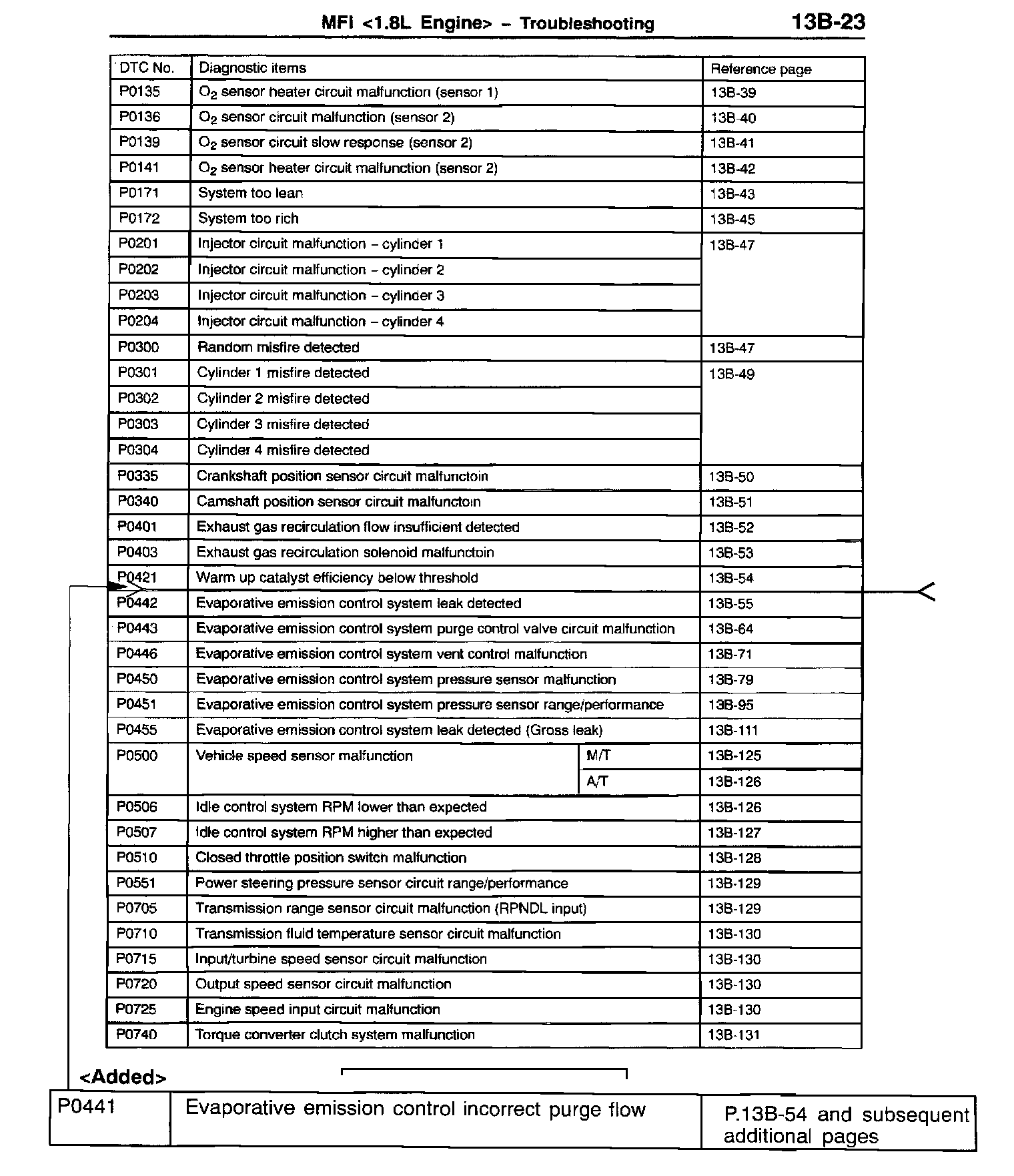

2001 Mirage, Volume 1, page 13B-23

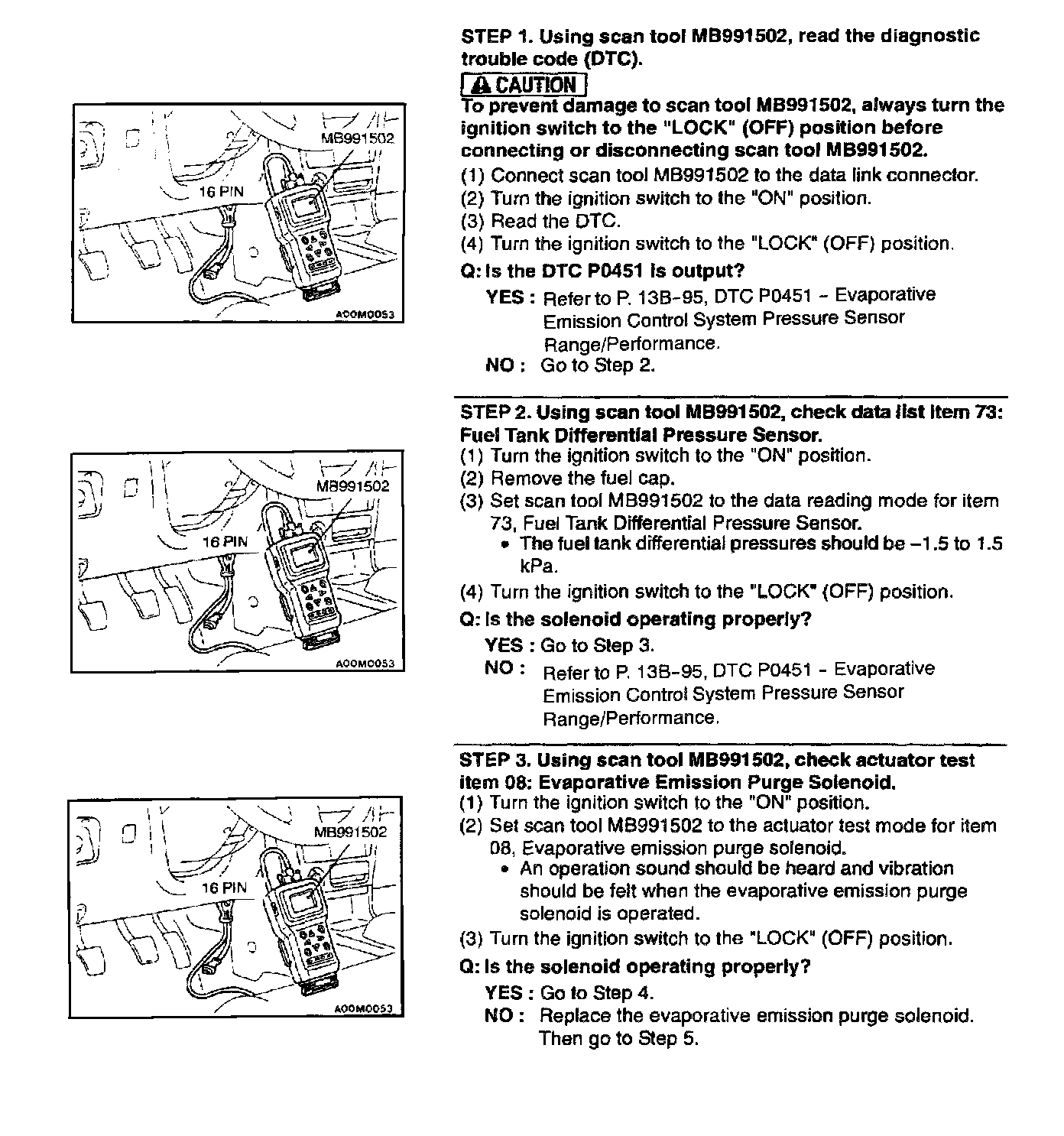

2001 Mirage, Volume 1, page 1 3B-54. Add the following new information:

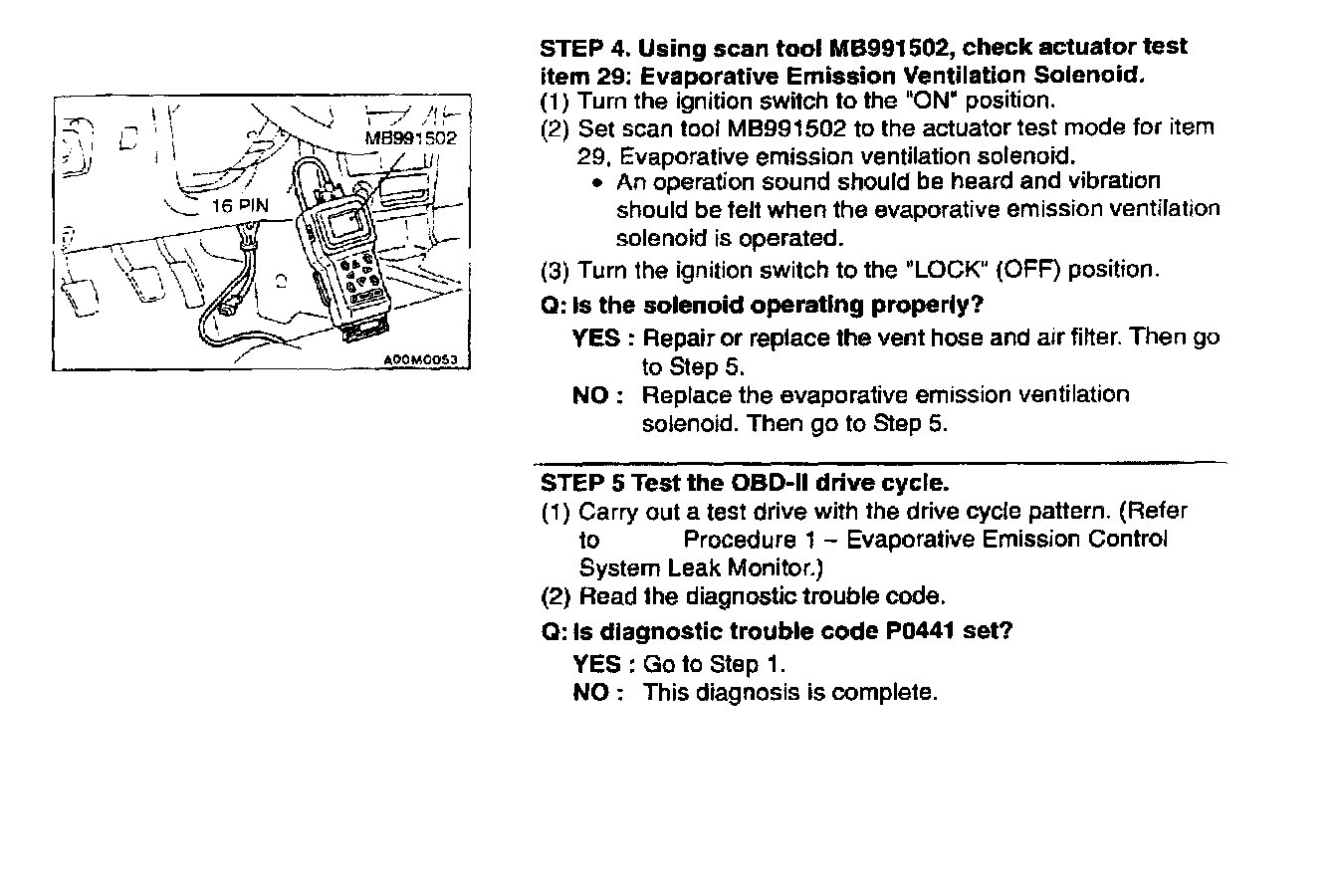

2001 Mirage, Volume 1, page 13B-54. Add the following new information (continued):
