Fuse: Locations

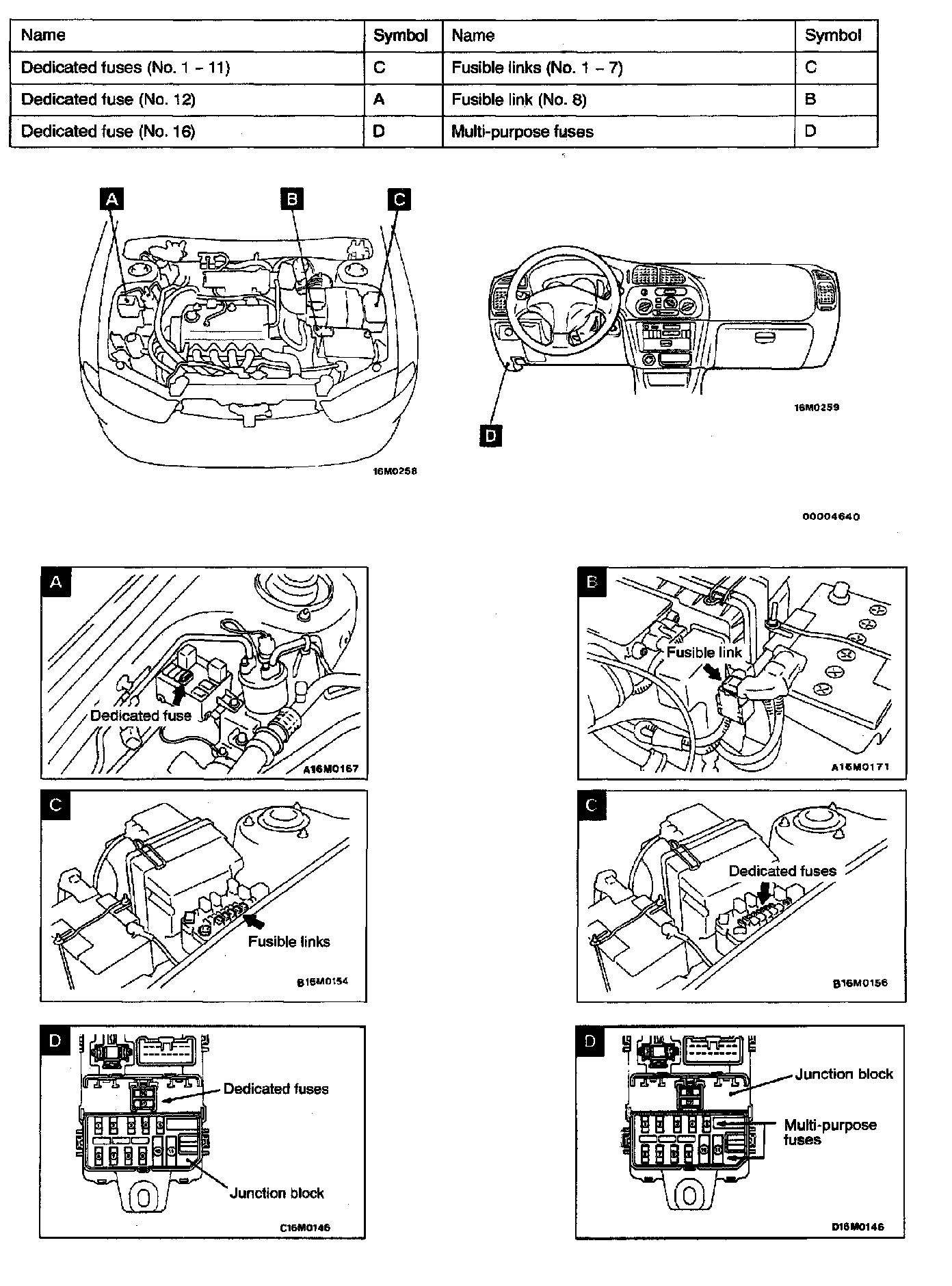

Location Chart, Overall View And Views A - D:

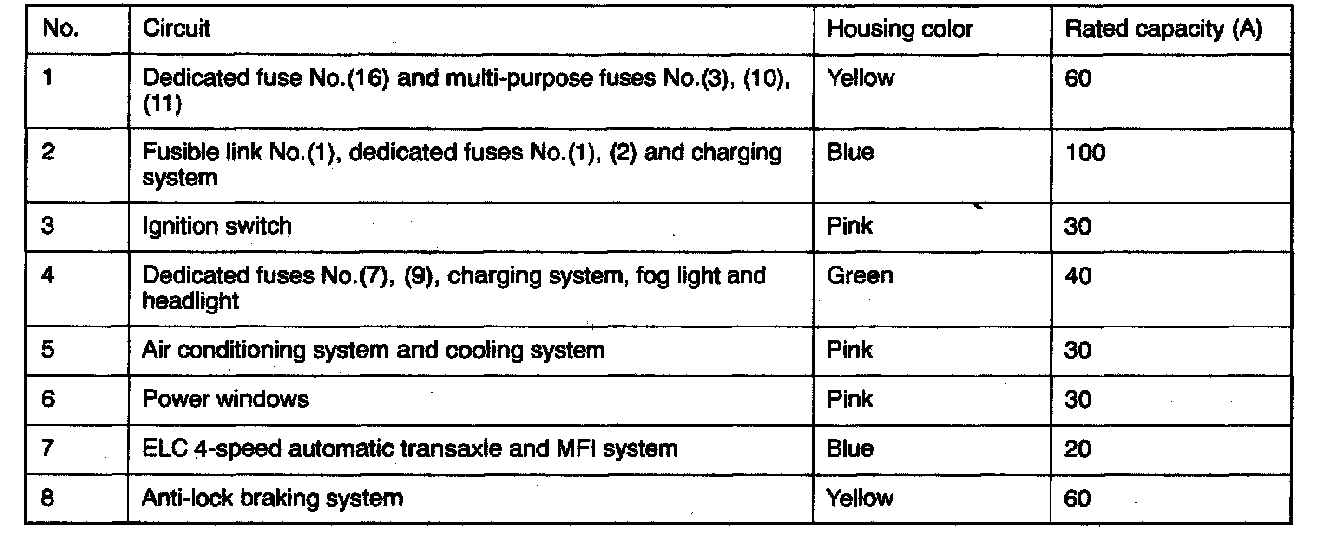

Fusible Link Location Index:

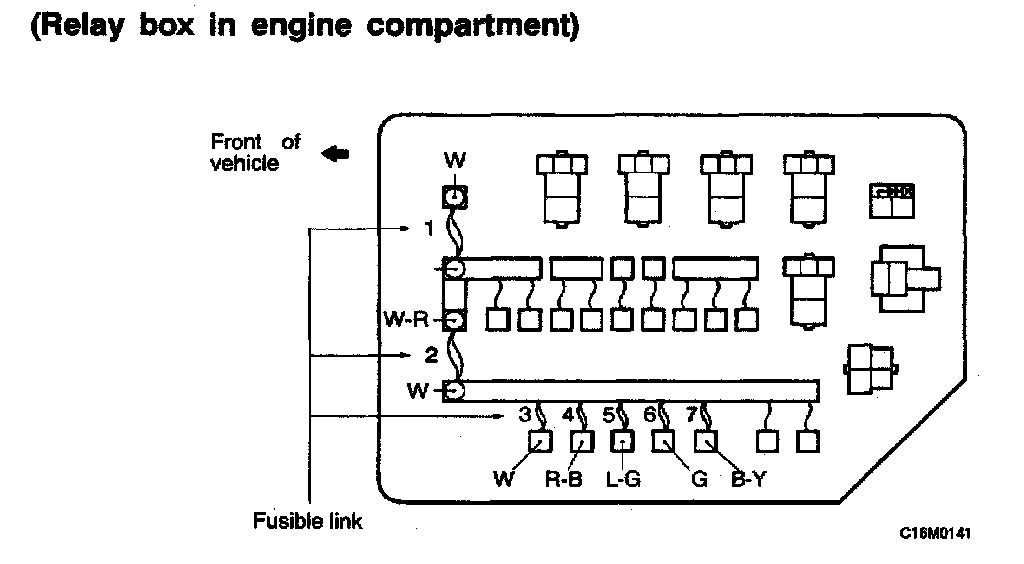

Fusible Link 1 - 7 (Relay Box In Engine Compartment):

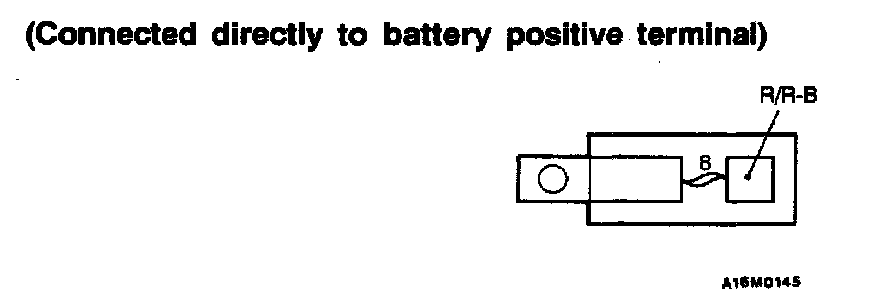

Fusible Link 8 (Connected Directly To Battery Positive Terminal):
