Dedicated Fuse (Engine Compartment)

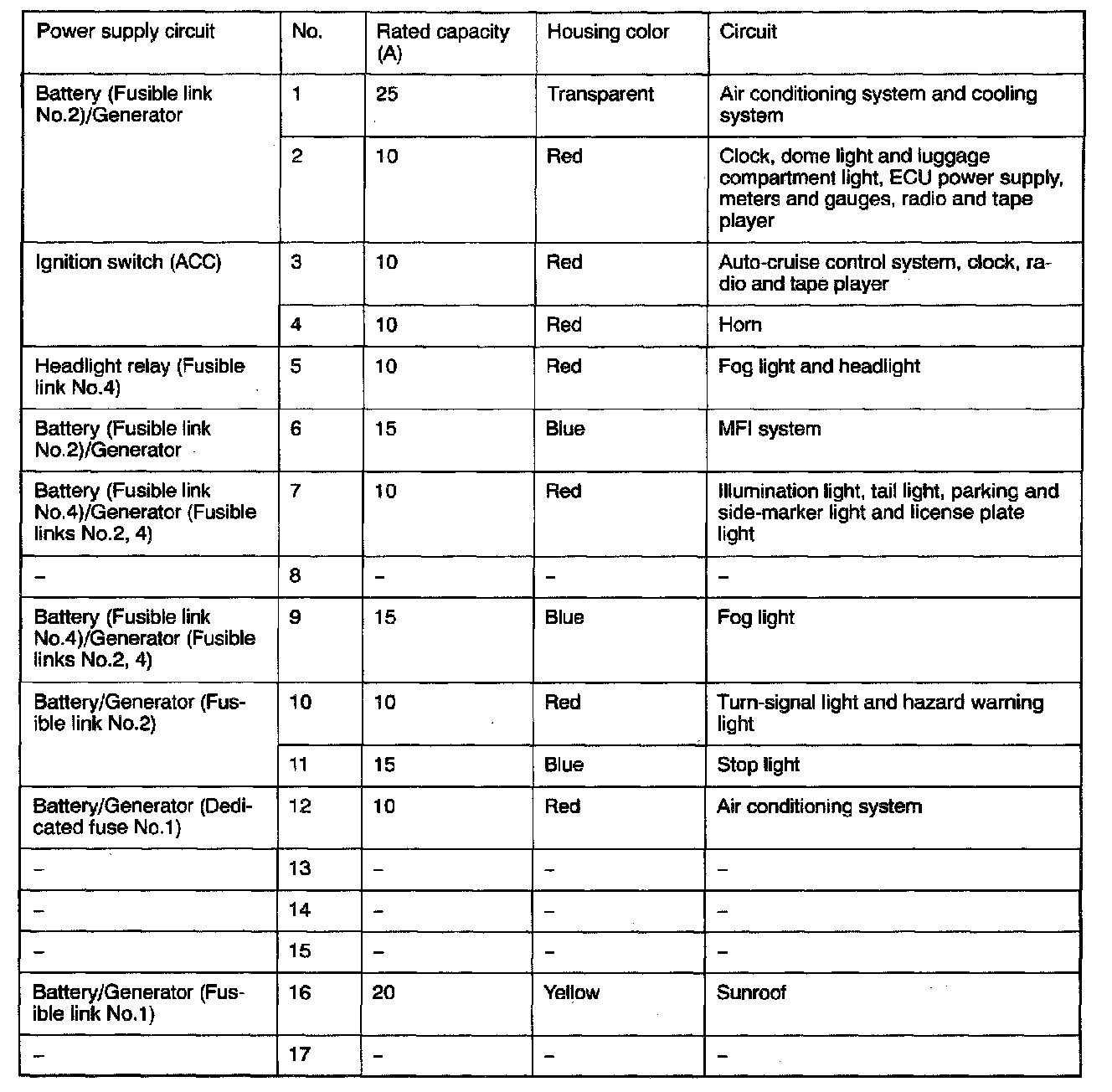

Dedicated Fuse Location Index:

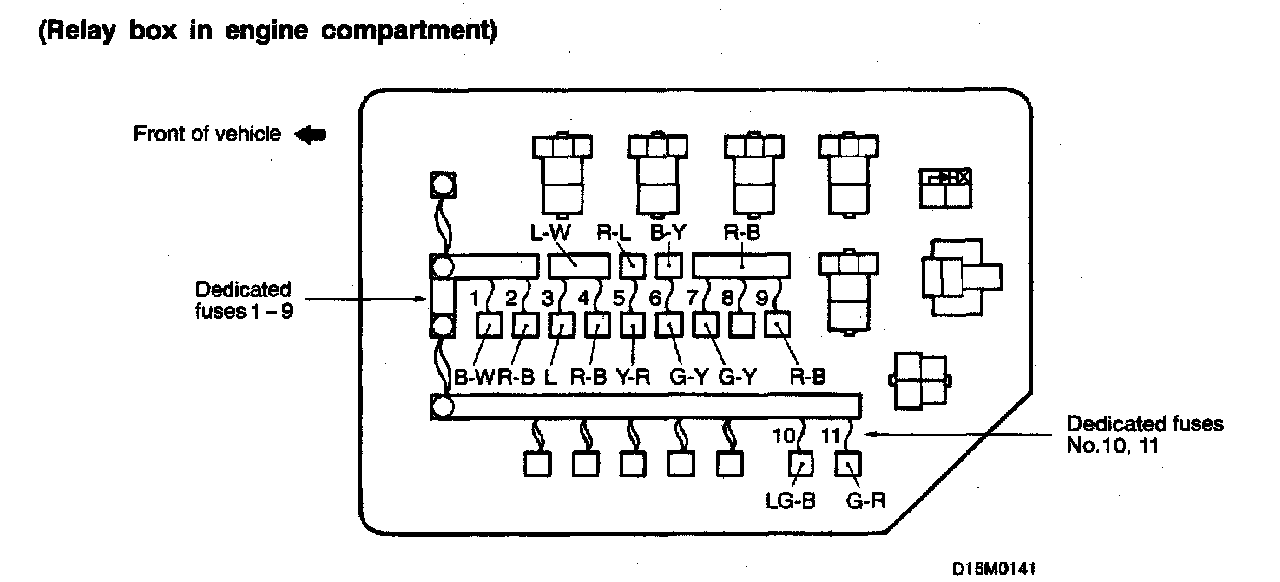

Dedicated Fuse 1 - 11 (Relay Box In Engine Compartment):

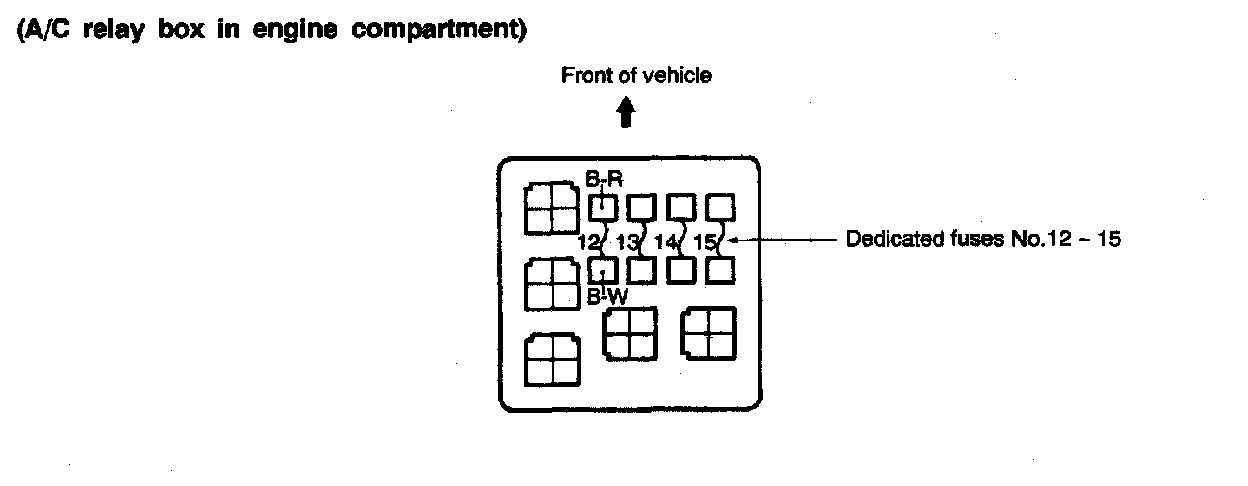

Dedicated Fuse 12 - 15 (A/C Relay Box In Engine Compartment):

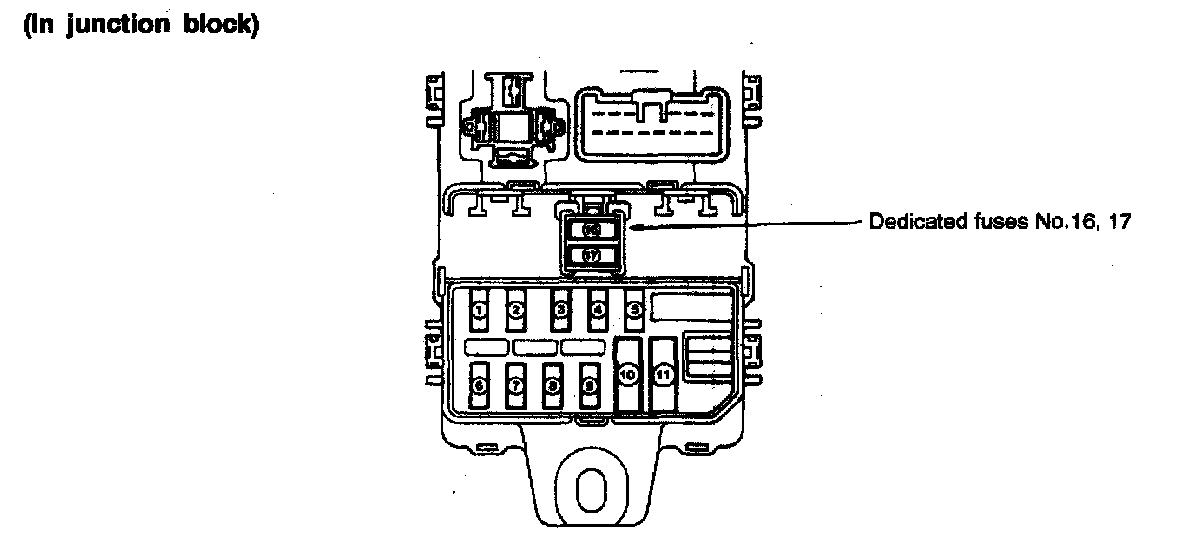

Dedicated Fuse 16 - 17 (In Junction Block):
