Mirage Coupe DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Dash Panel
Dash Panel

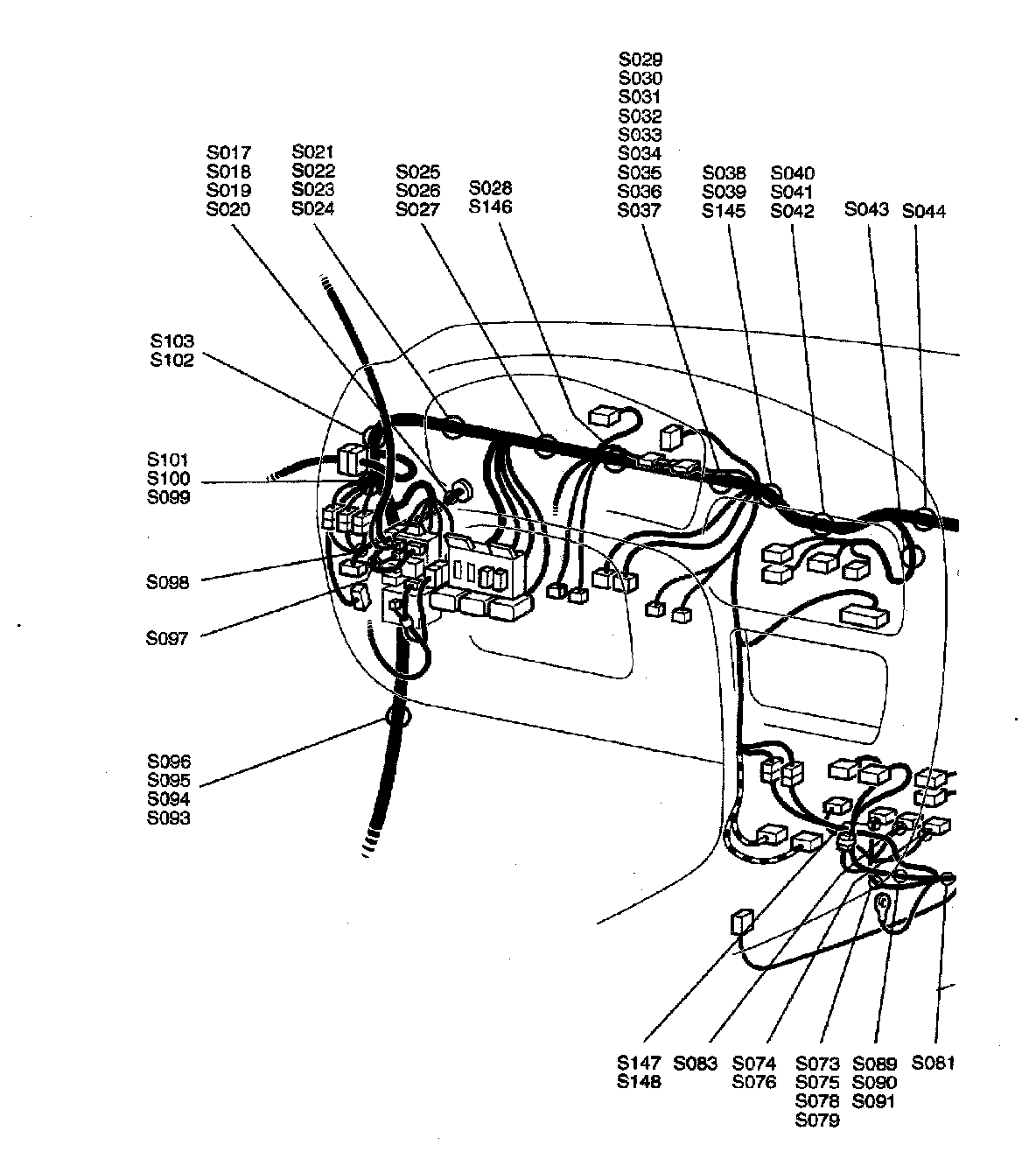

S017 - S044, S073 - S076, S078 - S079, S081, S083, S089 - S091, S093 - S103, S145 - S148:

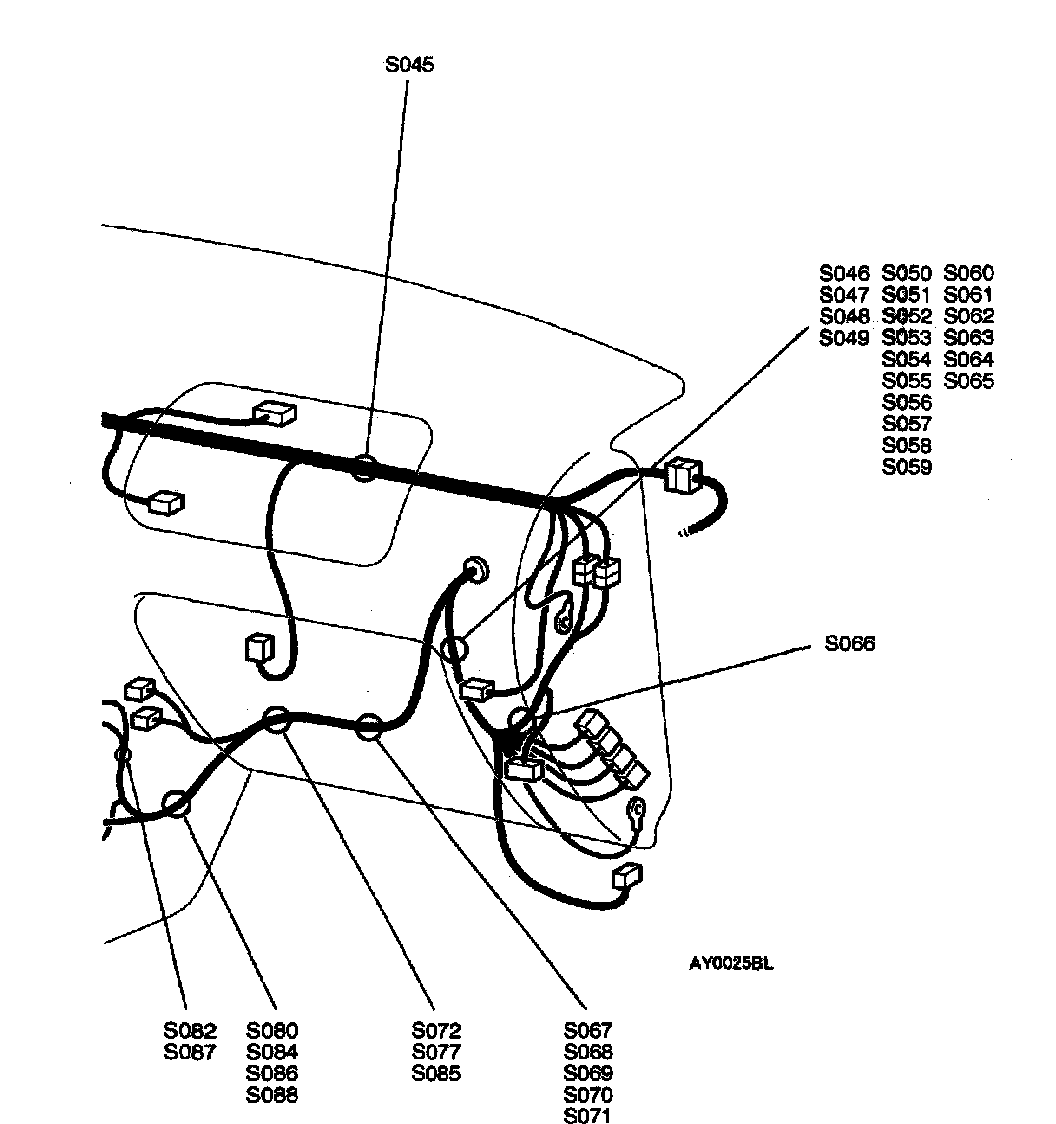

S045 - S072, S077, S080, S082, S084 - S088:
