Mirage Coupe DE L4-1468cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
Multiple Junction Connector

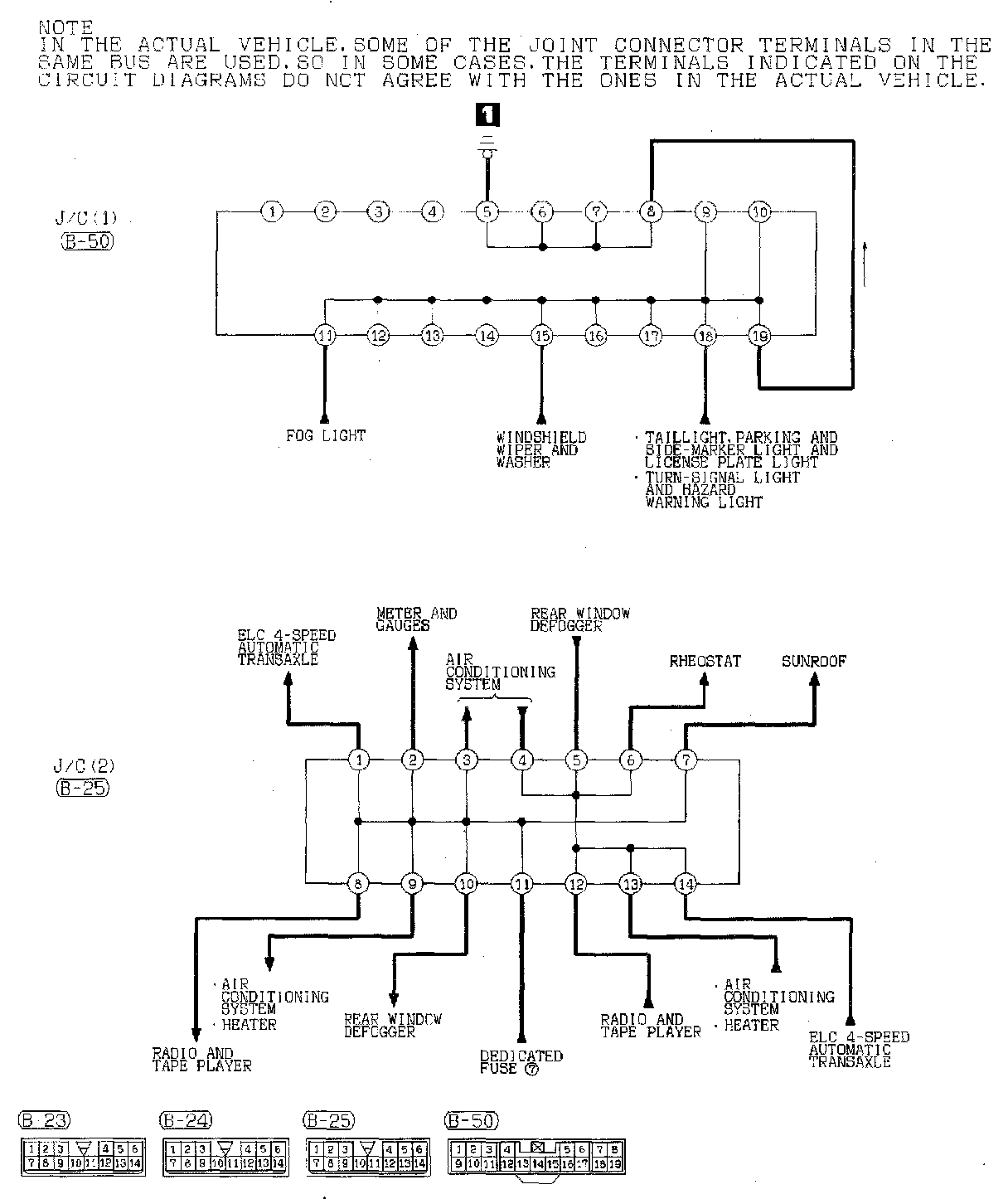

Joint Connector (J/C) Part 1:

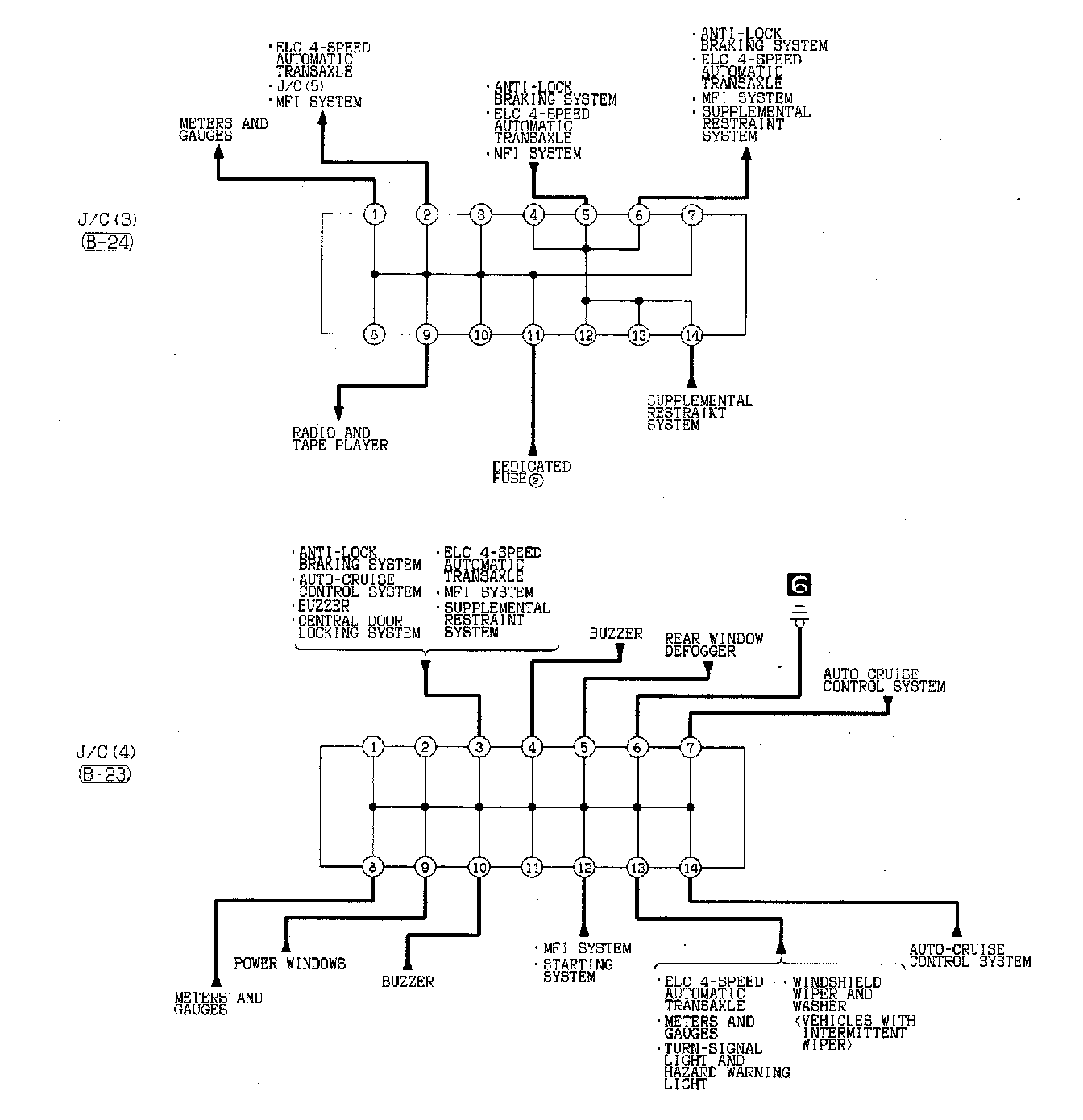

Joint Connector (J/C) Part 2:

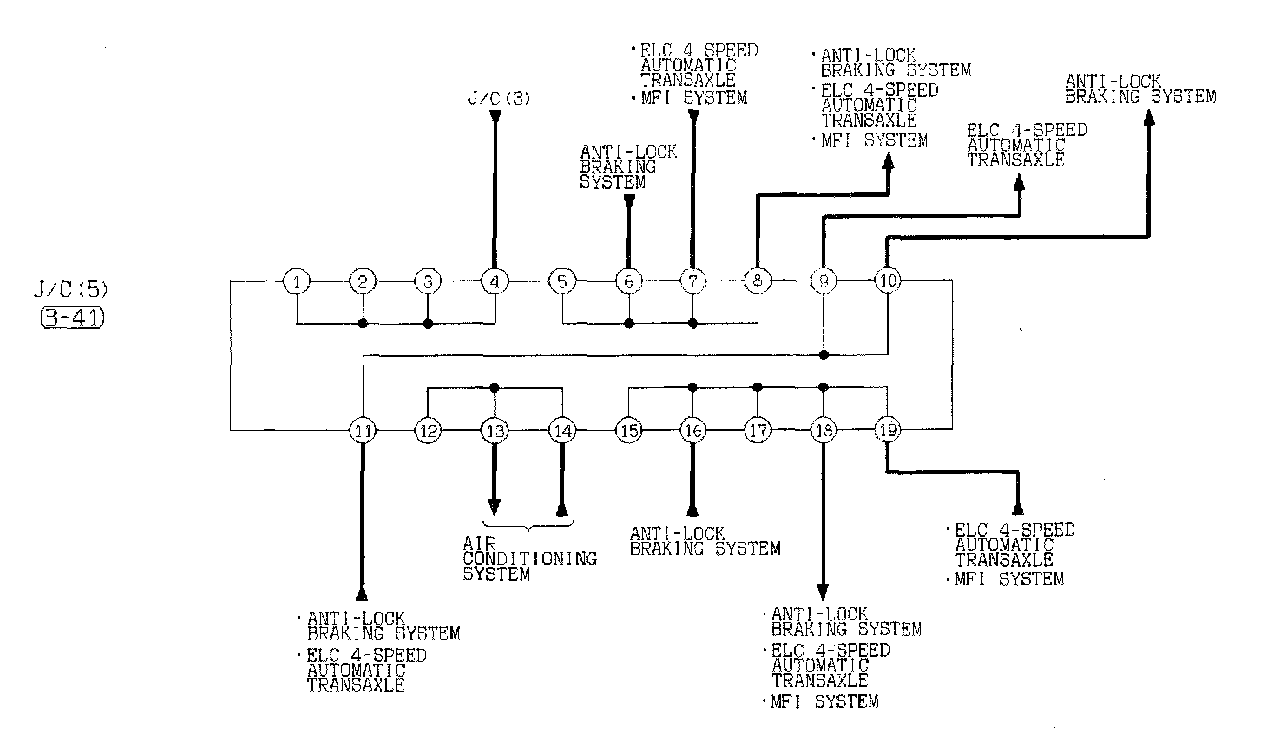

Joint Connector (J/C) Part 3:
