Engine Control Module

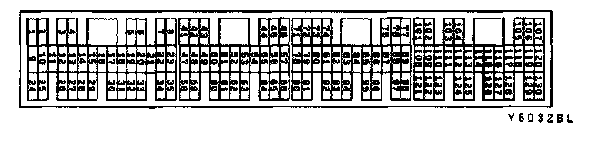

Engine Control Module (ECM) Connector Terminal Arrangement:

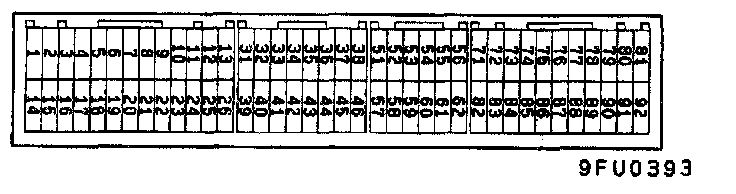

PCM Connector Terminal Arrangement:

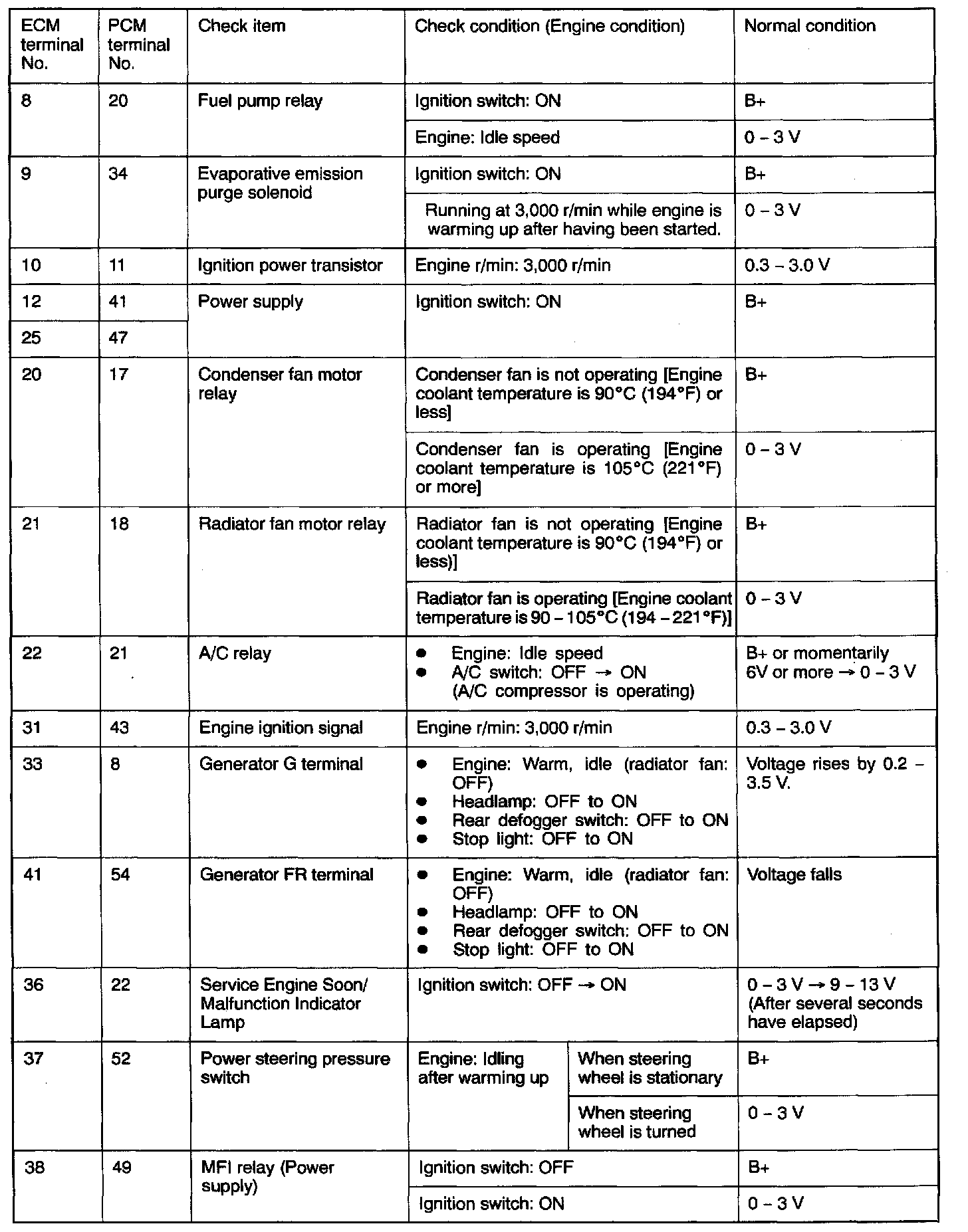

Part 1:



Part 2:



Part 3:



Part 4:
