Scan Tool Testing and Procedures

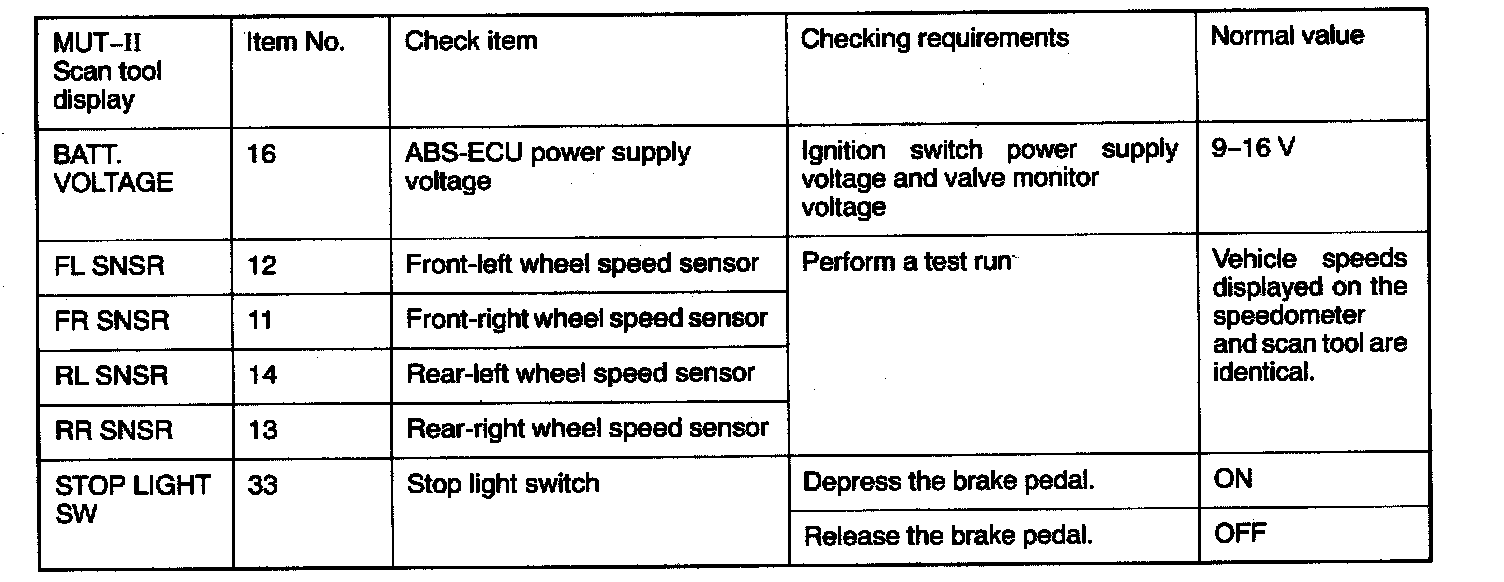

DATA LIST REFERENCE TABLE





The following items can be read by the scan tool from the ABS-ECU input data.
1. When the system is normal
2. When the ABS-ECU shut off ABS operation. When the diagnostic trouble system stops the ABS-ECU, the scan tool display data will be unreliable.
