Front Cross-Member: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

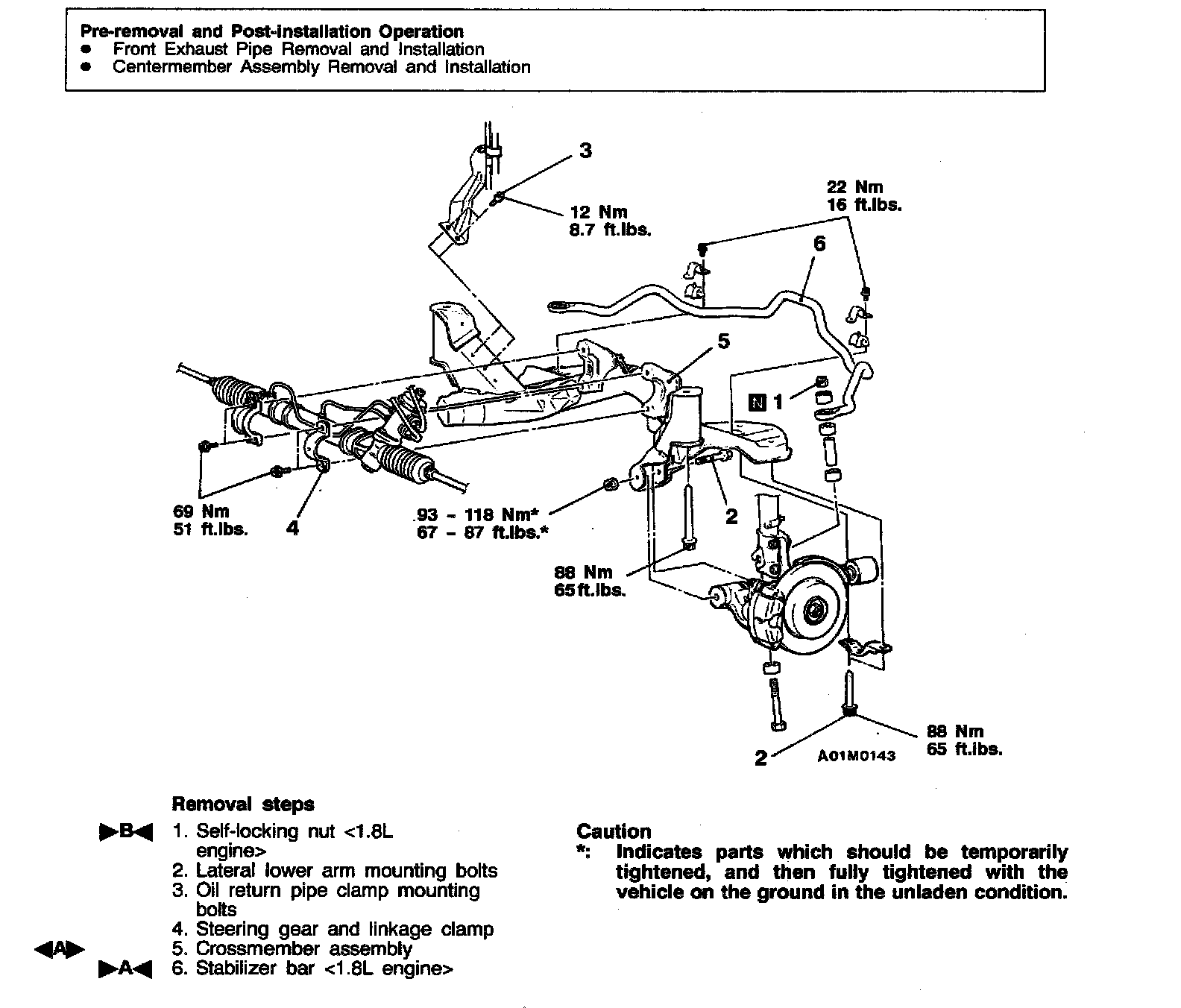

[A] CROSSMEMBER ASSEMBLY REMOVAL

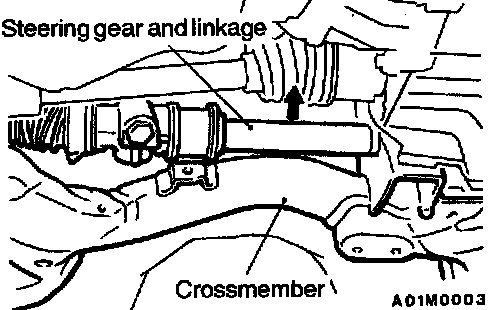

1) Move the crossmember while supporting the steering gear and linkage in the direction shown in the illustration.

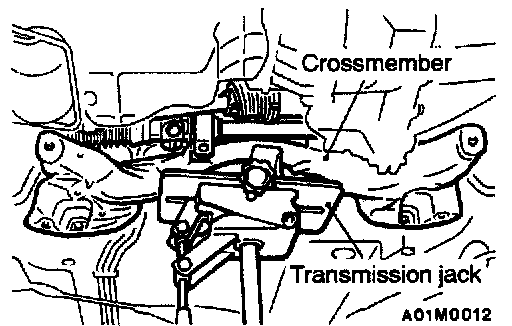

2) Remove the crossmember while supporting it with a transmission jack.

INSPECTION
Check the crossmember for cracks or deformation.
