Engine Control System

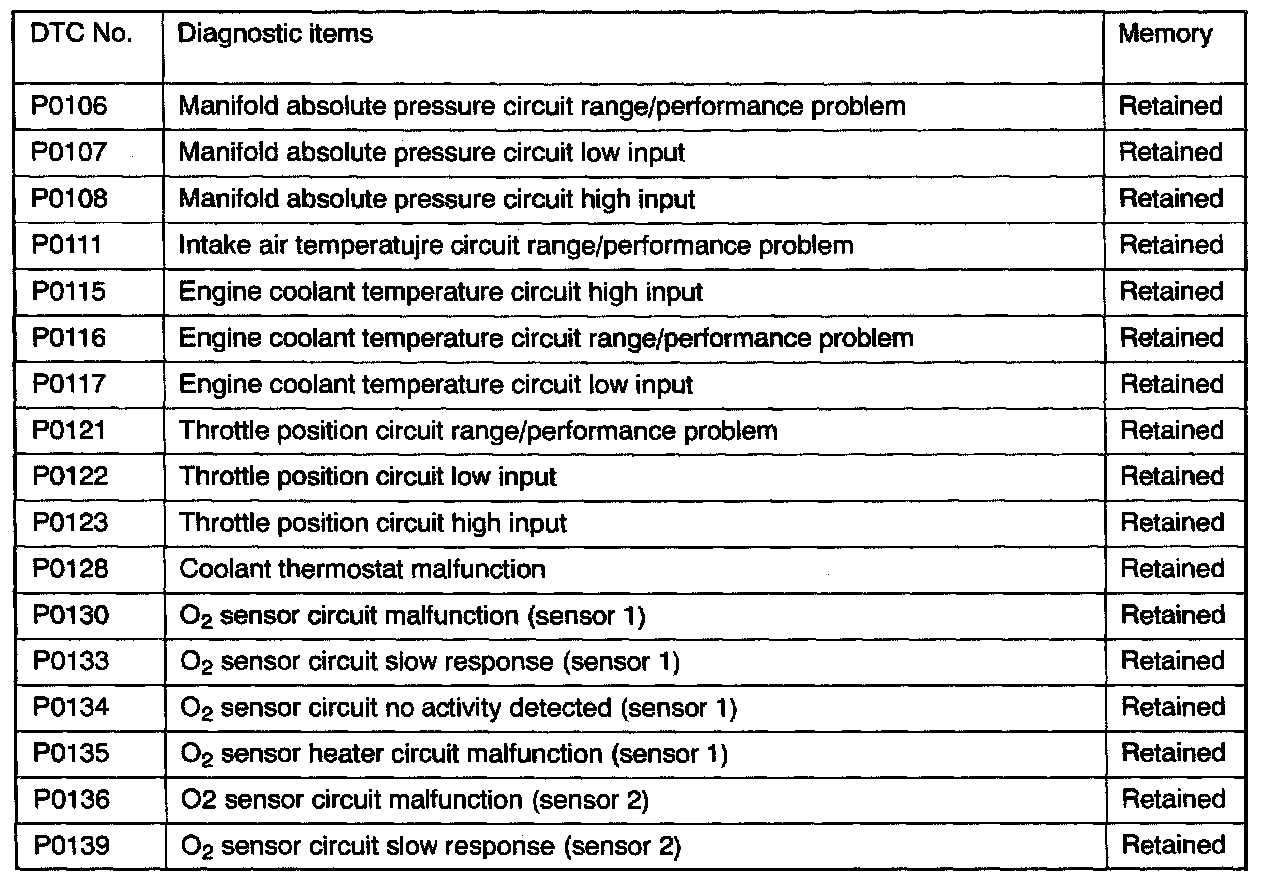

P0106 - P0139:

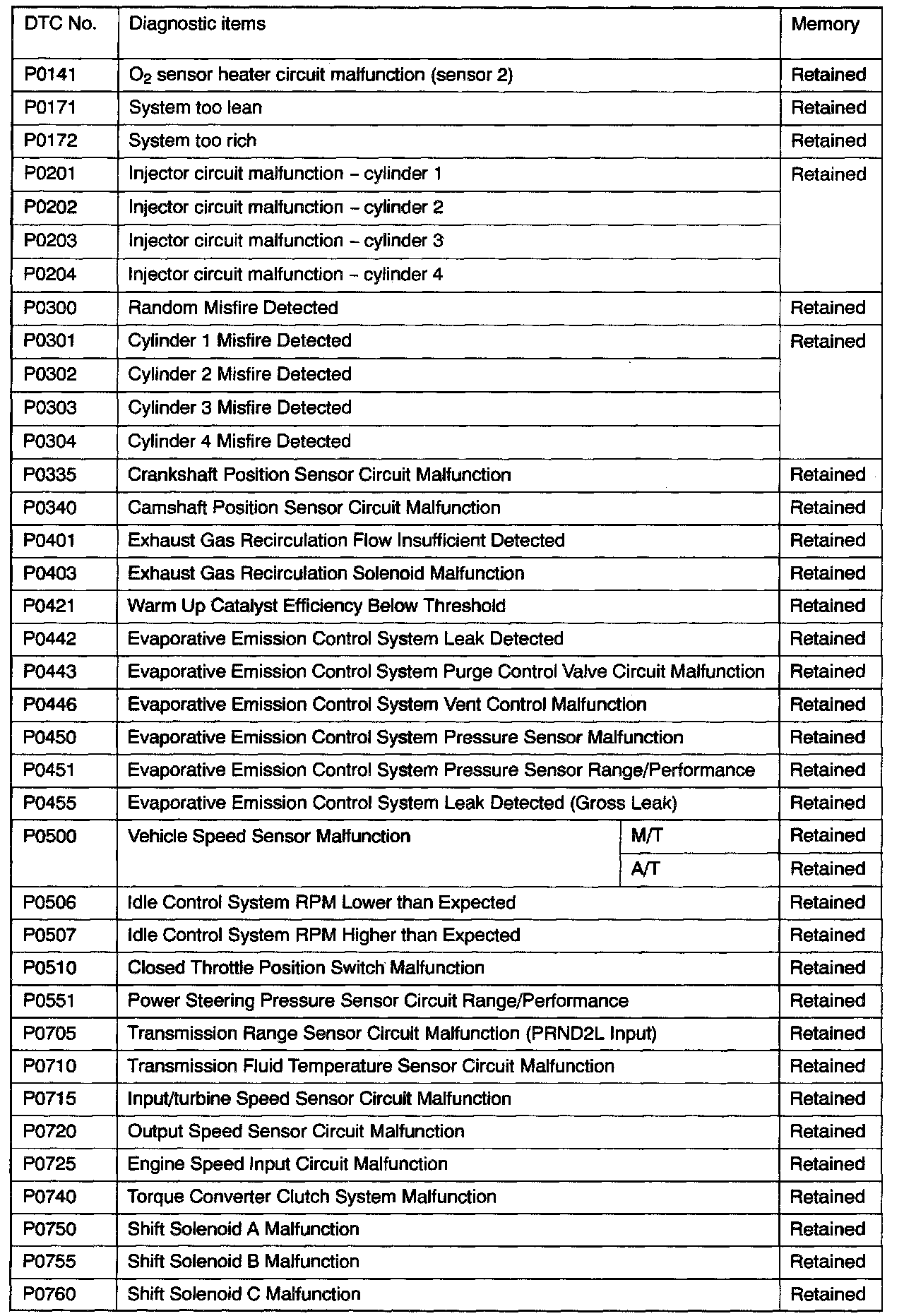

P0141 - P0760:

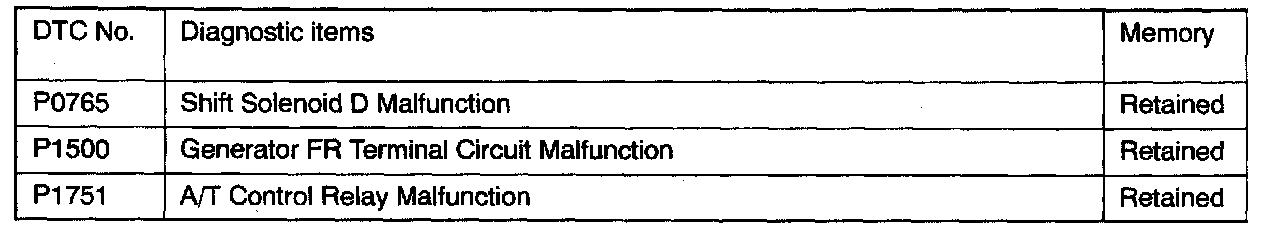

P0765 - P1751:

NOTE:
1. Do not replace the engine control module (ECM) [M/T] or powertrain control module (PCM) [M/T] until a thorough terminal check reveals there are no short/open circuits.
2. After the ECM (or PCM) detects a malfunction, a diagnostic trouble code is recorded the next time the engine started and the same malfunction is re-detected.
3. O(2) sensor: Heated oxygen sensor
4. Sensor 1 : indicates sensors which are mounted closest to the engine.
5. Sensor 2 : indicates sensors which are mounted next-closest to the engine.
