Checking Switches

CHECKING SWITCHES
In a circuit diagram, a switch is shown in the idle state.

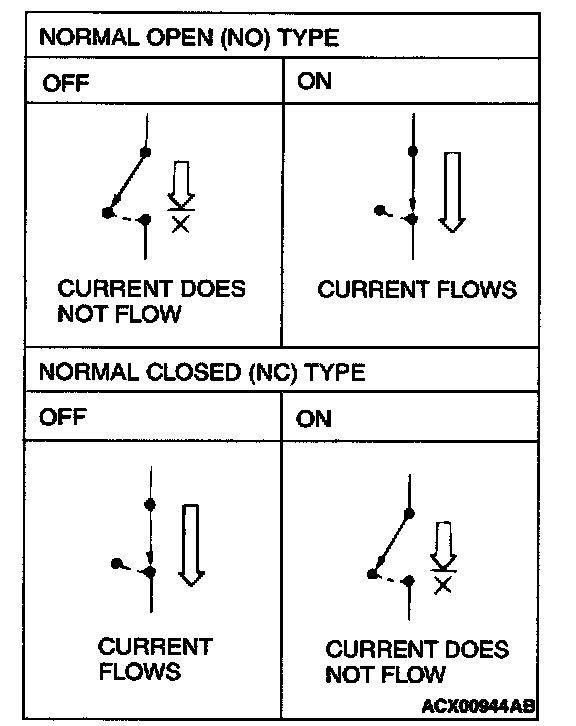

1. Normally open or normally closed switch
Switches are classified into those which open the circuit and those which close the circuit when off.

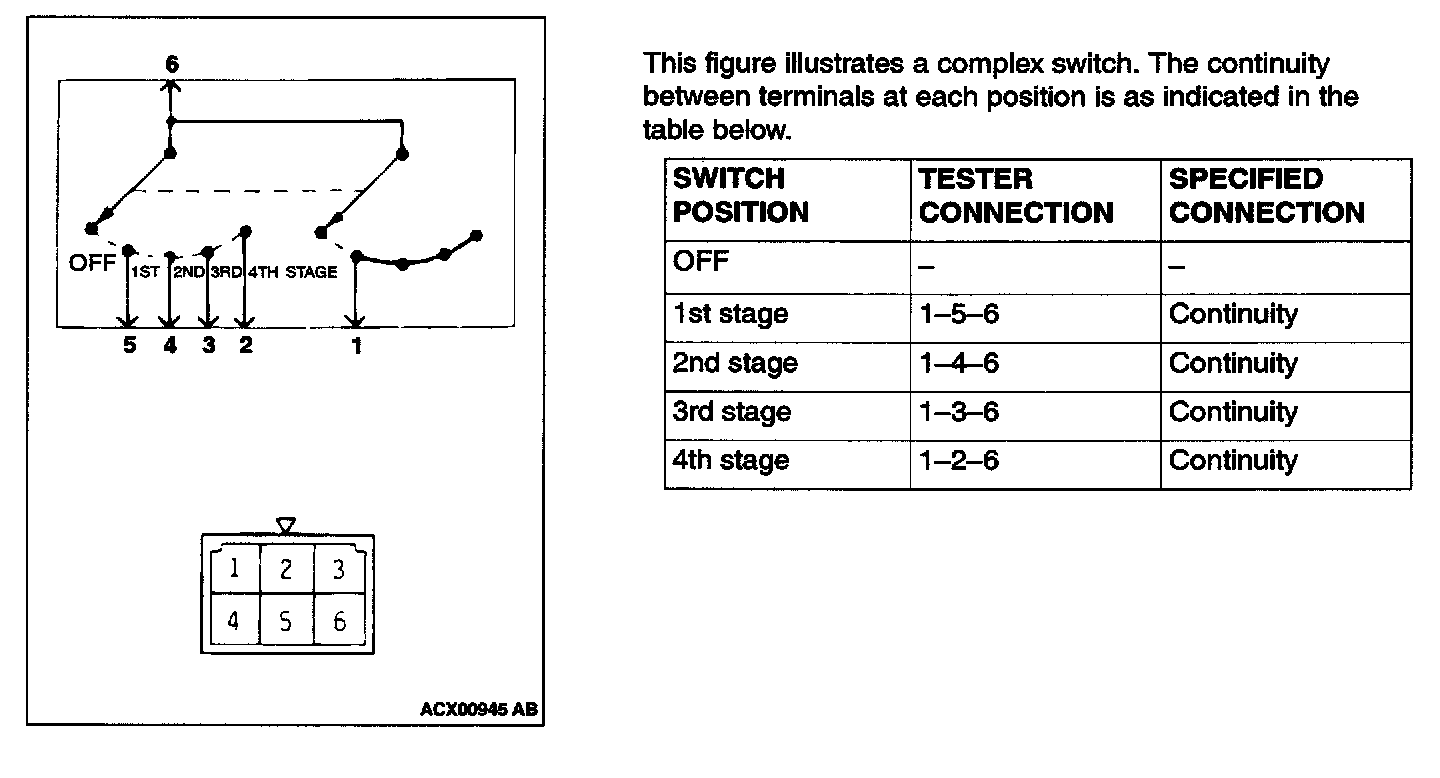

2. Switch connection
