Removal and Replacement

REMOVAL AND INSTALLATION

WARNINGS:
^ Before removing the air bag module, refer to Air Bag for service precautions.
^ When removing and installing the steering wheel, do not let it bump against the air bag module.

Removal Service Point
[[A]] Steering Wheel Removal





CAUTION: Do not hammer on the steering wheel to remove it, doing so will damage the collapsible mechanism.

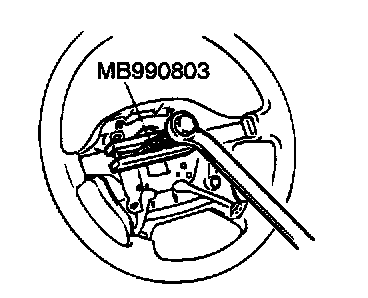

Use special tool MB990803 to remove the steering wheel.
