Ignition Switch Continuity Check

IGNITION SWITCH CONTINUITY CHECK

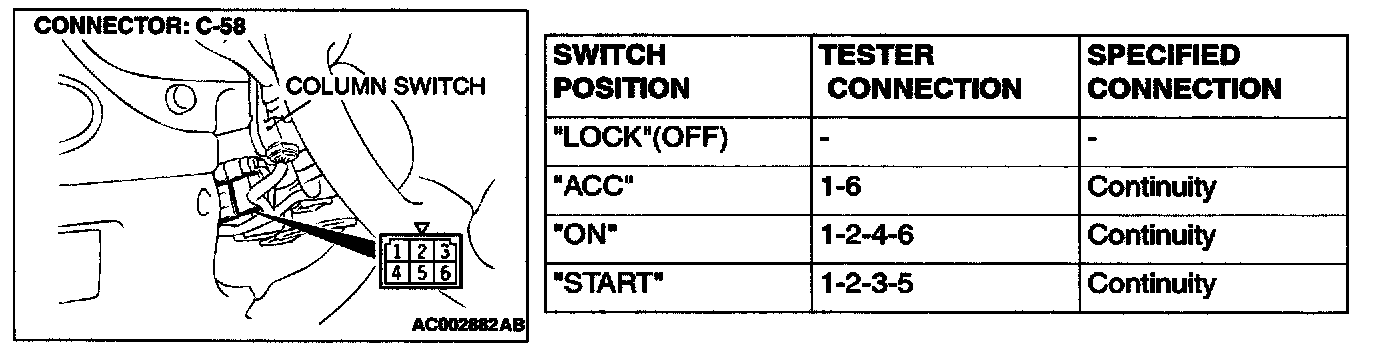

Disconnect ignition switch connector C-58 without removing the ignition switch and steering lock cylinder. Then check the continuity.
