ABS Main Relay: Testing and Inspection

ABS WARNING LIGHT RELAY CHECK

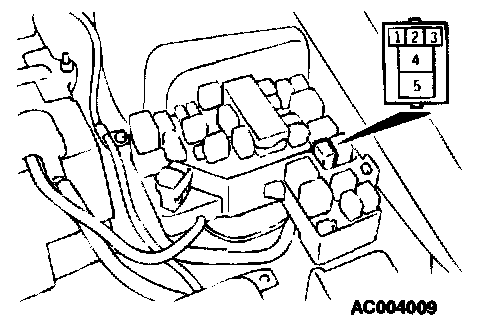

1. Remove the ABS warning light relay.





2. Check continuity between the number 1 terminal and the number 3 terminal, and between the number 5 terminal and the number 2 terminal. Confirm that there is continuity.
3. Apply the positive terminal of the battery to the number 1 terminal and the negative terminal to the number 3 terminal to check the continuity between the number 5 terminal and number 2 terminal. Confirm that there is no continuity.
