Home >> Mitsubishi >> 2001 >> Galant GTZ V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Diagram Information and Instructions >> Connector and Ground Indicators

Connector and Ground Indicators

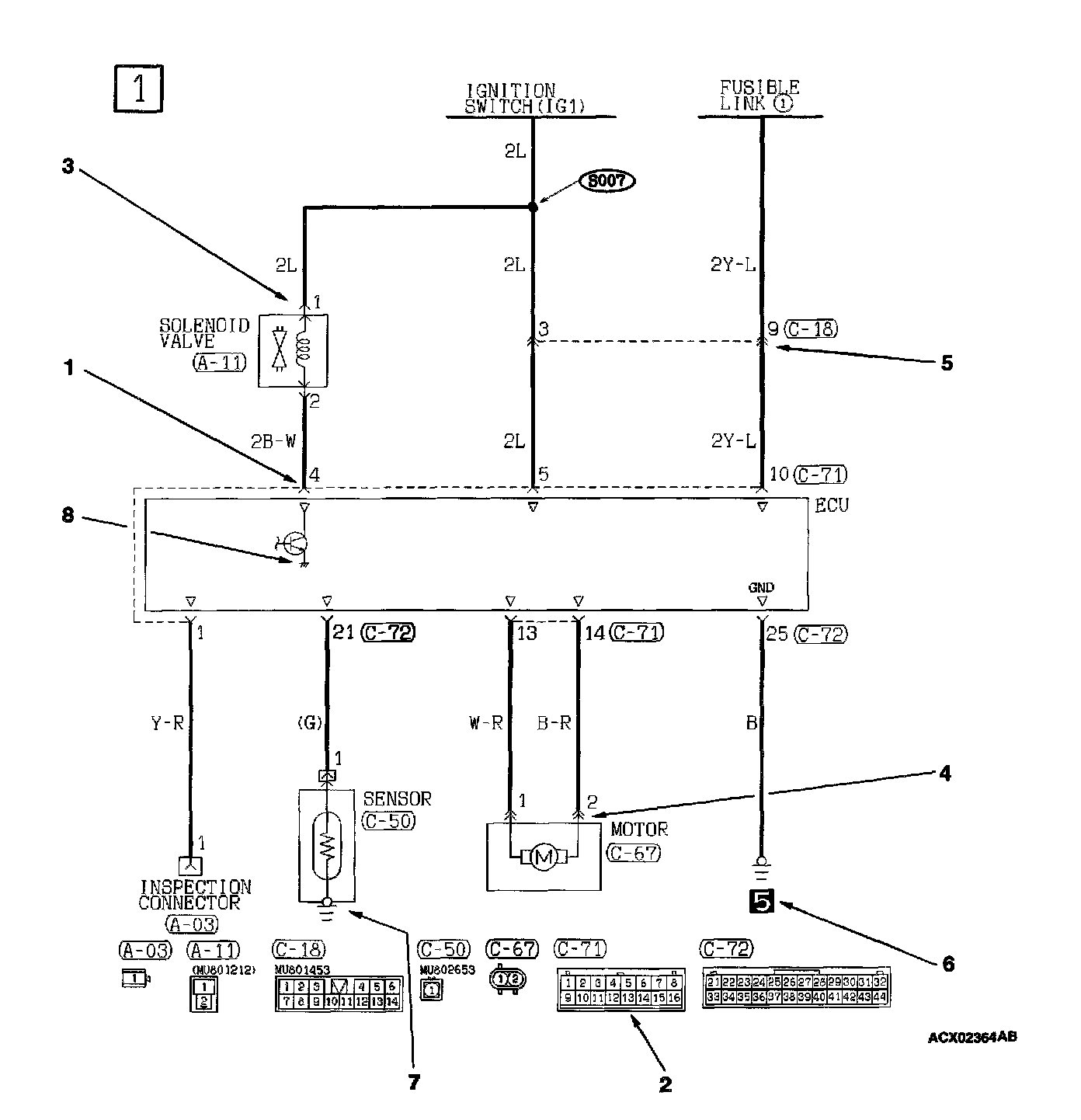

Connector/Grounding Indications:

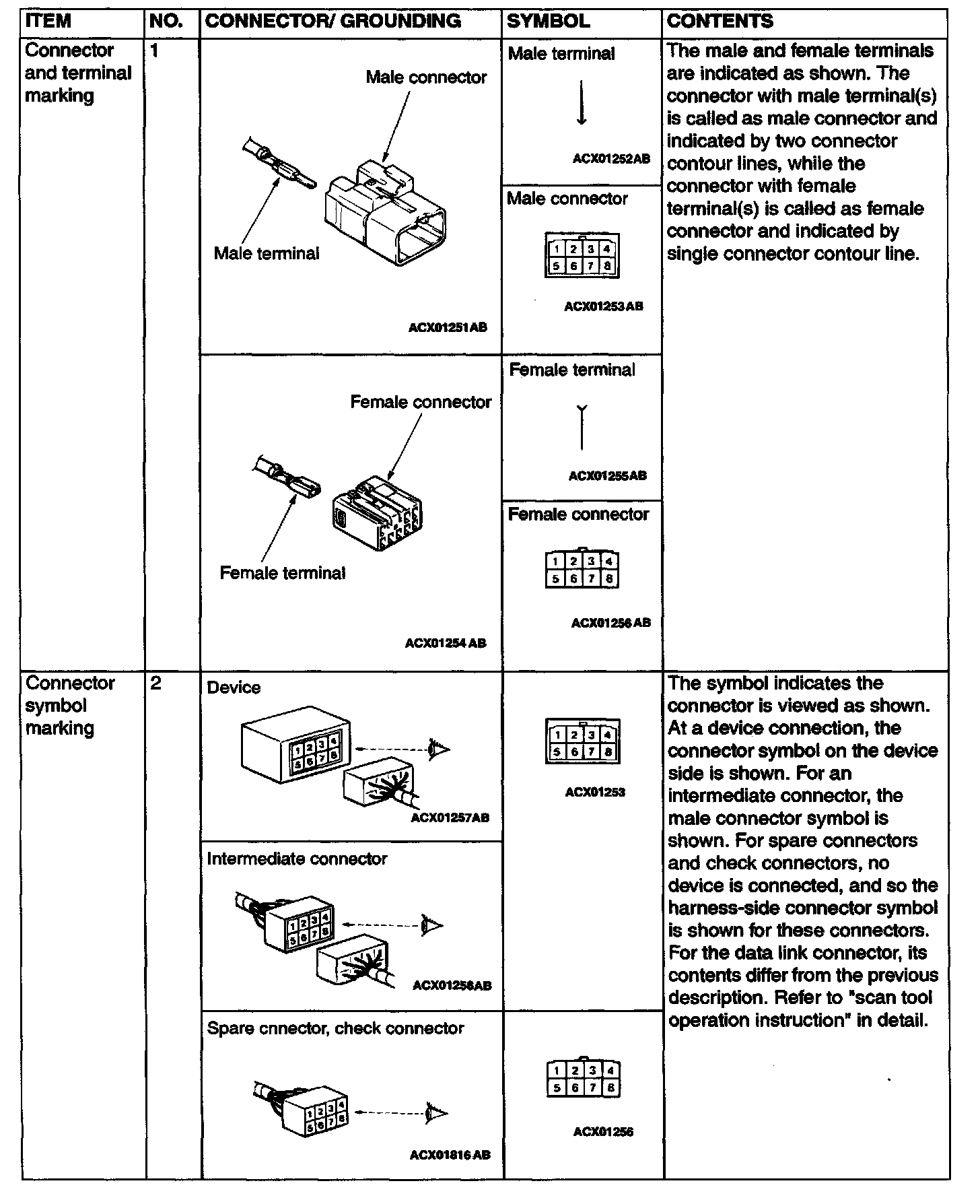

Part 1:

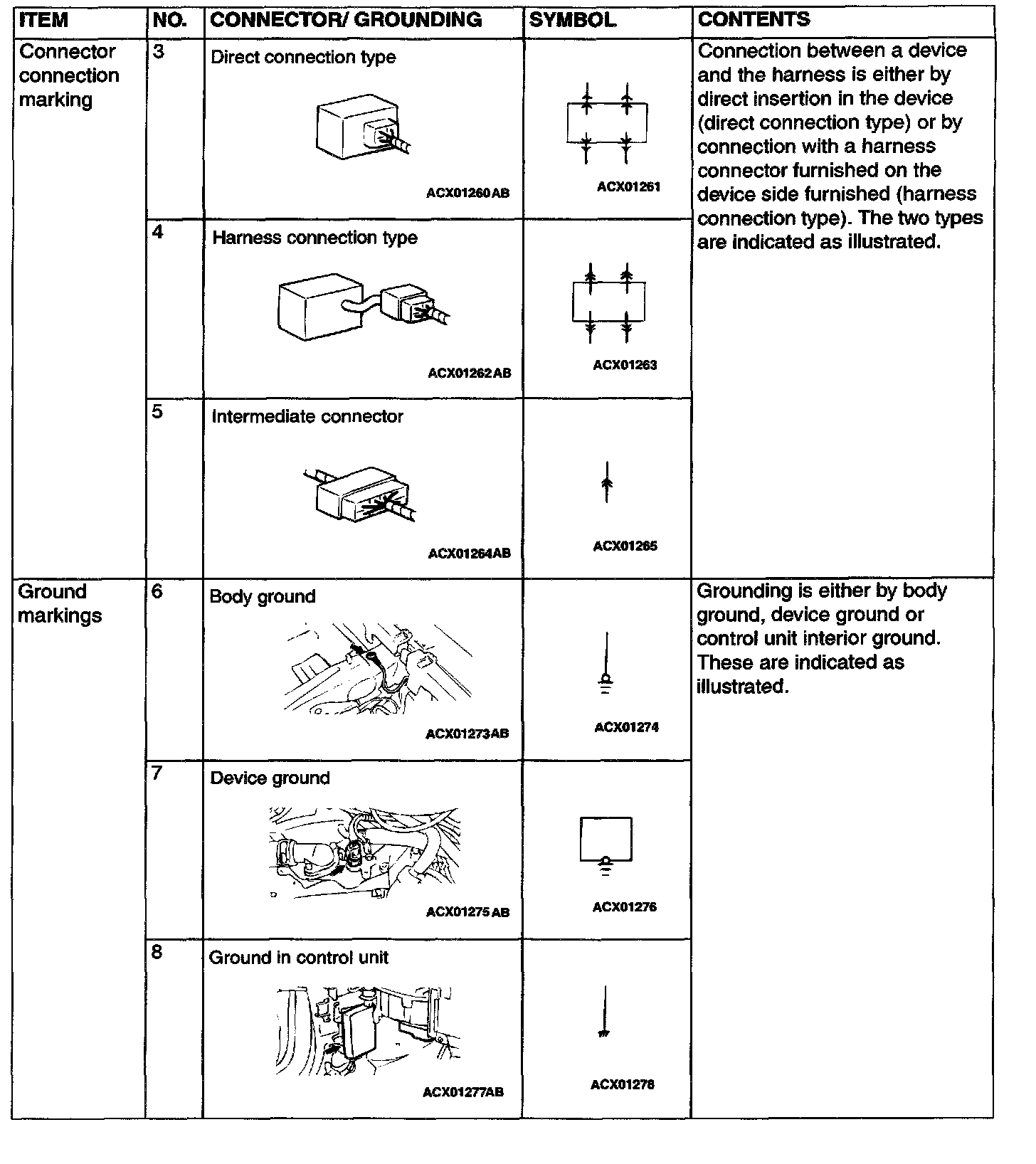

Part 2:
