A - Charts

A-1: Scan Tool MB991502 Communication Is Not Possible.

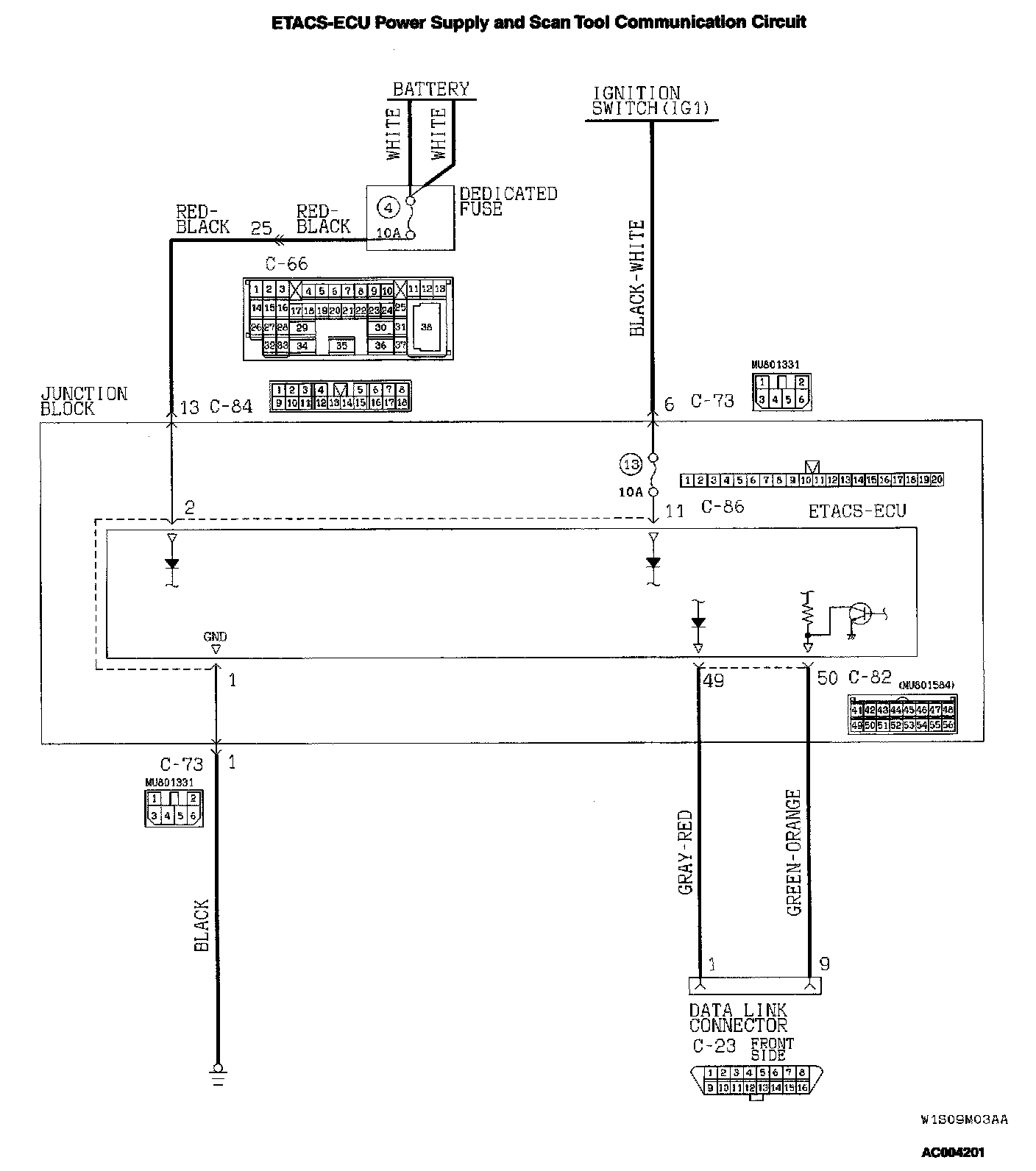

ETACS-ECU Power Supply And Scan Tool Communication Circuit:

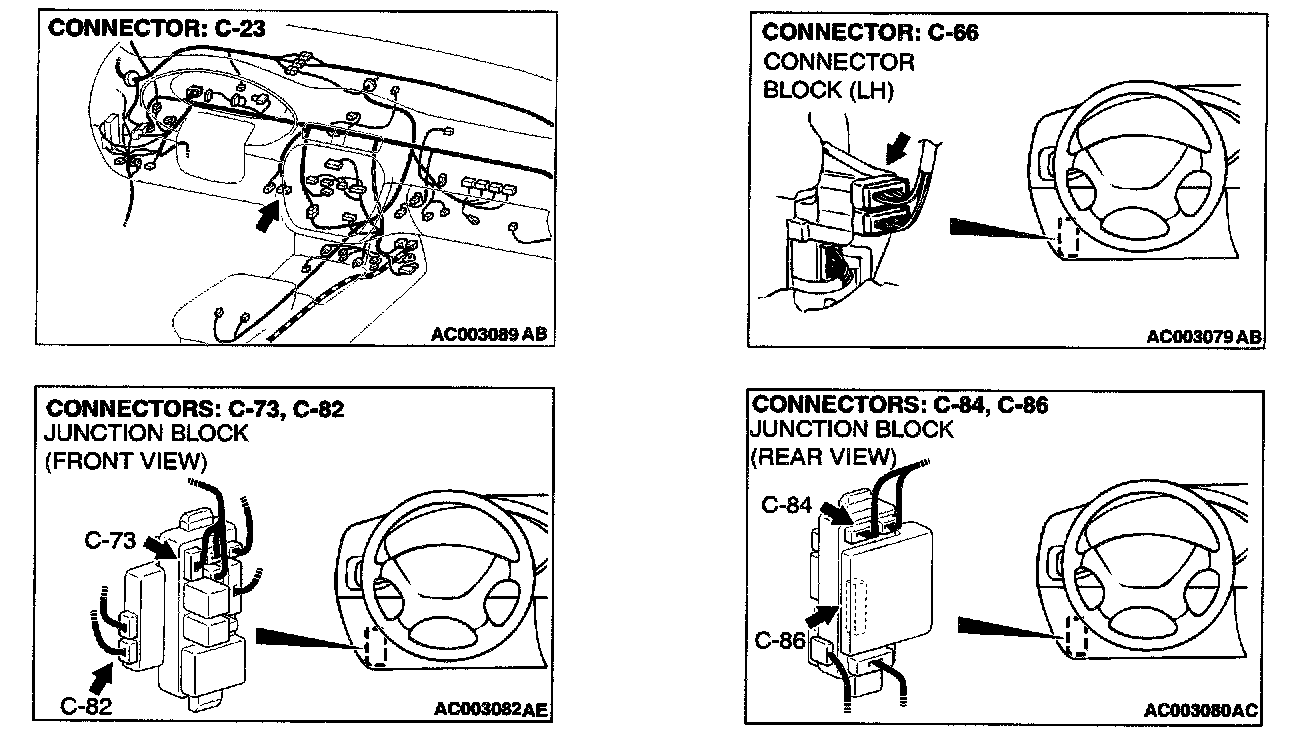

Connectors:

SCAN TOOL MB991502 COMMUNICATION IS NOT POSSIBLE
The ETACS-ECU receives a diagnostic trouble code and switch signals from the data link connector.

TECHNICAL DESCRIPTION (COMMENT)
The harness wires between the ETACS-ECU power supply line or the ETACS-ECU and the data link connector may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the ETACS-ECU
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Test Harness Set
- MB991502: Scan Tool (MUT-II)

STEP 1. Check the communication with other Systems.
Q: Can the scan tool communicate with no systems?

YES: Refer to Computers/Testing/Trouble Code Descriptions.

NO: Can not communicate with SWS only: Go to Step 2.

STEP 2. Check the ignition switch positions.
Q: Can scan tool MB991502 communicate with the ETACS-ECU with the ignition switch at any position other than "ON?"

YES: Go to Step 3.

NO: Check the ETACS-ECU battery circuits. Refer to Inspection Procedure O-1.

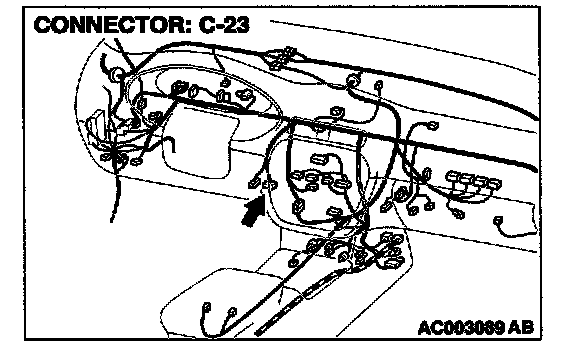

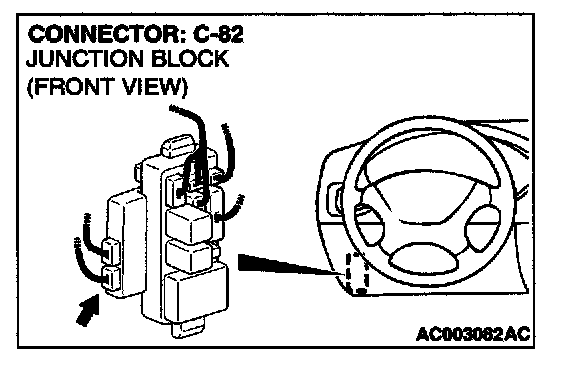

STEP 3. Check data link connector C-23 and ETACS-ECU connector C-82 for damage.
Q: Are data link connector C-23 and ETACS-ECU connector C-82 in good condition?

YES: Go to Step 4.

NO: Repair or replace them. Refer to Harness Connector inspection. Scan tool MB991502 should communicate with the SWS.

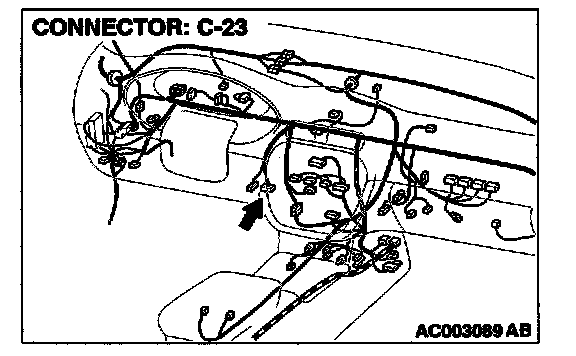

STEP 4. Check the harness wires between data link connector C-23 and ETACS-ECU connector C-82.
Q: Are the harness wires between data link connector C-23 and ETACS-ECU connector C-82 in good condition?

YES: Go to Step 5.

NO: Repair them. Scan tool MB991502 should communicate with the SWS.

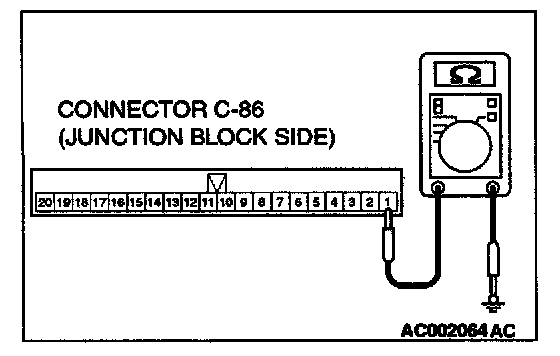

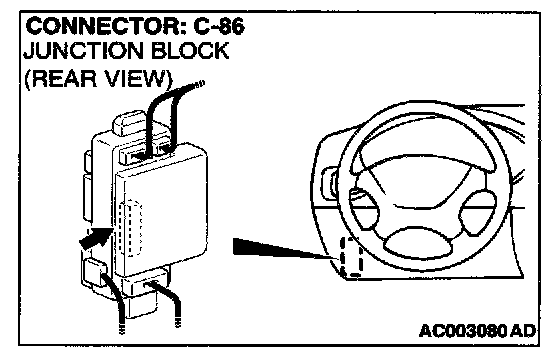

STEP 5. Check the ETACS-ECU ground circuit at the ETACS-ECU connector C-86.
1. Disconnect the ETACS-ECU connector C-86 and measure at the junction block side.




2. Measure the resistance between terminal 1 and ground.

Q: Is the resistance less than 2 ohm?

YES: Replace the ETACS-ECU. Scan tool MB991502 should communicate with the SWS.

NO: Go to Step 6.

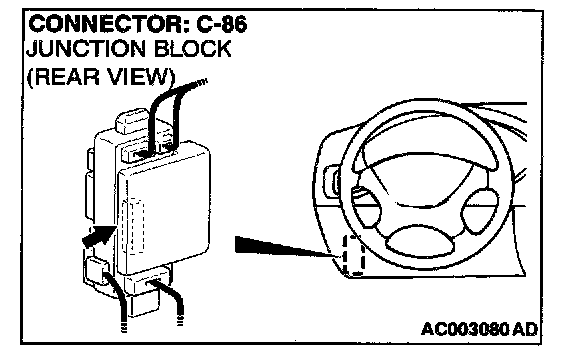

STEP 6. Check the ETACS-ECU connector C-86 for damage.
Q: Is ETACS-ECU connector C-86 in good condition?

YES: Go to Step 7.

NO: Repair or replace it. Refer to Harness Connector Inspection. Scan tool MB991502 should communicate with the SWS.







STEP 7. Check the harness wires between ETACS-ECU connector C-86 and ground.

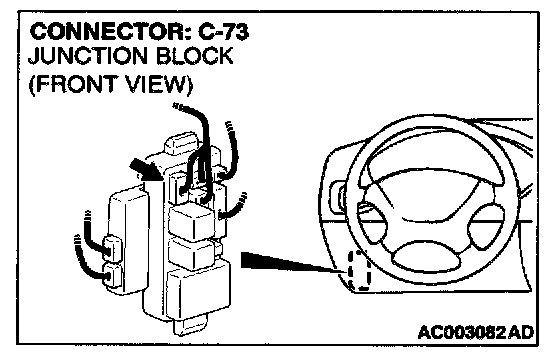

NOTE: After checking junction block connector C-73, check the wires. If junction block connector C-73 is damaged, repair or replace it. Refer to Harness Connector Inspection.

Q: Are the harness wires between ETACS-ECU connector C-86 and ground in good condition?

YES: There is no action to be taken.

NO: Repair them. Scan tool MB991502 should communicate with the SWS.
