C Connector - Dash Panel Harness

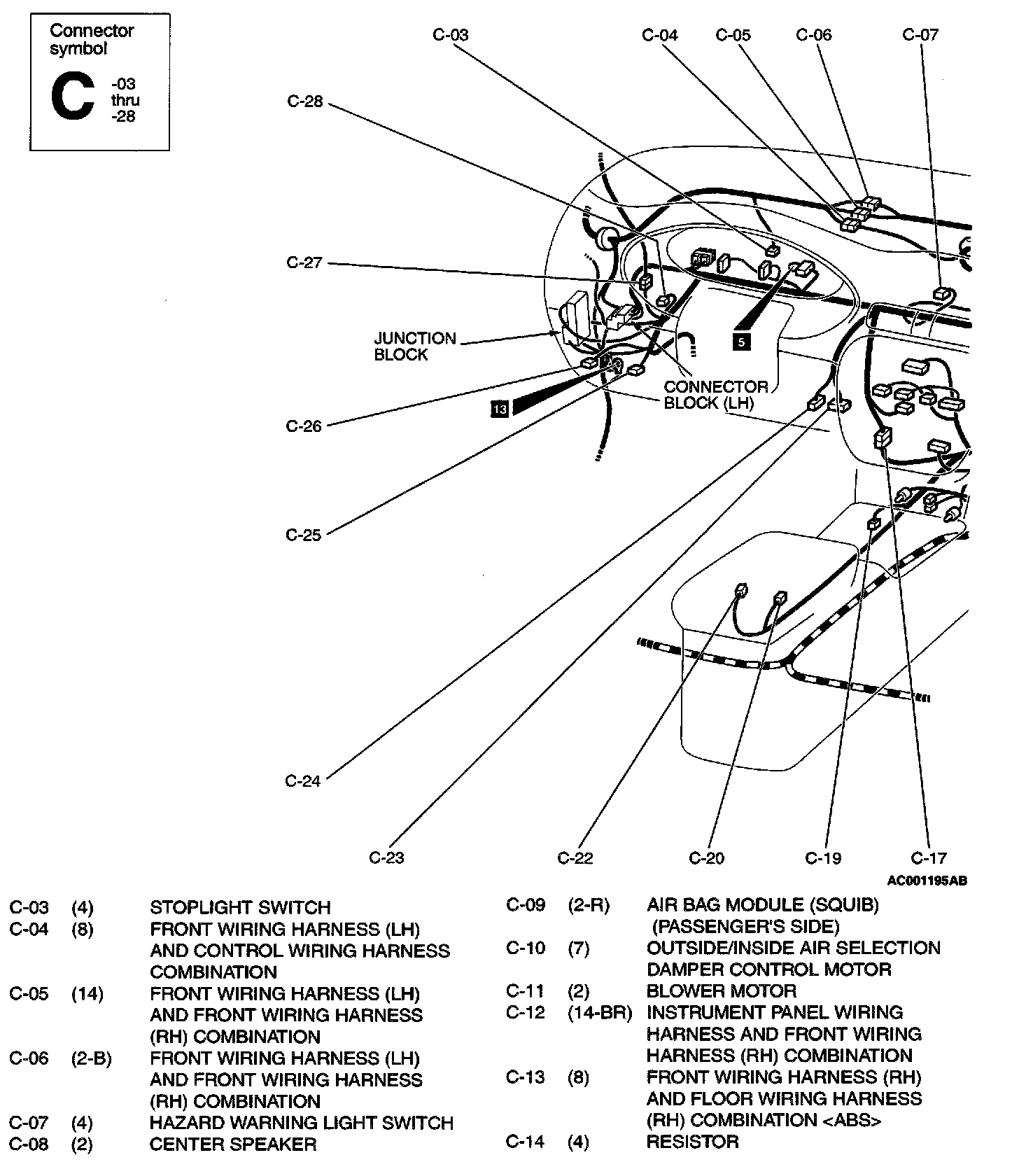

Dash Panel C Connectors (C-03 Thru C-14):

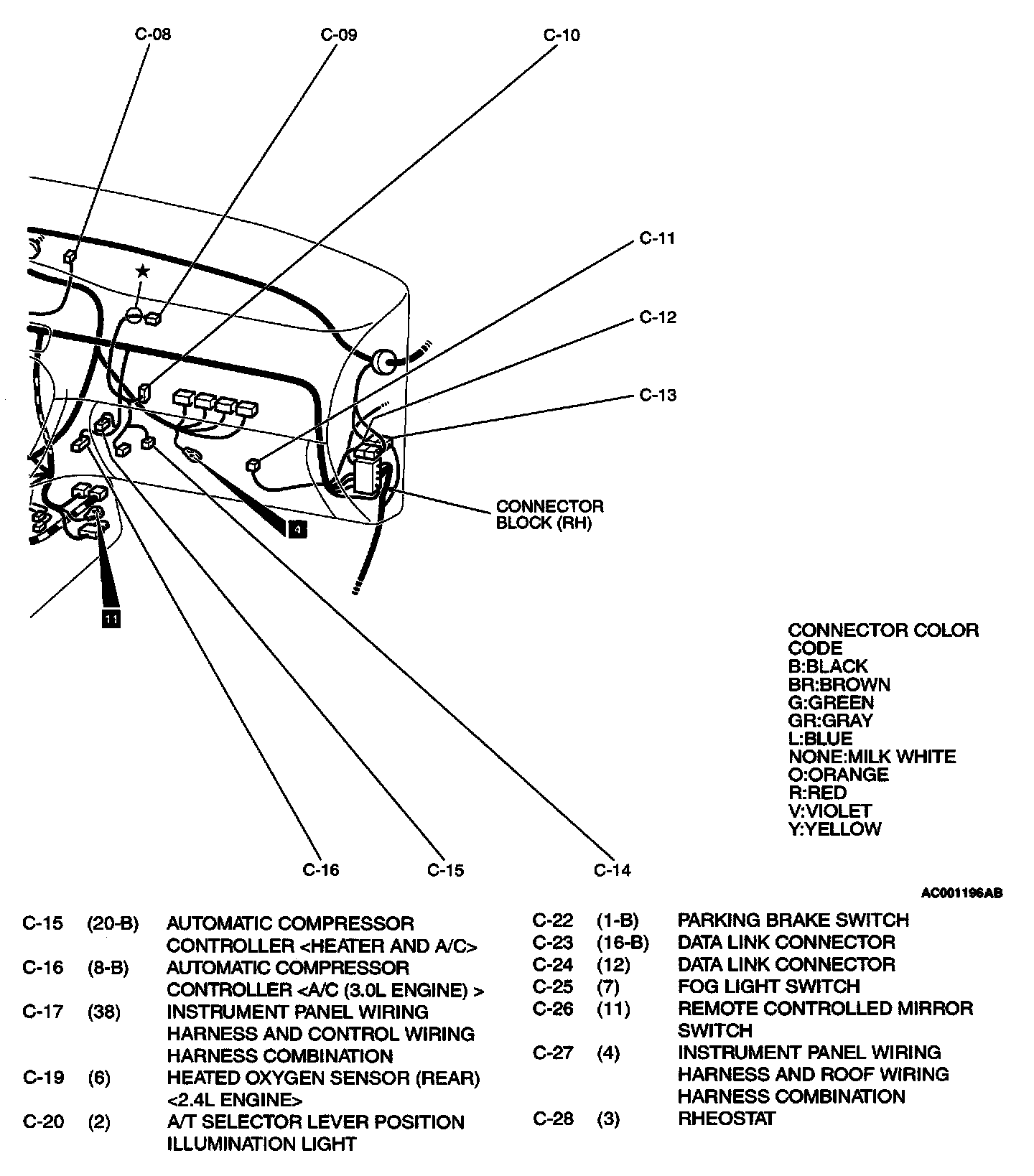

(C-15 Thru C-28):

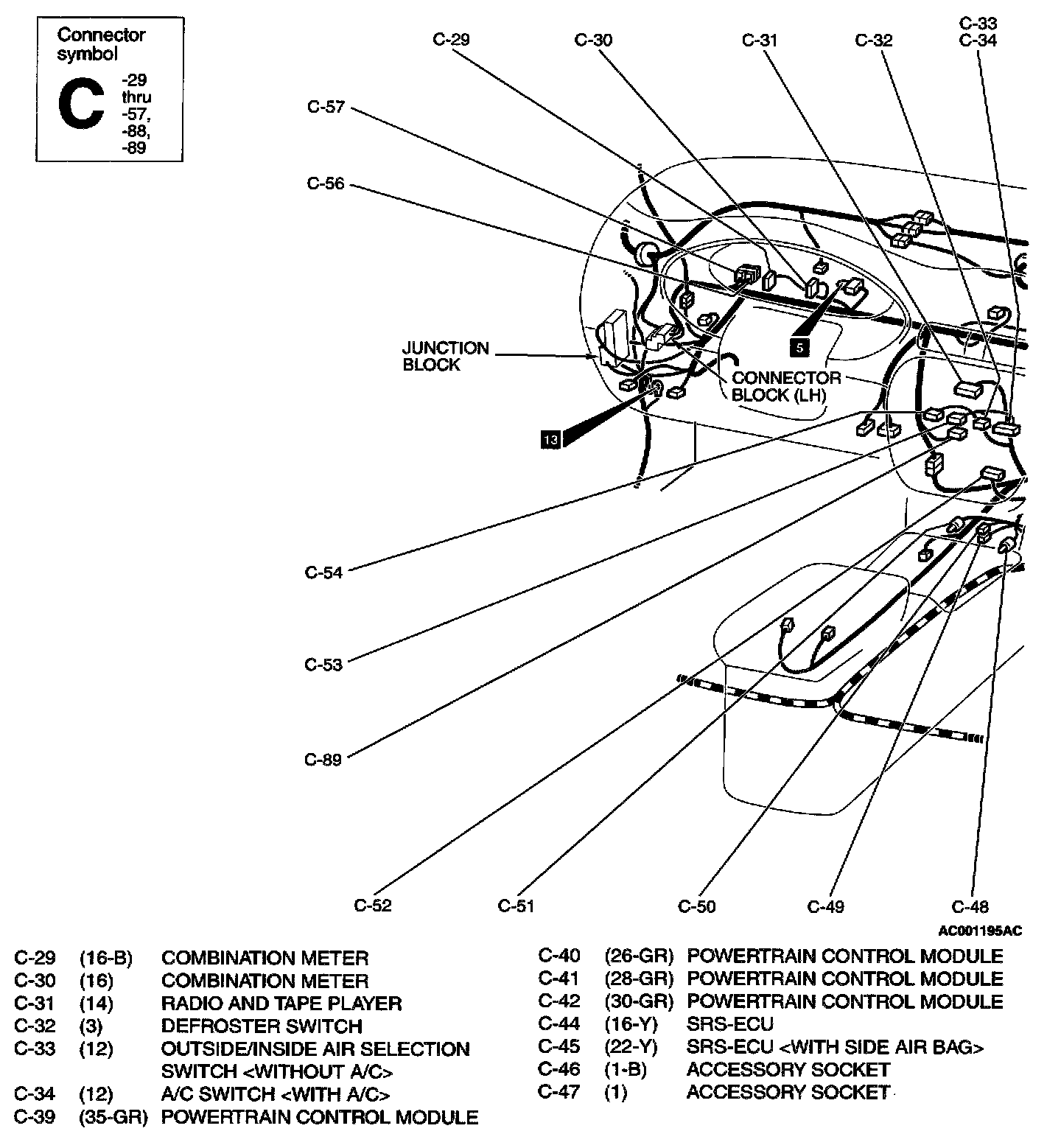

(C-29 Thru C-47):

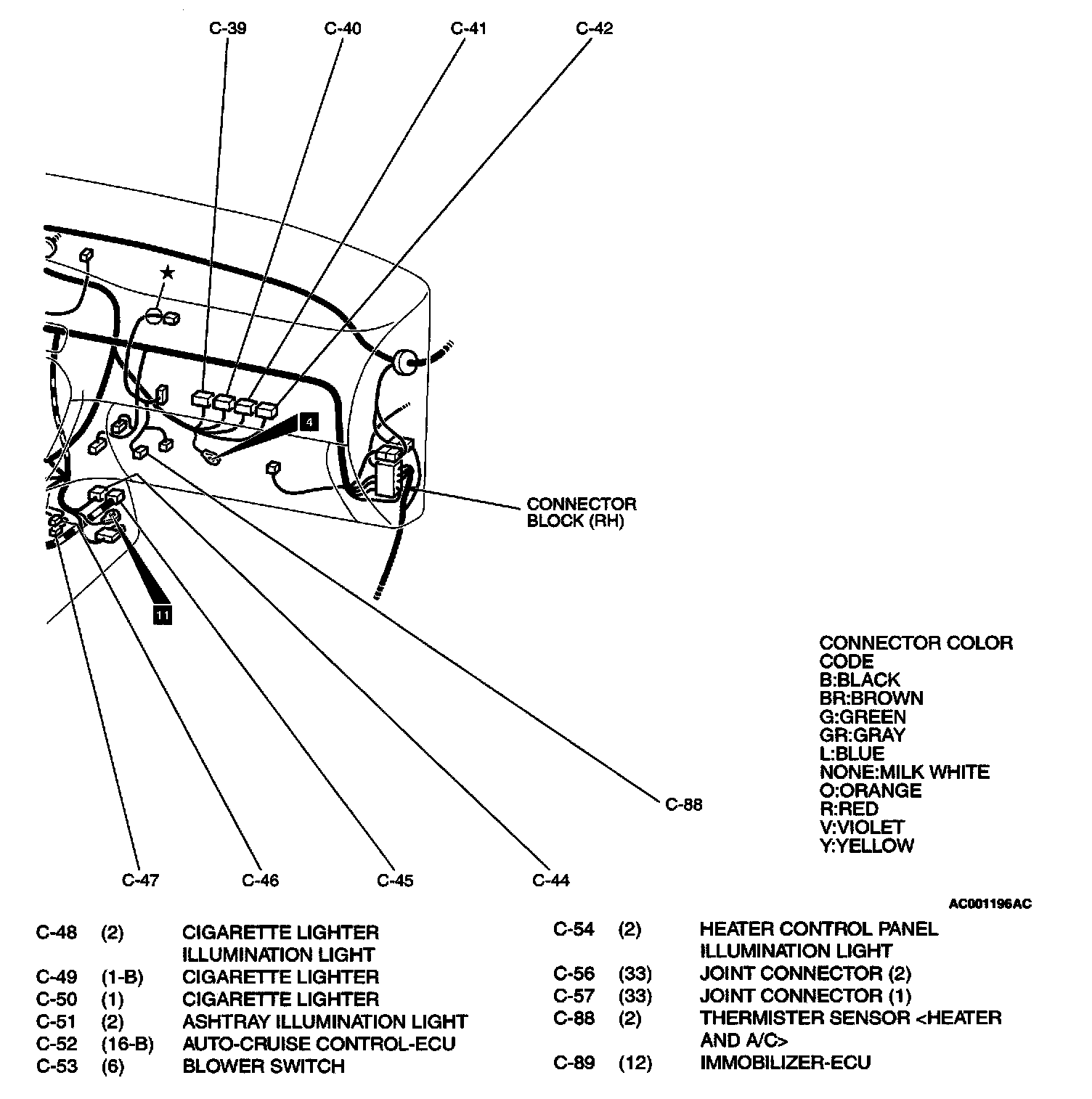

(C-48 Thru C-57 And C-88, C-89):

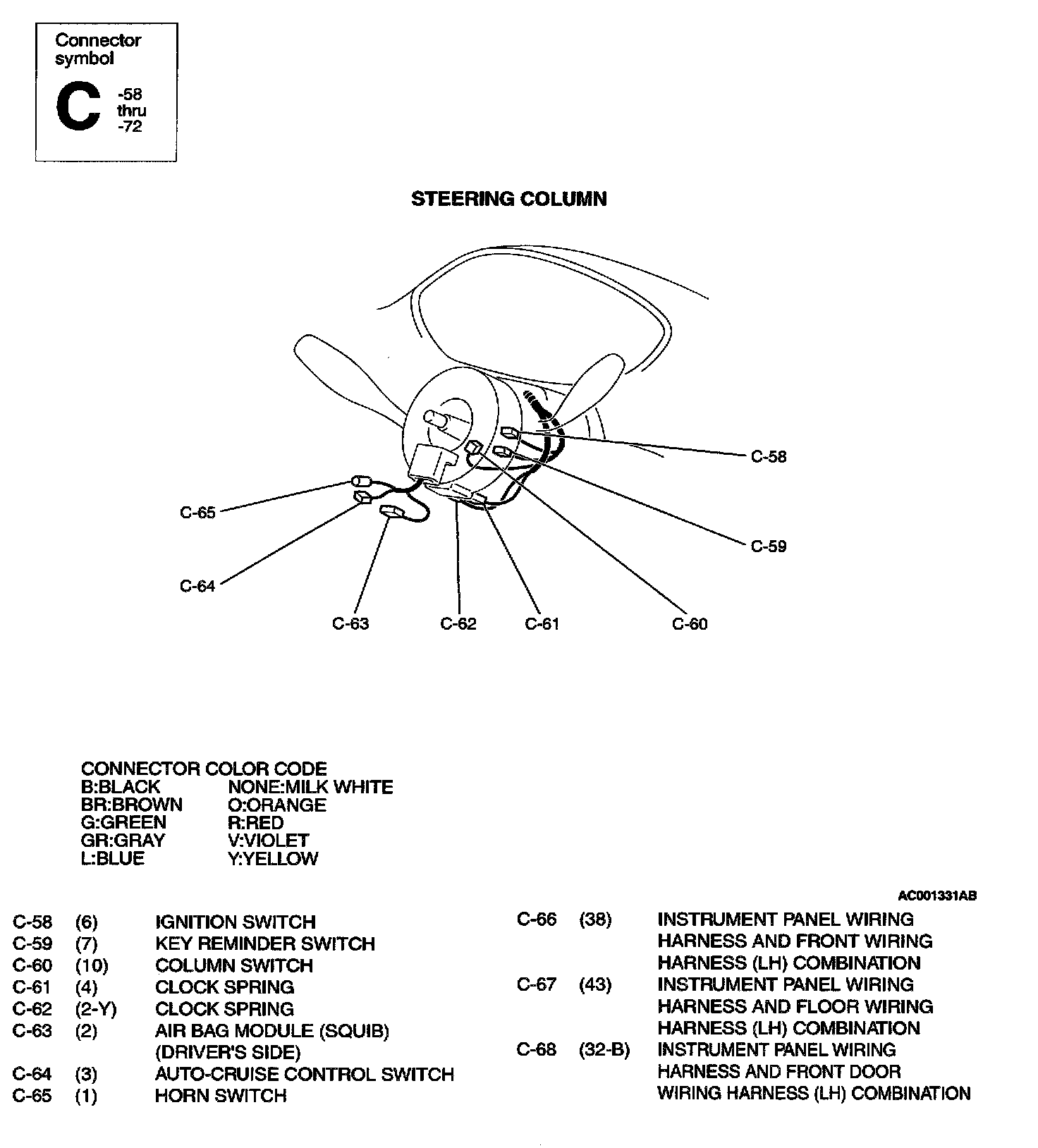

(C-58 Thru C-68):

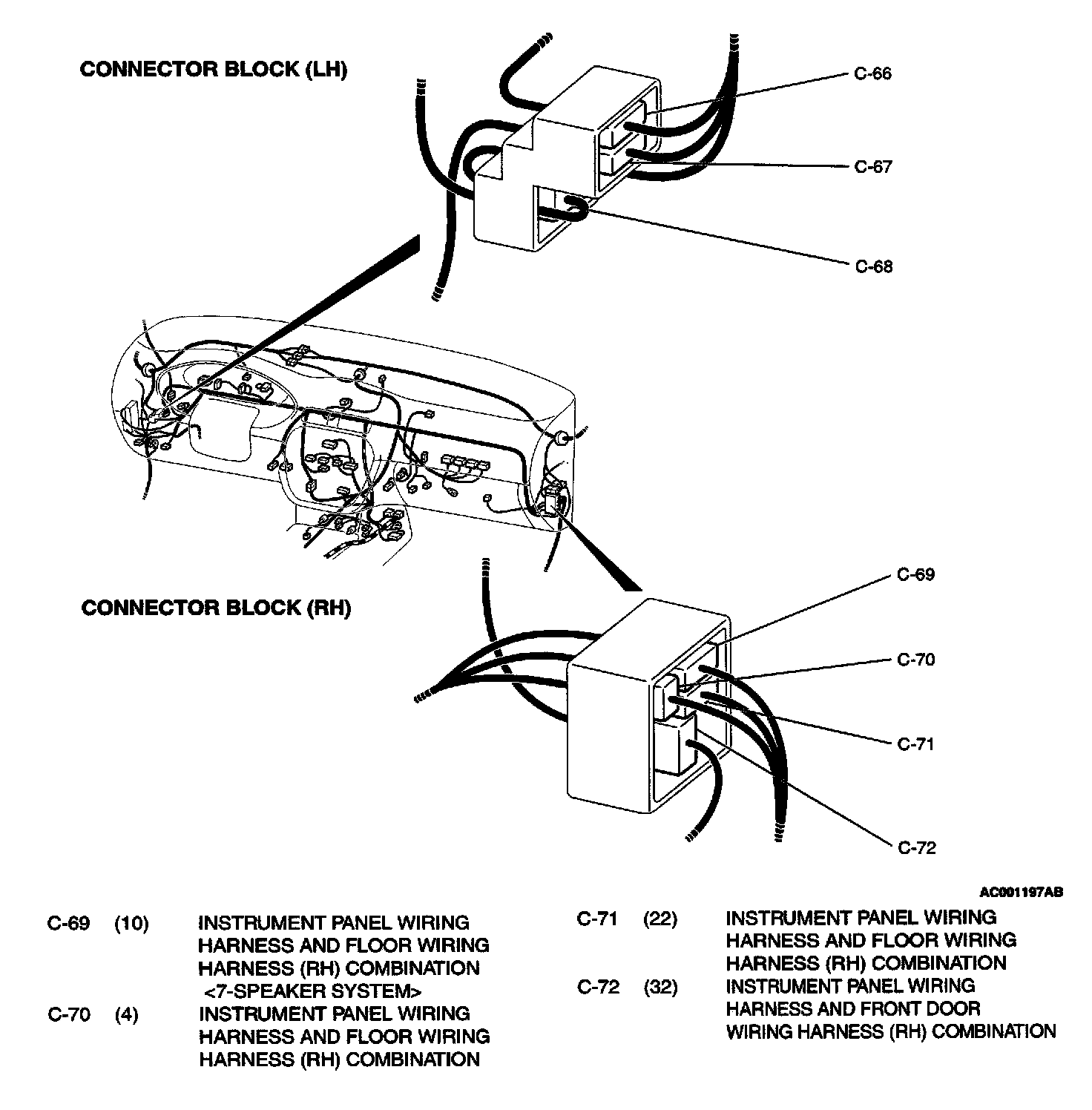

(C-69 Thru C-72):

(C-73 Thru C-79):

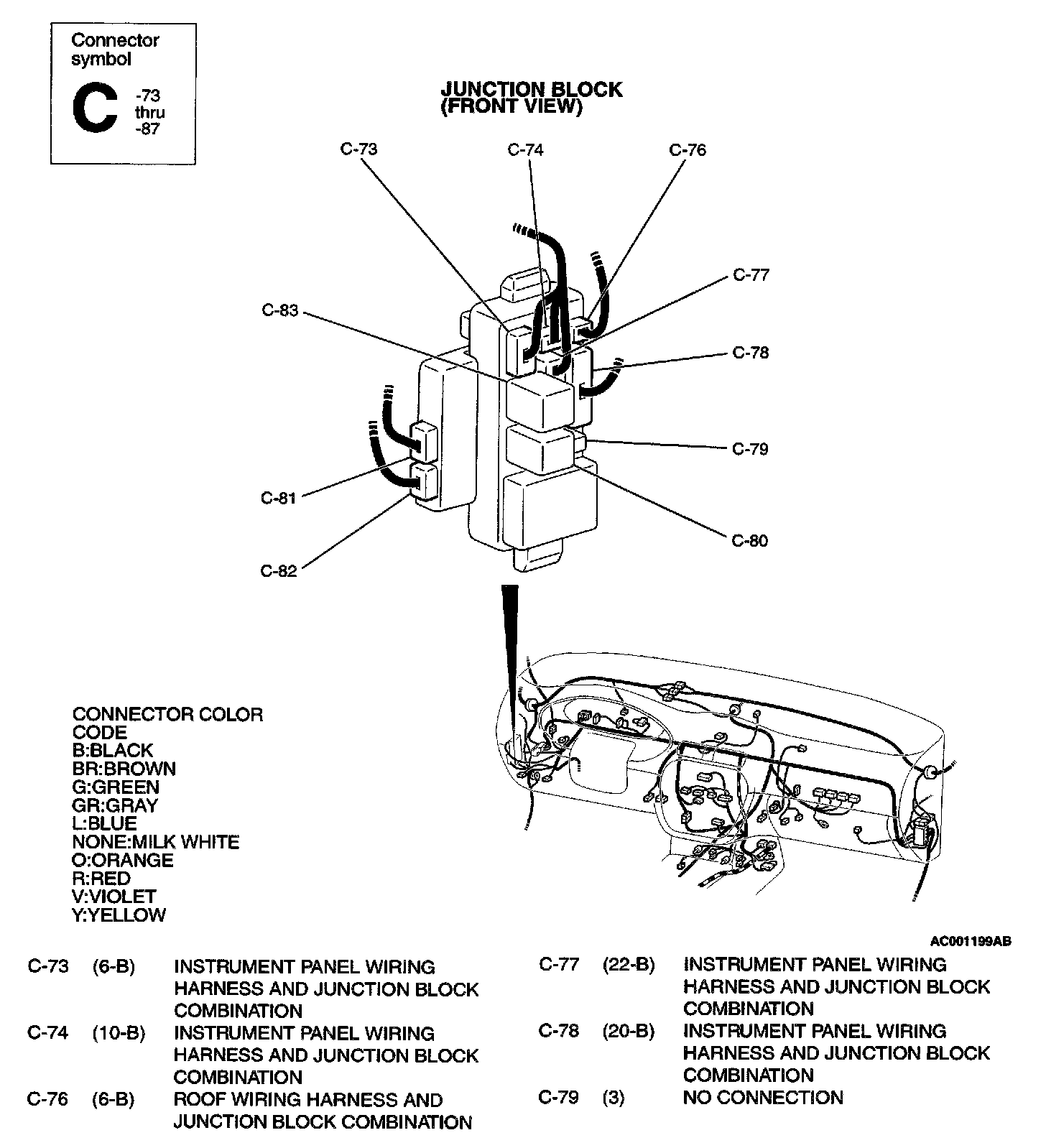

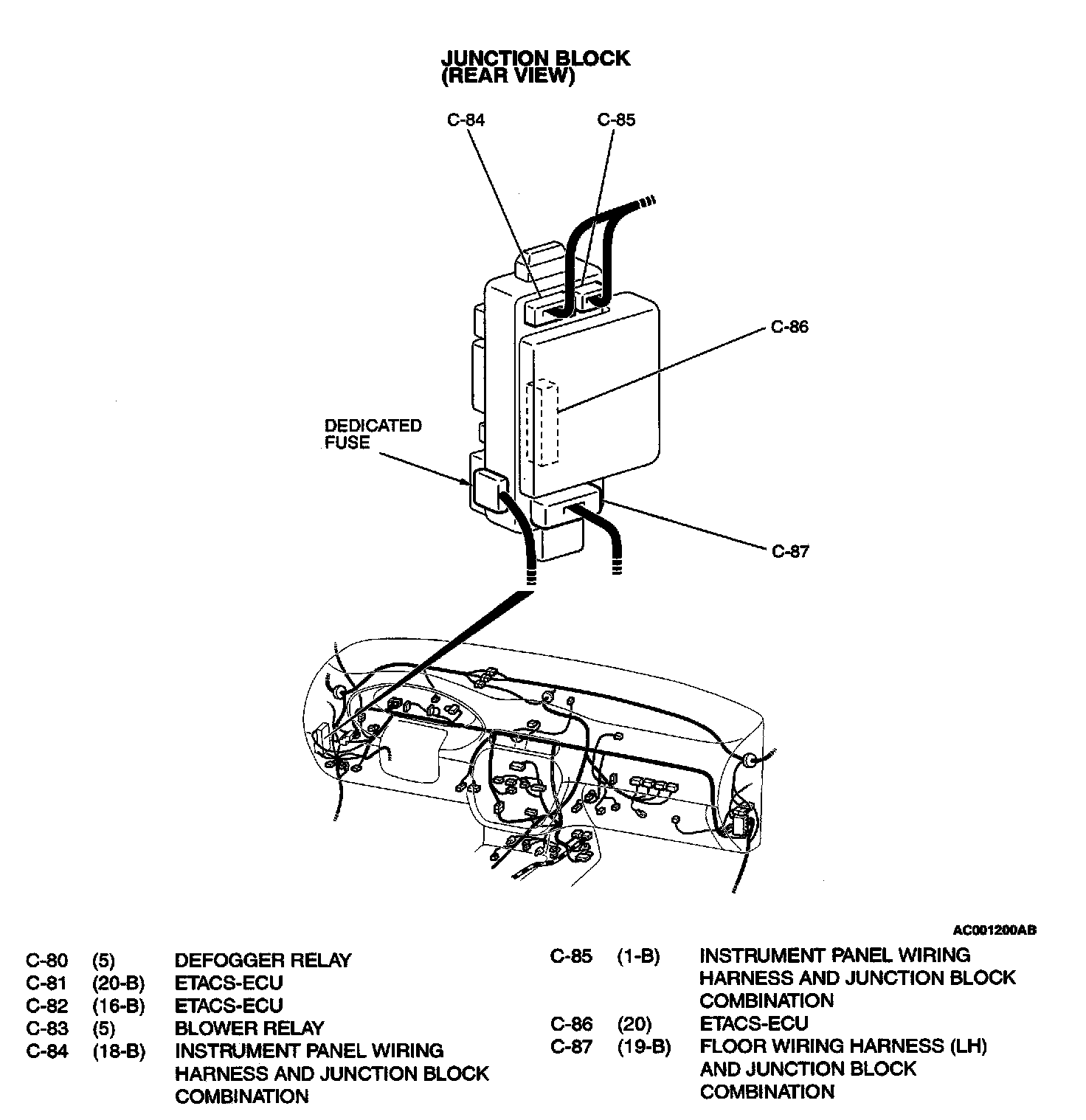

(C-80 Thru C-87):
